Honeywell Voyager MK9520 User Manual

34

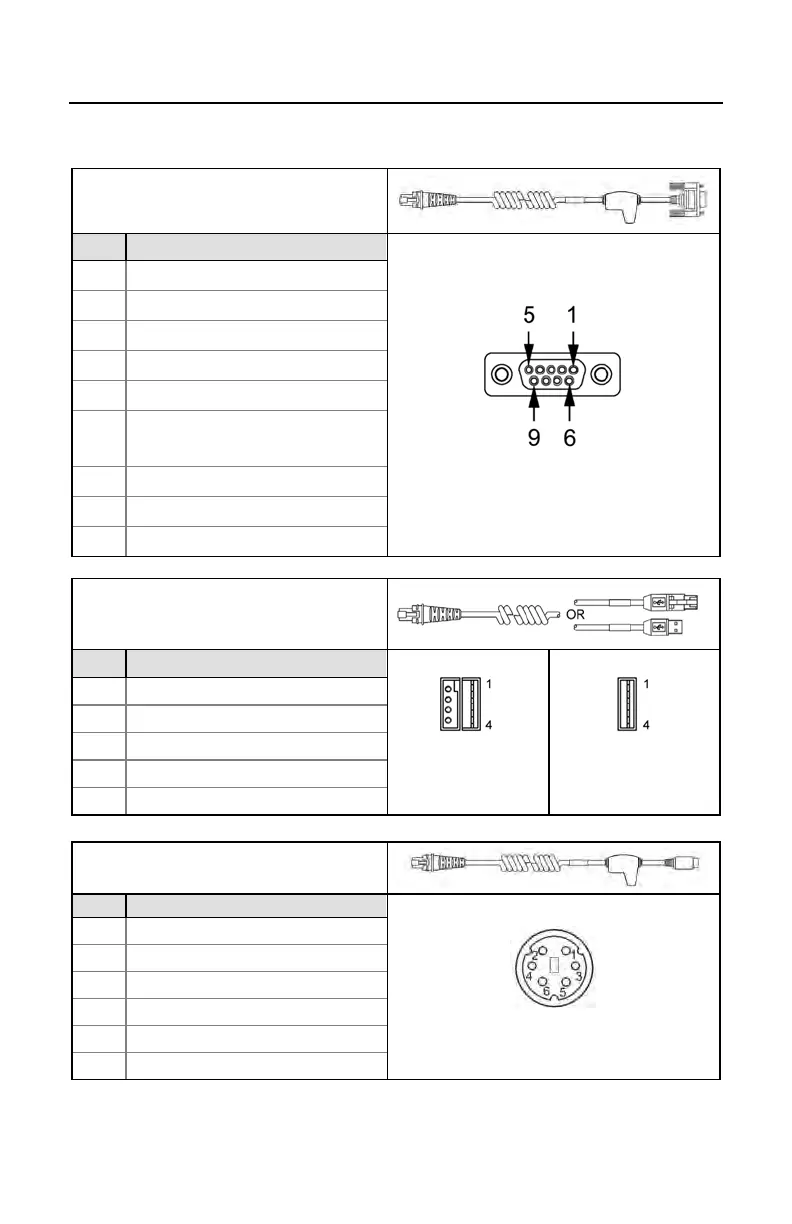

SCANNER AND CABLE TERMINATIONS
Cable Connector Configuration (Host End)
RS232 PowerLink Cable
PN 53-53000x-3
Pin Function
9-Pin Female, D-Type
1 Shield Ground
2 TTL RS232 Transmit Output
3 TTL RS232 Receive Input
4 DTR Input/Light Pen Source
5 Signal Ground
6
Light Pen Data
(DSR Out for -14 interfaces)
7 CTS Input
8 RTS Output
9 +5VDC
USB Cables
PN 53-53213x-N-3, 53-53214x-N-3 or
53-53235x-N-3
Pin Function
Locking
Type A
Non-Locking
Type A
1 PC +5V/V_USB
2 D-
3 D+
4 Ground
Shield Shield
Stand-Alone Keyboard PowerLink
Cable
PN 53-53020x-3
Pin
Function
6-Pin Male Mini-DIN Connector
1 PC Data
2 NC
3 Power Ground
4 +5VDC PC Power to KB
5 PC Clock
6 NC
