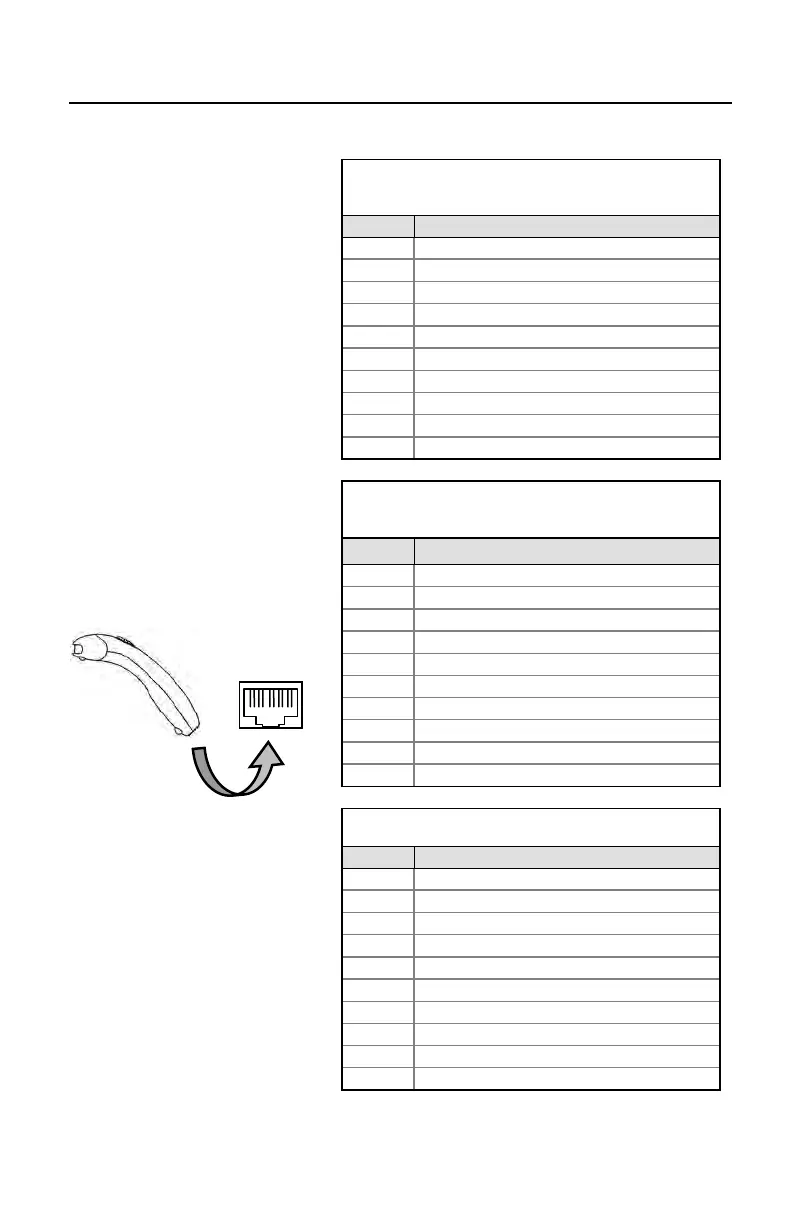

SCANNER AND CABLE TERMINATIONS
Scanner Pinout Connections
The MS9520 and MS9540
scanner interfaces terminate to
a 10-pin modular jack.
The serial number label
indicates the interface enabled
when the scanner is shipped
from the factory.
MS95x0-41
RS232 and Light Pen Emulation
Pin
Function
1
Ground
2
RS232 Transmit Output
3
RS232 Receive Input
4
RTS Output
5
CTS Input
6
DTR Input/LTPN Source
7
Reserved
8
LTPN Data
9
+5VDC
10
Shield Ground
MS95x0-47
Keyboard Wedge and Stand-Alone Keyboard
Pin Function
1
Ground
2
TTL RS232 Transmit Output
3
TTL RS232 Receive Input
4
PC Data
5
PC Clock
6
KB Clock
7
PC +5V
8
KB Data
9
+5VDC
10
Shield Ground
MS95x0-11 RS485
Pin
Function
1
Ground
2
RS232 Transmit Output
3
RS232 Receive Input
4
RTS Output
5
CTS Input
6
DTR Input
7
IBM B-Transmit
8
IBM A+ Receive
9
+5VDC
10
Shield Ground
