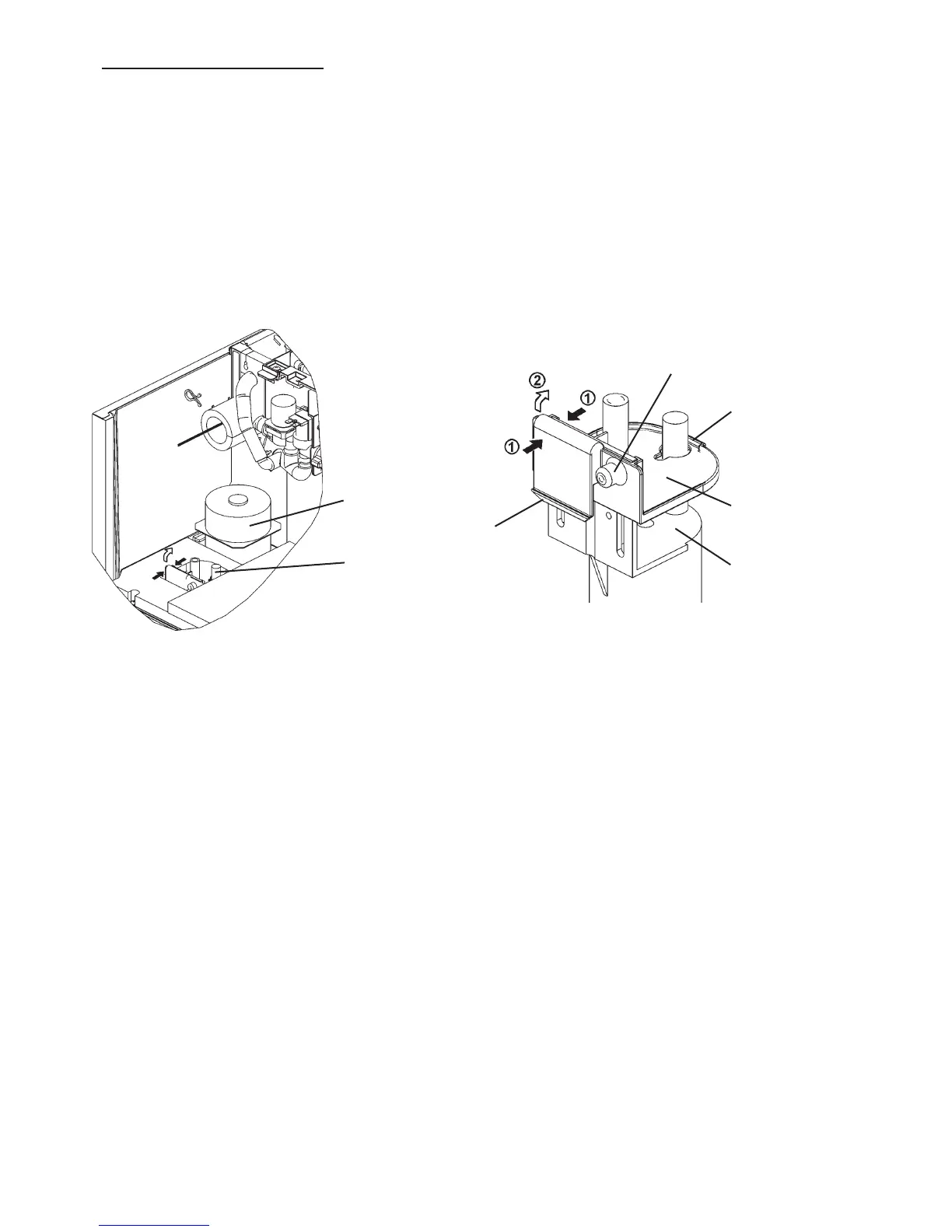

Fig. 9
Pump Motor
Float Switch
Hook A
Hook B
Float Switch
Bracket
Screw
Pinch
Pull
KM-160BAJ, KM-160BWJ
1) Remove the air ¿ lter. Move the control switch to the “OFF” position, then unplug the
appliance.
2) Remove the top panel and the rear panel.
3) Disconnect the FS lead (gray) connector.
4) The FS is located behind the pump motor. Pinch where indicated (1) and pull it
forward diagonally (2) to unhook the FS.
5) Remove the screw securing the FS to the bracket.
6) Remove the À oat switch. Remove the retainer rod from the bottom of FS housing,
then remove the float. Be careful not to bend the retainer rod excessively when
removing it.
7) Wipe down FS housing, shaft, and float with mixture of 1 part Hoshizaki “Scale
Away” and 25 parts warm water. Rinse the parts thoroughly with clean water.
8) Reassemble FS assembly.
9) Attach the FS to the bracket rail. See Fig. 10. Secure it with the screw by ¿ tting the
rounded end of the slot to the screw hole.
To Next Page
