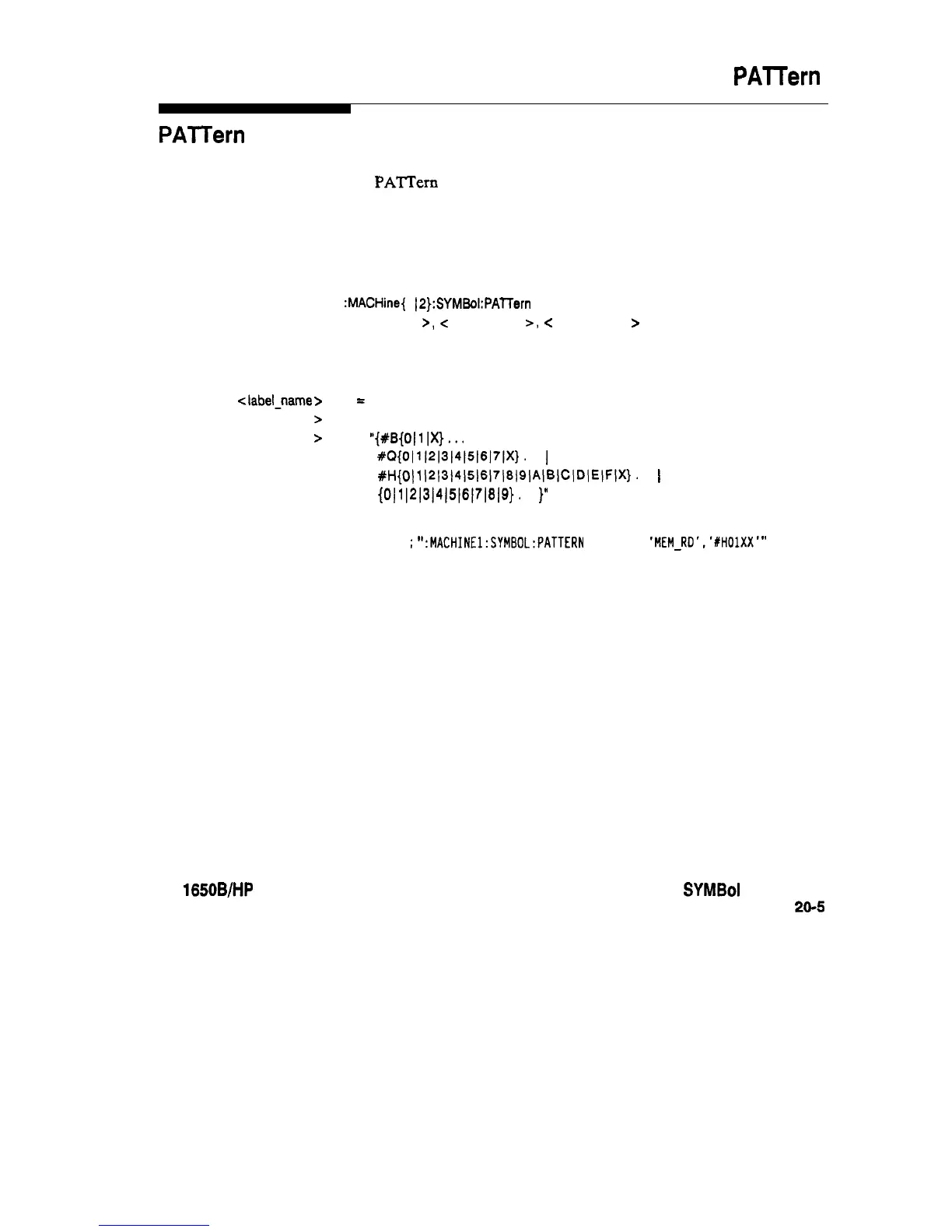

PAlTern
PAlTern
command
The PATTern command allows you to create a pattern symbol for the
specified label.
Because don’t cares (X) are allowed in the pattern value, it must always
be expressed as a string. You may still use different bases, though don’t
cares cannot be used in a decimal number.
Command Syntax: :MACHine{ 1 IP}:SYMBol:PATTern
c label-name >, c symbol-name z=, -z pattern-value >
where:
<label-name > :: = string of up to 6 alphanumeric characters
<symbol-name > :: = string of up to 16 alphanumeric characters
<pattern-value > ::= “{#B{O/lIX)... 1
#Q{O~l/2~3~4~5~6~7)X}. . . I
#H(O)1 1213141516171819jAIBICJDJEJFIX). . . 1
{O/l ~2~3~4(5~6~7~8~9}. . . }”
Example:
OUTPUT XXX ; ” :MACtlINEl:SYMBOL:PATTERN ‘STAT’, ‘MEM-RD’.‘#HOlXX’”
HP 1650B/HP 16518
Programming Reference
SYMBol Subsystem
20-5
