Access panel
1. Prepare the computer for disassembly (Preparation for disassembly on page 16).

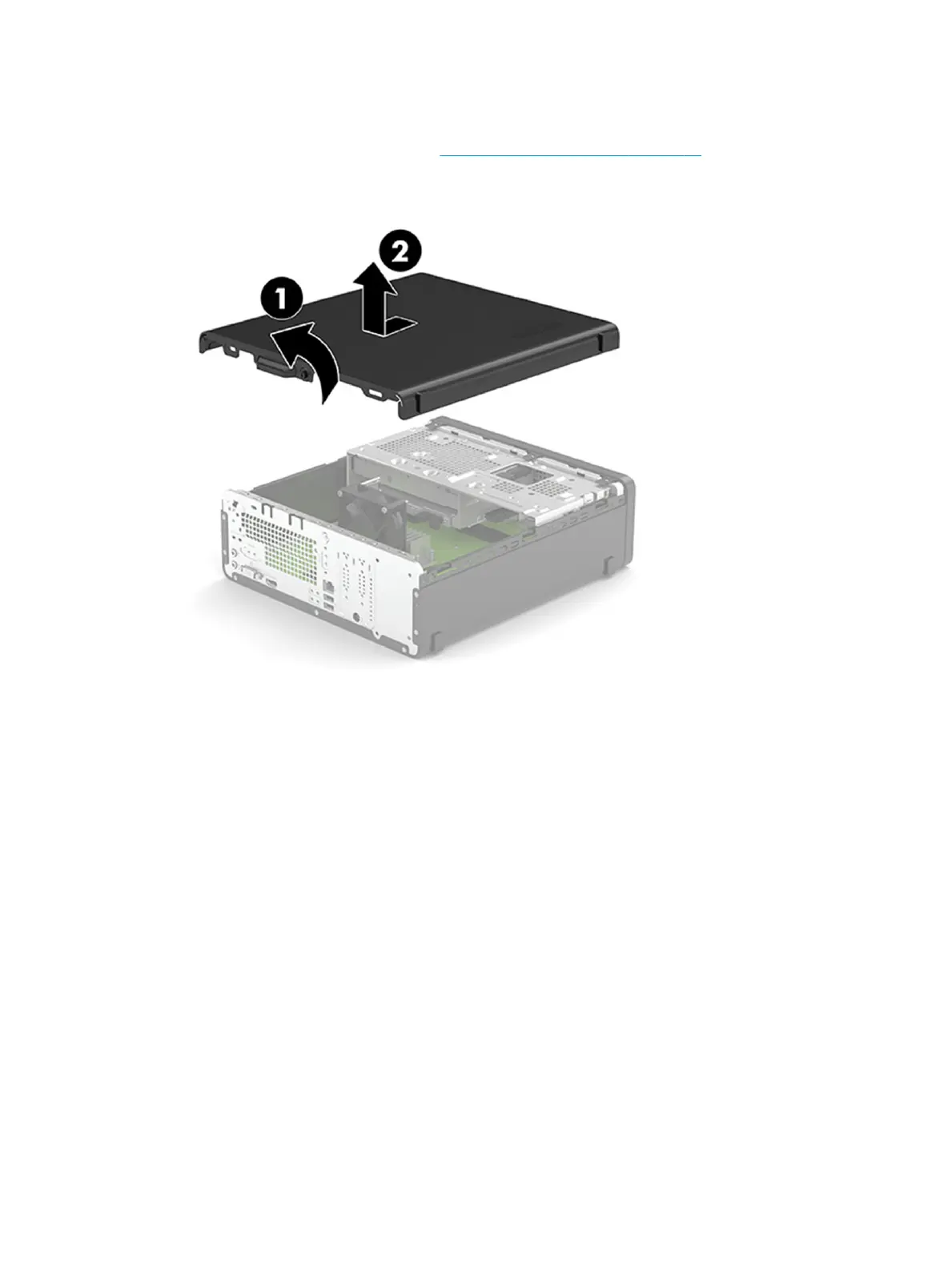

2. Loosen the captive Phillips screw (1), slide the access panel toward the back of the computer, and then
lift it o (2).
To install the access panel, reverse the removal procedure.
18 Chapter 4 Removal and replacement procedures
