WLAN module
The WLAN module is located under the drive cage.
For a list of available WLAN modules, see Computer major components on page 4.
1. Prepare the computer for disassembly (Preparation for disassembly on page 16).
2. Remove the access panel (Access panel on page 18).
3. Remove the optical drive (Optical drive on page 22).
4. Remove the front bezel (Front bezel on page 26).
5. Remove the drive cage (Hard drive on page 24).

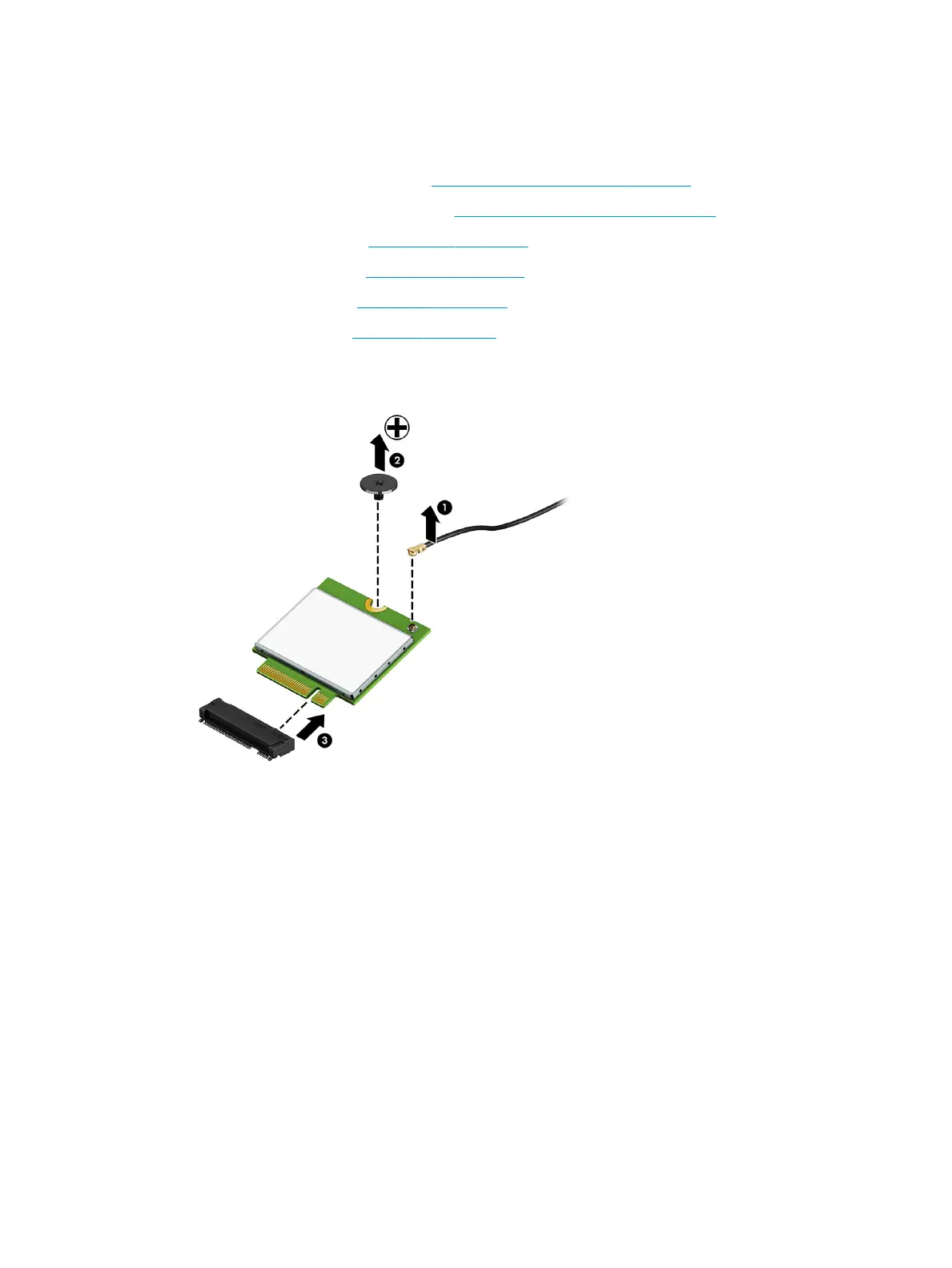

6. Disconnect the antenna cable from the module (1).
7. Remove the Phillips M2.0 × 3.0 screw (2), and then pull the module out of the socket (3).
To install the WLAN module, reverse the removal procedures.
WLAN module 27
