Antenna cable
The wireless antenna cable routes along the bottom of the computer chassis.
1. Prepare the computer for disassembly (Preparation for disassembly on page 16).
2. Remove the optical drive (Optical drive on page 22).
3. Remove the access panel (Access panel on page 18).
4. Remove the front bezel (Front bezel on page 26).
5. Remove the drive cage (Hard drive on page 24).
6. Disconnect the antenna cable from the WLAN module (WLAN module on page 27).

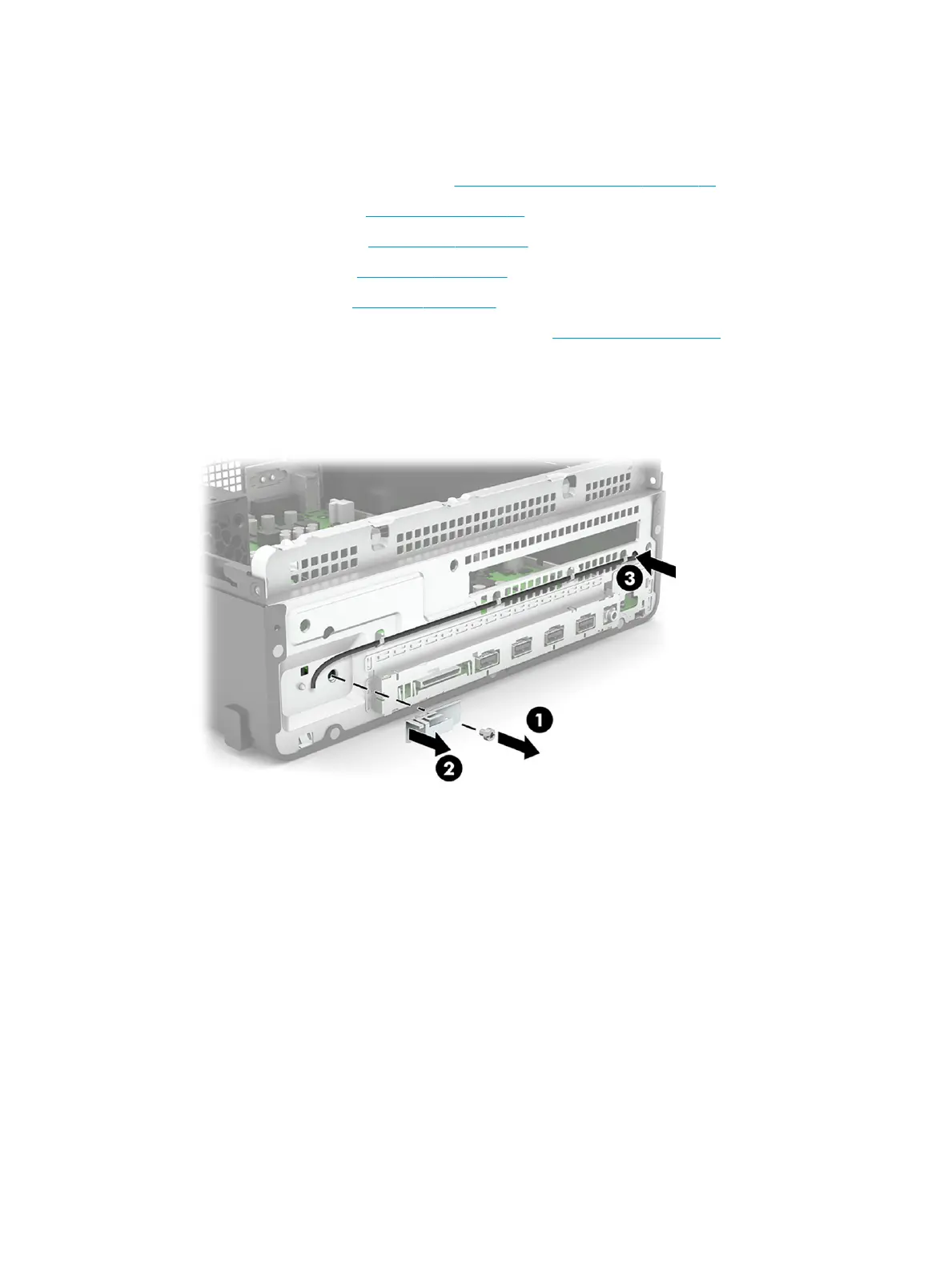

7. Remove the Torx screw (1) that secures the antenna to the front of the chassis, and then remove the
antenna from the chassis (2).
8. Remove the cable from the clips, and then pull the cable out through the hole on the right side of the
front of the chassis (3).
To install the antenna cable, reverse the removal procedures.
Antenna cable 39
