Fan duct
The fan duct sits on the fan sink and is secured to the fan sink with tabs.
1. Prepare the computer for disassembly (Preparation for disassembly on page 16).
2. Remove the access panel (Access panel on page 18).
3. Remove the power supply cable from the clips on the duct.

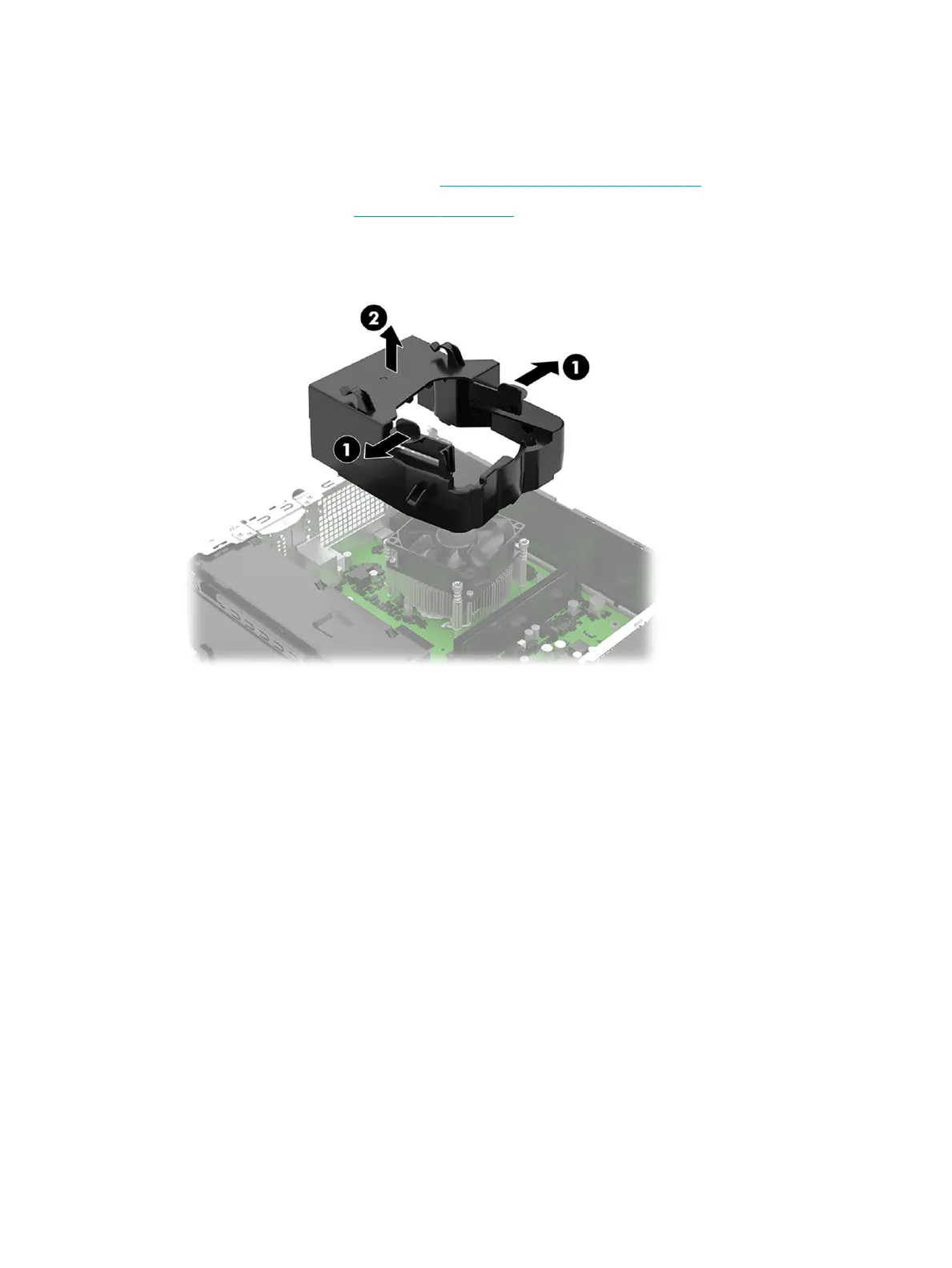

4. Pull the tabs away from each other (1), and then lift the duct o the fan sink (2).
To install the fan duct, reverse the removal procedures.
