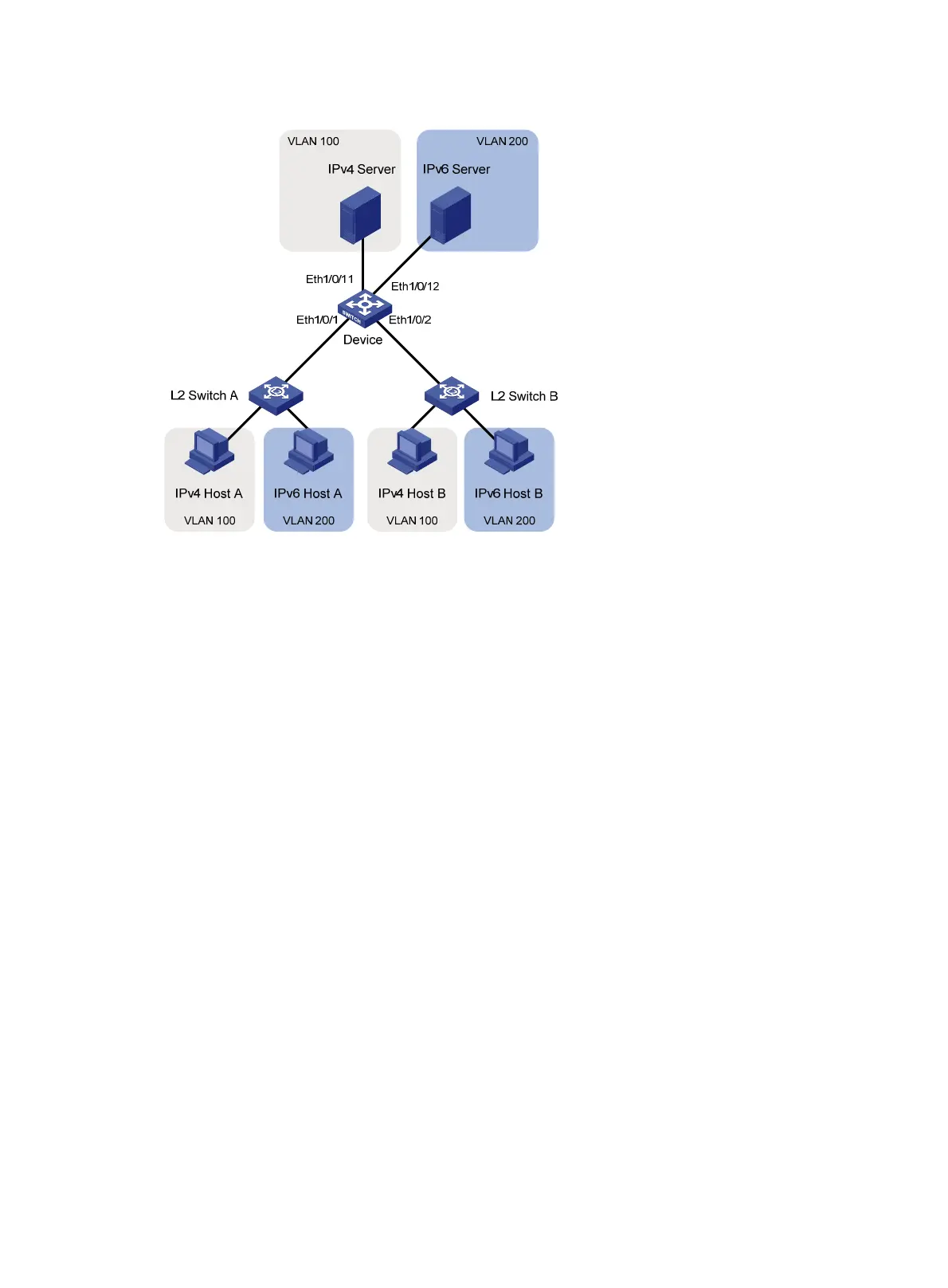

Figure 37 Network diagram

Configuration consideration

Create VLANs 100 and 200. Associate VLAN 100 with IPv4, and associate VLAN 200 with IPv6.

Configure protocol-based VLANs to isolate IPv4 traffic and IPv6 traffic at Layer 2.

Configuration procedure

1. Configure Device:

# Create VLAN 100, and assign port Ethernet 1/0/11 to VLAN 100.

<Device> system-view

[Device] vlan 100

[Device-vlan100] description protocol VLAN for IPv4

[Device-vlan100] port ethernet 1/0/11

[Device-vlan100] quit

# Create VLAN 200, and assign port Ethernet 1/0/12 to VLAN 200.

[Device] vlan 200

[Device-vlan200] description protocol VLAN for IPv6

[Device-vlan200] port ethernet 1/0/12

# Create an IPv6 protocol template in the view of VLAN 200, and create an IPv4 protocol

template in the view of VLAN 100.

[Device-vlan200] protocol-vlan 1 ipv6

[Device-vlan200] quit

[Device] vlan 100

[Device-vlan100] protocol-vlan 1 ipv4

[Device-vlan100] quit

# Configure port Ethernet 1/0/1 as a hybrid port that forwards packets of VLANs 100 and 200

untagged.

[Device] interface ethernet 1/0/1

[Device-Ethernet1/0/1] port link-type hybrid

[Device-Ethernet1/0/1] port hybrid vlan 100 200 untagged
