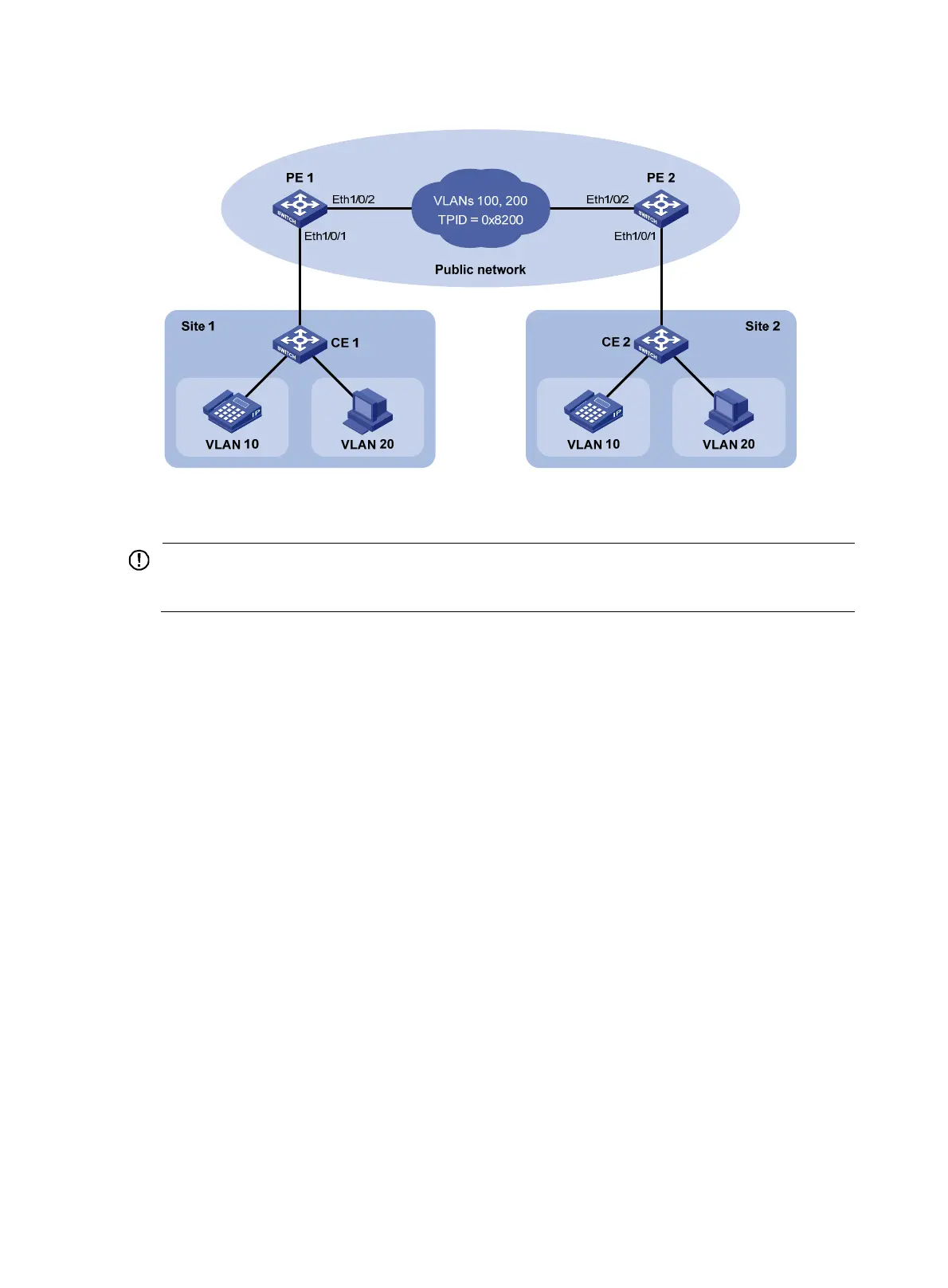

Figure 53 Network diagram

Configuration procedure

IMPORTANT:

Make sure that you have configured the devices in the service provider network to allow QinQ

packets to pass through.

1. Configure PE 1:

{ Configure Ethernet 1/0/1:

# Configure Ethernet 1/0/1 as a hybrid port to permit frames of VLAN 100 and VLAN 200 to

pass through untagged.

<PE1> system-view

[PE1] interface ethernet 1/0/1

[PE1-Ethernet1/0/1] port link-type hybrid

[PE1-Ethernet1/0/1] port hybrid vlan 100 200 untagged

# Configure the port to tag VLAN 10 frames with outer VLAN ID 100.

[PE1-Ethernet1/0/1] qinq vid 100

[PE1-Ethernet1/0/1-vid-100] raw-vlan-id inbound 10

[PE1-Ethernet1/0/1-vid-100] quit

# Configure the port to tag VLAN 20 frames with outer VLAN ID 200.

[PE1-Ethernet1/0/1] qinq vid 200

[PE1-Ethernet1/0/1-vid-200] raw-vlan-id inbound 20

[PE1-Ethernet1/0/1-vid-200] quit

[PE1-Ethernet1/0/1] quit

{ Configure Ethernet 1/0/2:

# Configure Ethernet 1/0/2 as a trunk port and assign it to VLAN 100 and VLAN 200.

[PE1] interface ethernet 1/0/2

[PE1-Ethernet1/0/2] port link-type trunk

[PE1-Ethernet1/0/2] port trunk permit vlan 100 200

# Set the TPID in the outer VLAN tags to 0x8200.

[PE1-Ethernet1/0/2] quit
