HP
3325B

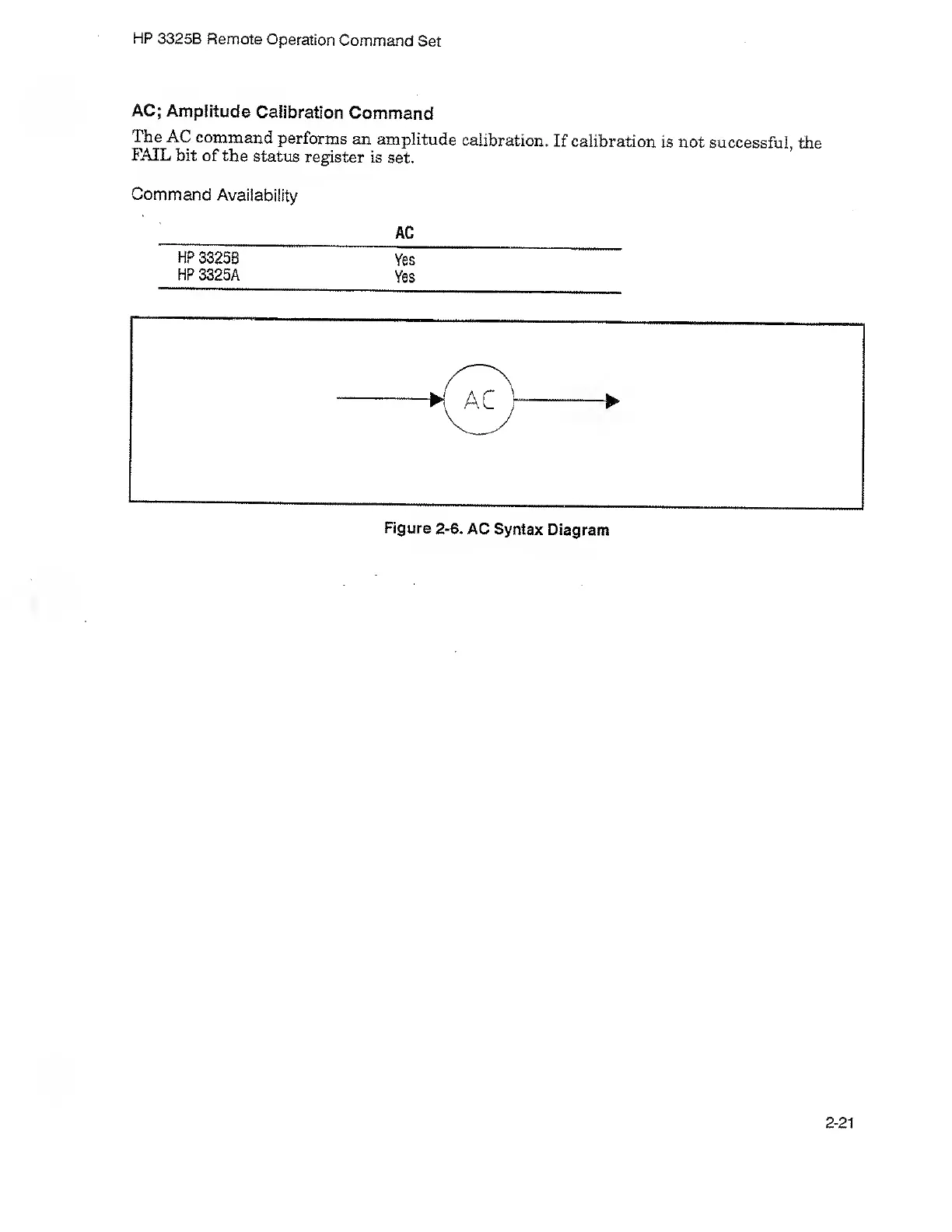

Remote
Operation
Command
Set
AC;
Amplitude
Calibration
Command
The
AC
command
performs
an
amplitude
calibration.
If
calibration
is
not
successful,
the
FAIL
bit
of
the
status
register
is
set.
Command
Availability
AC
HP
3325B
Yes
HP
3325A
Yes
2-21
64
66
