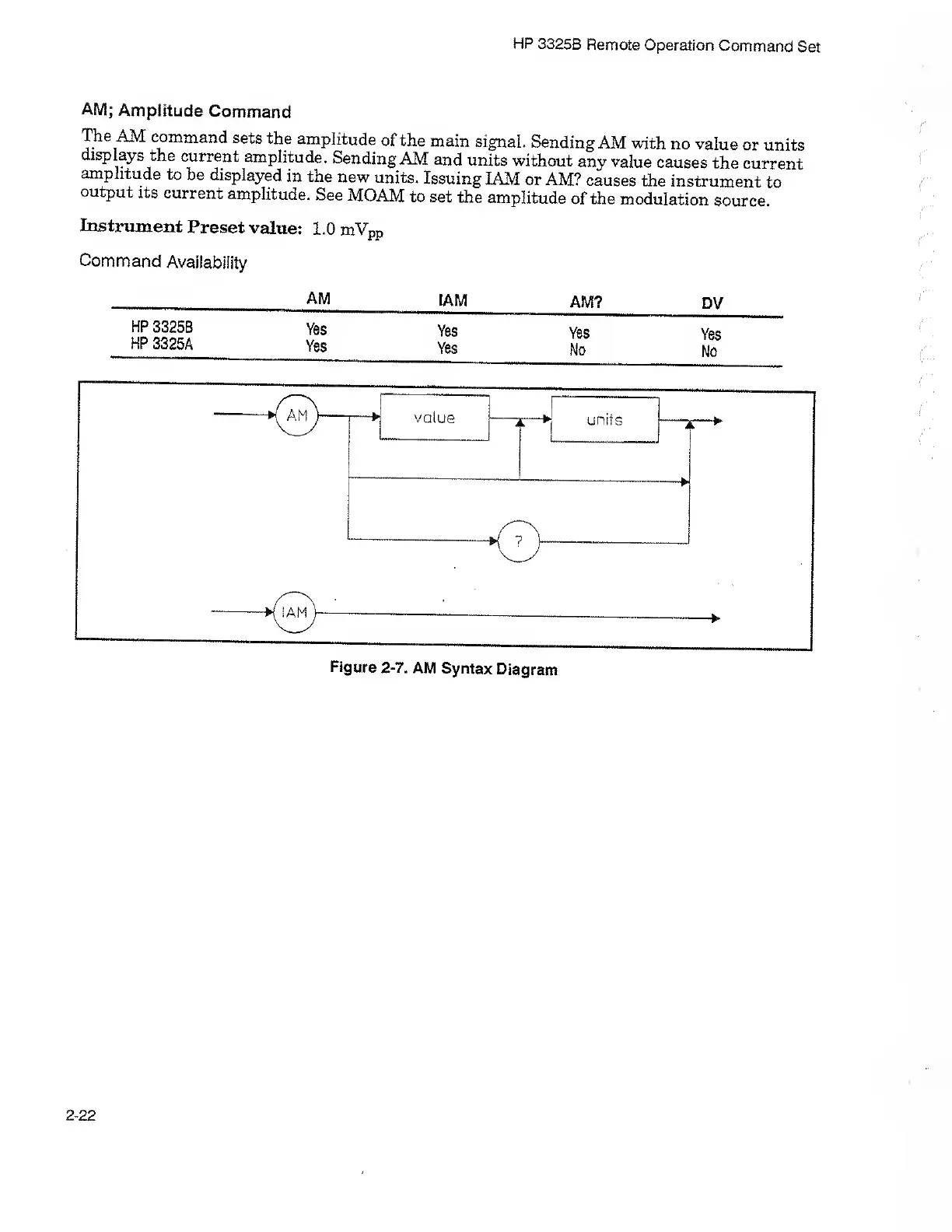

HP
3325B
Remote
Operation
Command
Set
AM;
Amplitude
Command
The
AM
command
sets
the
amplitude
of
the
main
signal.
Sending
AM
with
no
value
or
units
displays
the
current
amplitude.
Sending
AM
and
units
without
any
value
causes
the
current
amplitude
to
be
displayed
in
the
new
units.
Issuing
lAM
or
AM?
causes
the
instrument
to
output
Its
current
amplitude.
See
MOAM
to
set
the
amplitude
of
the
modulation
source.
Instmment
Preset
value:
1.0
mVpp
Command
Availability
AM
HP
3325B
Yes
HP
3325A
Yes
JAM_am?_
m
Yes
Yes
Yes
Yes
No
No
2-22
65
67
