HP 3325B Remote Operation Command Set

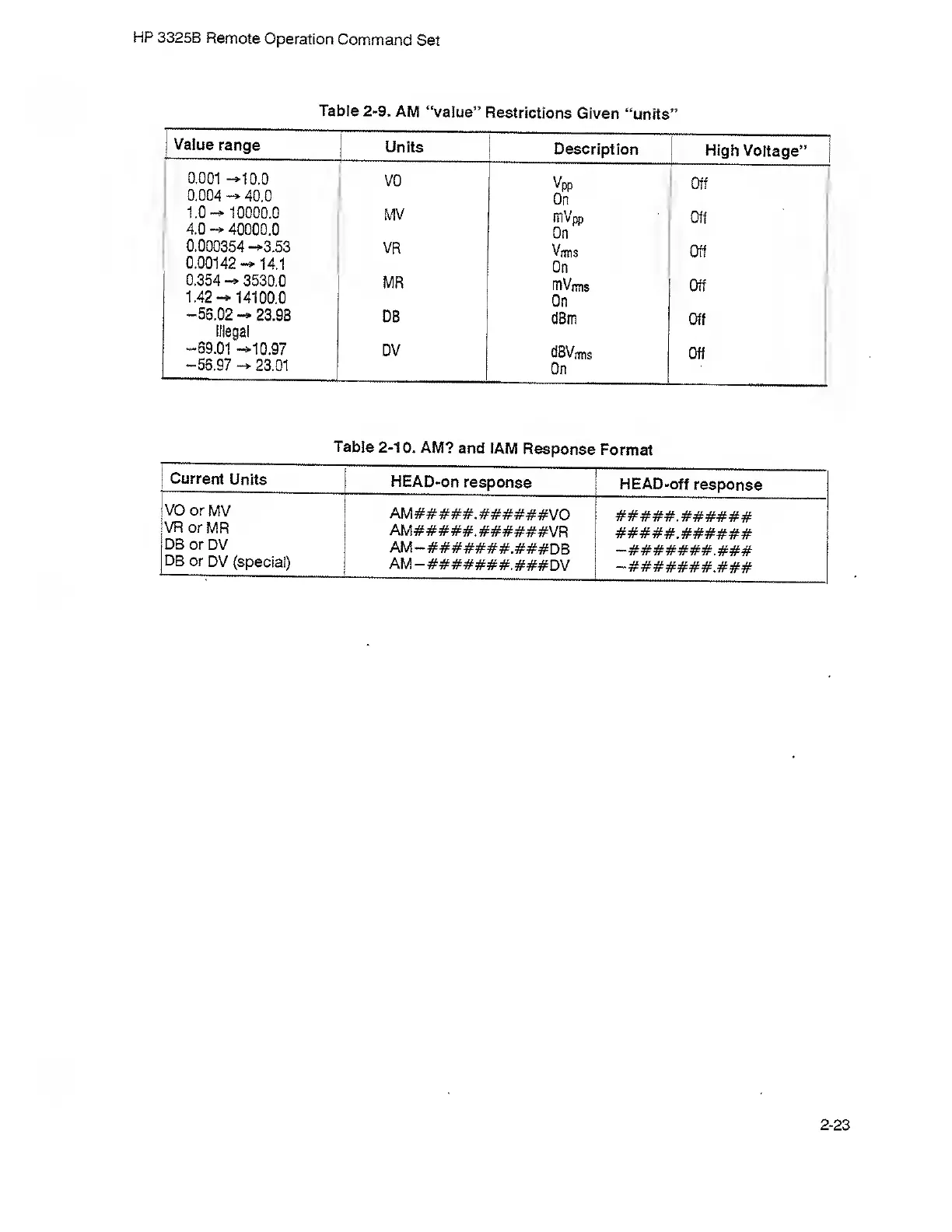

Table 2-9. AM “value” Restrictions Given “units”
Value range
Units
Description
High Voltage”
0.001 -10.0
VO
Vpp
Off
0.004 — 40.0
On
1.0 - 10000.0
MV
fliVK) Off
4.0 - 40000.0
On
0.000354 -3.53
VR
Vfms
Off
0.00142 ”*14.1
On
0.354-3530.0
MR
mVrms
Off
1.42-14100.0
On
-56.02- 23.98
DB
dBm
Off
Illegal
-69.01 -10.97
DV
dBVrms
Off
-56.97-23.01
On
Table 2-10. AM? and lAM Response Format
Current Units
HEAD-on response
HEAD-off response
VO or MV
VRorMR
DB or DV
DB or DV (special)
AM#####.######VO
AM#####.######VR
AM-#######.###DB
AM-#######.###DV
#####.######
#####.######
-#######.###
-#######.###
