Setup Channel Menu
Calibrate . . .
3-10
Cal status
The Cal Status function displays a screen similar to Figure 3-8.
Key Path Channel
Calibrate
Cal Status

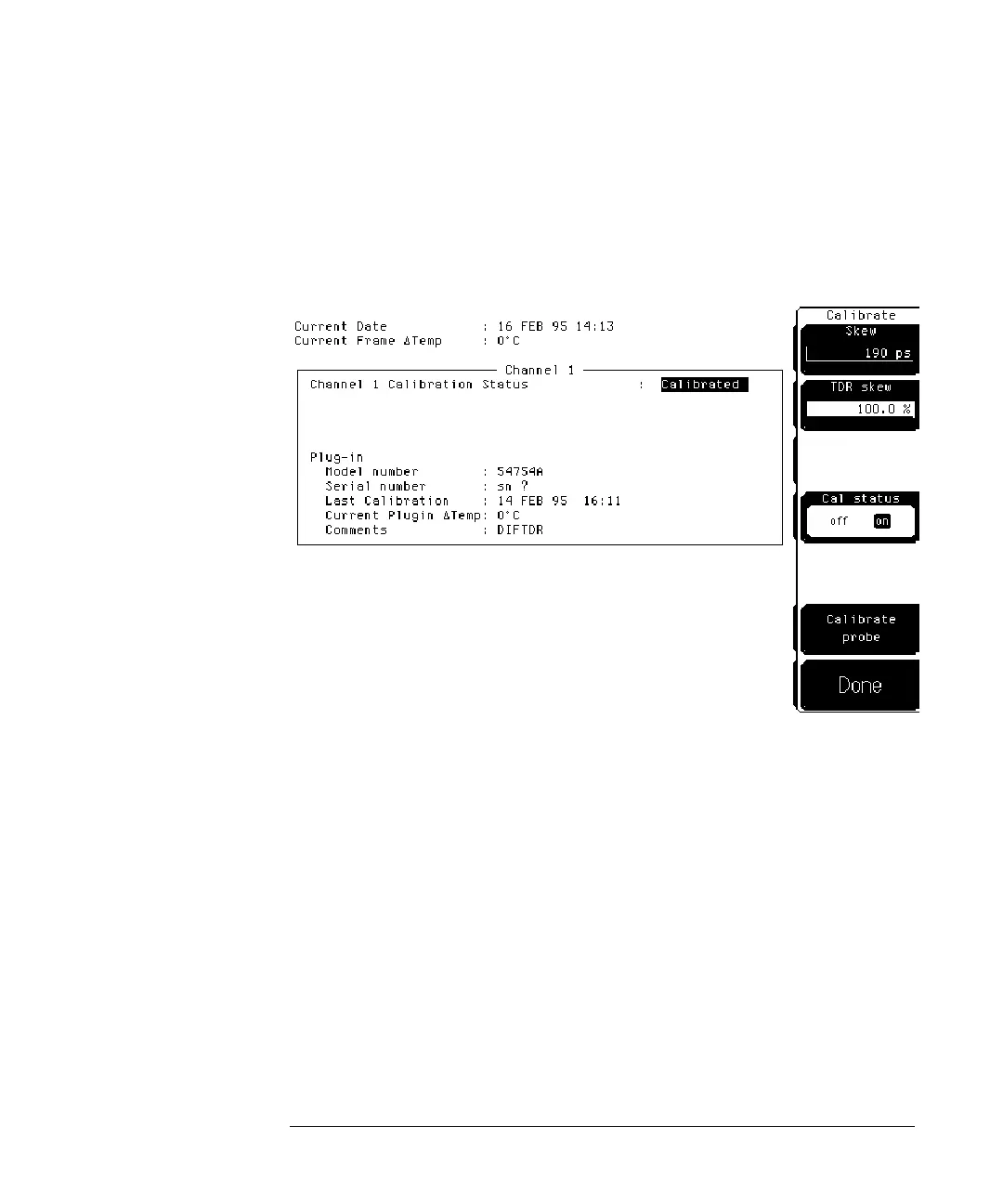

Figure 3-8
A typical Cal Status display.
Current Date This is the current date and time. You can compare this to
the last plug-in module calibration time. That way you will know how long
it has been since the last plug-in module calibration was performed.
Current Frame ∆Temp This is the temperature change on the inside of
the instrument since the last mainframe calibration was performed. A
positive number indicates how many degrees warmer the mainframe is
currently as compared to the temperature of the mainframe at the last
mainframe calibration.
