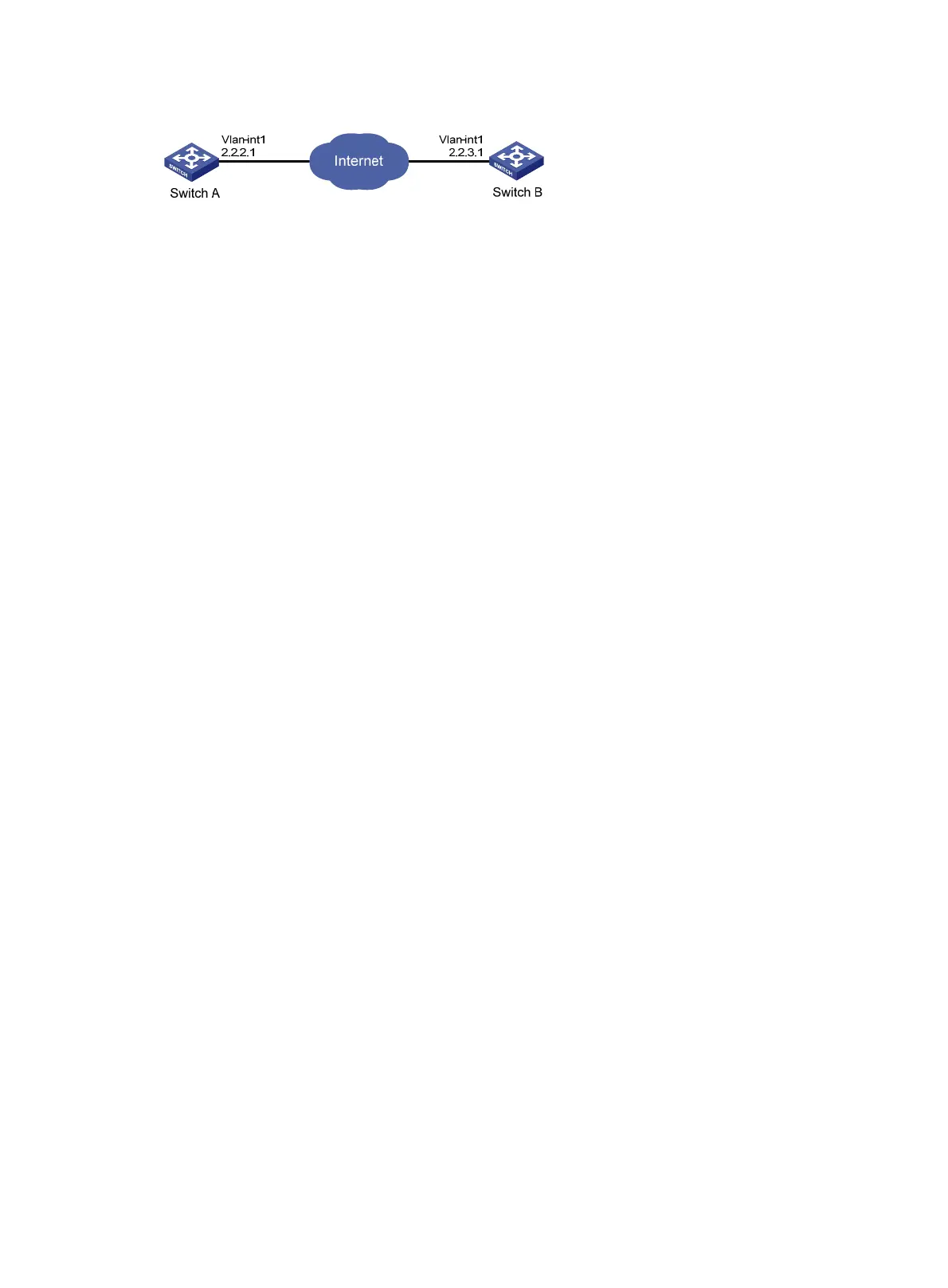

Figure 85 Network diagram

Configuration procedure

1. Configure Switch A:

# Assign an IP address to VLAN-interface 1.

<SwitchA> system-view

[SwitchA] interface vlan-interface 1

[SwitchA-Vlan-interface1] ip address 2.2.2.1 255.255.255.0

[SwitchA-Vlan-interface1] quit

# Define an ACL to identify data flows from Switch A to Switch B.

[SwitchA] acl number 3101

[SwitchA-acl-adv-3101] rule 0 permit ip source 2.2.2.1 0 destination 2.2.3.1 0

[SwitchA-acl-adv-3101] rule 5 permit ip source 2.2.3.1 0 destination 2.2.2.1 0

[SwitchA-acl-adv-3101] quit

# Create an IPsec proposal named tran1.

[SwitchA] ipsec proposal tran1

# Specify the encapsulation mode as tunnel.

[SwitchA-ipsec-proposal-tran1] encapsulation-mode tunnel

# Specify the security protocol as ESP.

[SwitchA-ipsec-proposal-tran1] transform esp

# Specify the algorithms for the proposal.

[SwitchA-ipsec-proposal-tran1] esp encryption-algorithm aes 128

[SwitchA-ipsec-proposal-tran1] esp authentication-algorithm sha1

[SwitchA-ipsec-proposal-tran1] quit

# Configure the IKE peer.

[SwitchA] ike peer peer

[SwitchA-ike-peer-peer] pre-shared-key Ab12<><>

[SwitchA-ike-peer-peer] remote-address 2.2.3.1

[SwitchA-ike-peer-peer] quit

# Create an IPsec policy that uses IKE for IPsec SA negotiation.

[SwitchA] ipsec policy map1 10 isakmp

# Apply the IPsec proposal.

[SwitchA-ipsec-policy-isakmp-map1-10] proposal tran1

# Apply the ACL.

[SwitchA-ipsec-policy-isakmp-map1-10] security acl 3101

# Apply the IKE peer.

[SwitchA-ipsec-policy-isakmp-map1-10] ike-peer peer

[SwitchA-ipsec-policy-isakmp-map1-10] quit

# Apply the IPsec policy group to VLAN-interface 1.

[SwitchA] interface vlan-interface 1
