398

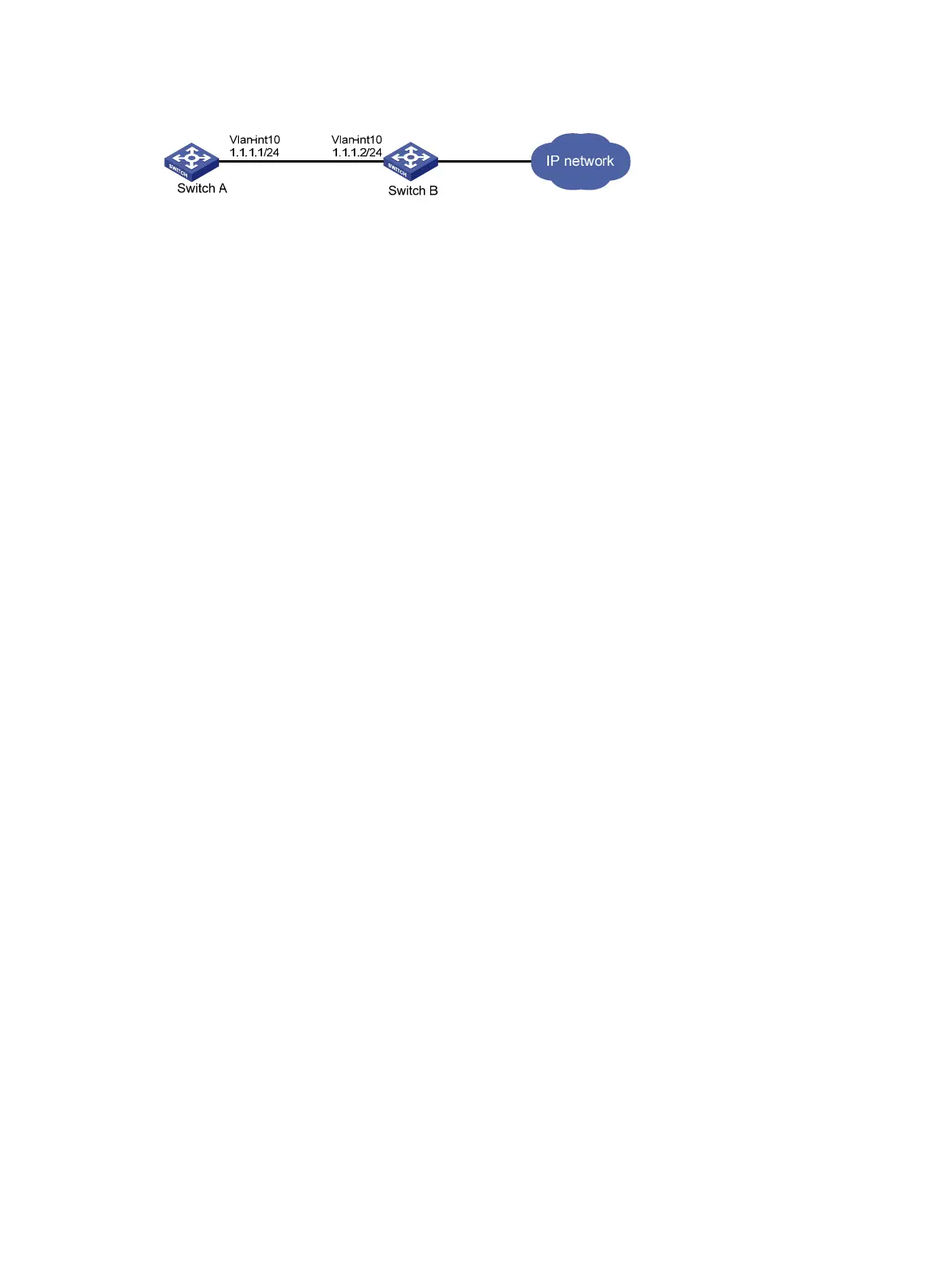

Figure 129 Network diagram

Configuration procedure

1. Enable strict URPF check on Switch A.

<SwitchA> system-view

[SwitchA] ip urpf strict

2. Enable strict URPF check on Switch B.

<SwitchB> system-view

[SwitchB] ip urpf strict
