HP 5900 Configuration Guide

67
Nesting configuration example
Network requirements
As shown in Figure 20, Site 1 and Site 2 in VPN A are two branches of a company, and they use VLAN
5 to transmit traffic. Because Site 1 and Site 2 are located in different areas, the two sites use the VPN
access service of a service provider. The service provider assigns VLAN 100 to the two sites.
Configure nesting, so that the two branches can communicate through the service provider network.

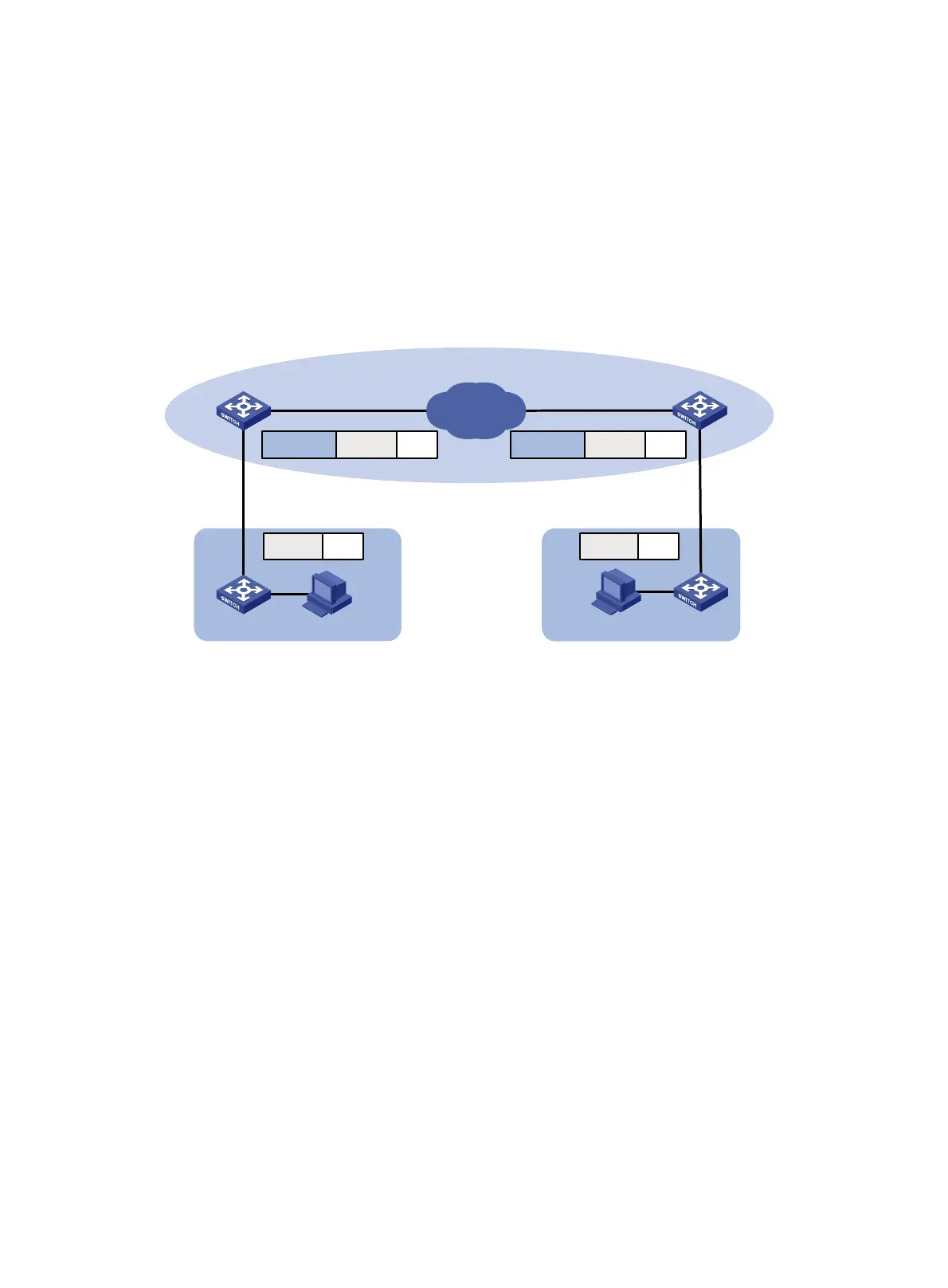

Figure 20 Network diagram
Configuration procedure
Configuring PE 1
# Create a class named test to match traffic with CVLAN tag 5.
<PE1> system-view
[PE1] traffic classifier test
[PE1-classifier-test] if-match customer-vlan-id 5
[PE1-classifier-test] quit
# Configure an action of add outer VLAN tag 100 in the traffic behavior named test.
[PE1] traffic behavior test
[PE1-behavior-test] nest top-most vlan 100
[PE1-behavior-test] quit
# Create a QoS policy named test, and assocaite class test with behavior test in the QoS policy.
[PE1] qos policy test
[PE1-qospolicy-test] classifier test behavior test
[PE1-qospolicy-test] quit
# Configure the downlink port Ten-GigabitEthernet 1/0/1 as a hybrid port, and assign the port to VLAN
100 as an untagged member.
[PE1] interface ten-gigabitethernet 1/0/1
[PE1-Ten-GigabitEthernet1/0/1] port link-type hybrid
[PE1-Ten-GigabitEthernet1/0/1] port hybrid vlan 100 untagged
PE 1
Public network
PE 2
IP network
VPN A
Site 1
VPN A
Site 2
CE 1
CE 2
VLAN 5
DataVLAN 100 VLAN 5 DataVLAN 100 VLAN 5
DataVLAN 5 DataVLAN 5
XGE1/0/1
XGE1/0/1
XGE1/0/2 XGE1/0/2

HP 5900 Specifications

General

Model	HP 5900
Rack Mountable	Yes
MAC Address Table Size	128K
Jumbo Frame Support	Yes
Routing Protocol	OSPF, BGP, RIP, IS-IS, IGMP
Remote Management Protocol	SNMP, CLI
Features	Quality of Service (QoS), Jumbo Frames support, IPv4 support, IPv6 support
Operating Temperature	0 °C to 45 °C
Operating Humidity	10% to 90% non-condensing
Power Supply	Internal power supply - hot-plug / redundant
