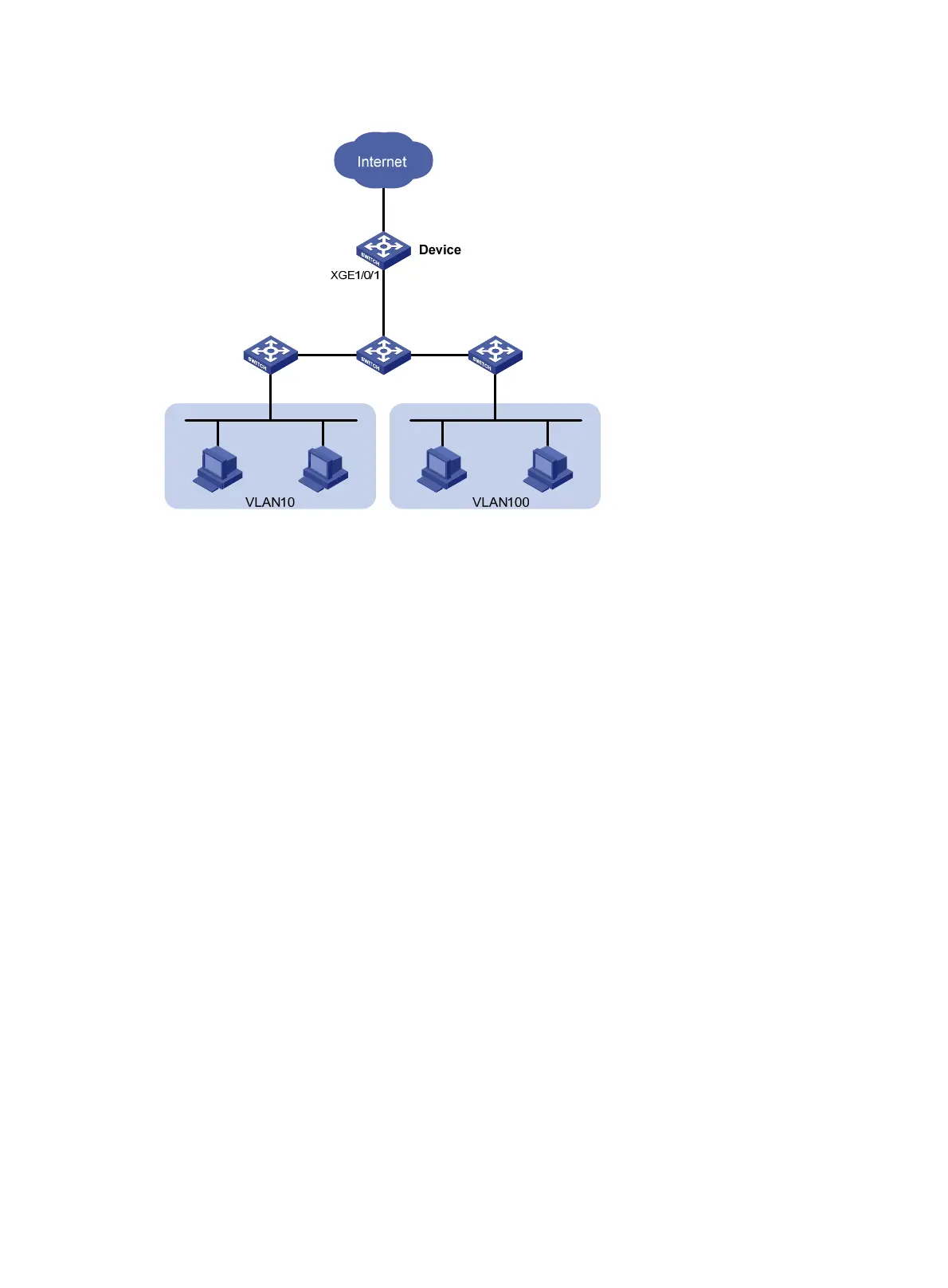

Figure 22 Network diagram
Configuration procedure
# Configure an aggregate CAR according to the rate limit requirements.
<Device> system-view
[Device] qos car aggcar-1 aggregative cir 2560 cbs 20000 red discard
# Create class 1 to match traffic of VLAN 10. Create behavior 1 and reference the aggregate CAR in the
behavior.
[Device] traffic classifier 1
[Device-classifier-1] if-match customer-vlan-id 10
[Device-classifier-1] quit
[Device] traffic behavior 1
[Device-behavior-1] car name aggcar-1
[Device-behavior-1] quit
# Create class 2 to match traffic of VLAN 100. Create behavior 2 and reference the aggregate CAR in
the behavior.
[Device] traffic classifier 2
[Device-classifier-2] if-match customer-vlan-id 100
[Device-classifier-2] quit
[Device] traffic behavior 2
[Device-behavior-2] car name aggcar-1
[Device-behavior-2] quit
# Create QoS policy car, associate class 1 with behavior 1, and associate class 2 with behavior 2.
[Device] qos policy car
[Device-qospolicy-car] classifier 1 behavior 1
[Device-qospolicy-car] classifier 2 behavior 2
[Device-qospolicy-car] quit
# Apply the QoS policy to the incoming traffic of Ten-GigabitEthernet 1/0/1.
