Frequency Keys
G
~FREQUENCY~
3
OFFSET
MULT
[EL]
[G]
MKR
-
CFMKR
-
CF
m
[iii-]
Ml=STARTMl=START
SWEPT
CW
SWEPT
CW
M2=STOPM2=STOP
pg45ab

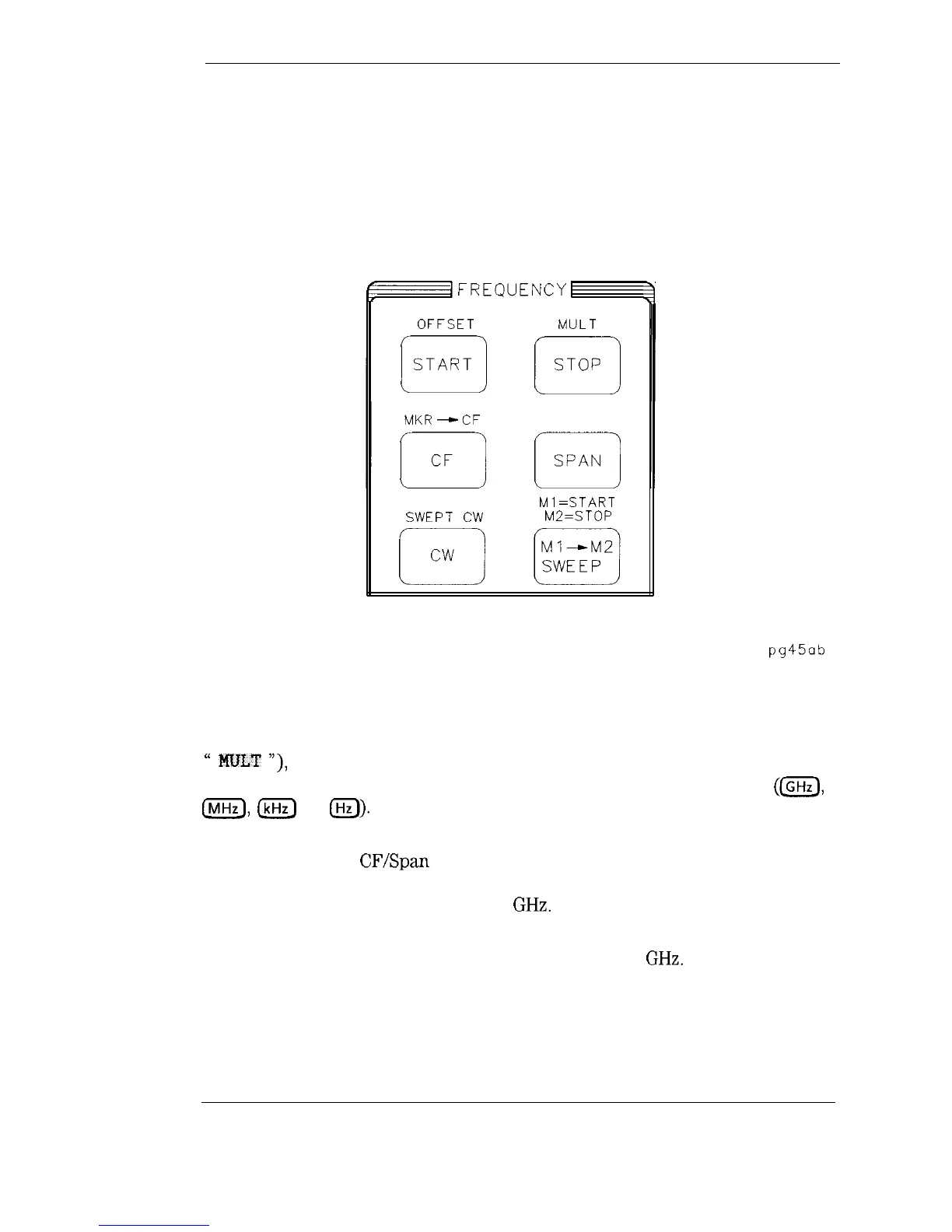

Figure 1 l-l. The Frequency Group
All the frequency functions, with the exception of the multiplier setting (see
“
MIXT
“),
accept parameters with the units of hertz. Therefore, the numeric
entries must be terminated using one of the four frequency-unit keys
(m,
LMHz),
CkHz)
or (KJ). When the entry is terminated, the display shows the
new value, autoranged to the appropriate units.
For Start/Stop and CF/Span Sweep modes, the frequency values are shown
on the left and right sides of the FREQUENCY display, in the format <digits>
<units>. Units can be either MHz or
GHz.
Leading zeros are suppressed.
For CW mode, the frequency is shown in the FREQUENCY display in the
format <digits> <units>. Units can be either MHz or
GHz.
Leading zeros are
suppressed.
