Click the Service tab, and select User Access Manager > Service Configuration from the navigation tree
to enter the Service Configuration page. Then, click Add to enter the Add Service Configuration page,
and perform the following configurations:
a. Add a service named Dot1x auth and set the Service Suffix to bbb, which indicates the
authentication domain for the 802.1X user. With the service suffix configured, you must
configure usernames to be sent to the RADIUS service to carry the domain name.
b. Specify UserAcct as the Charging Plan.
c. Select Deploy VLAN and set the ID of the VLAN to be assigned to 4.
d. Configure other parameters according to the actual situation.
e. Click OK to finish the operation.

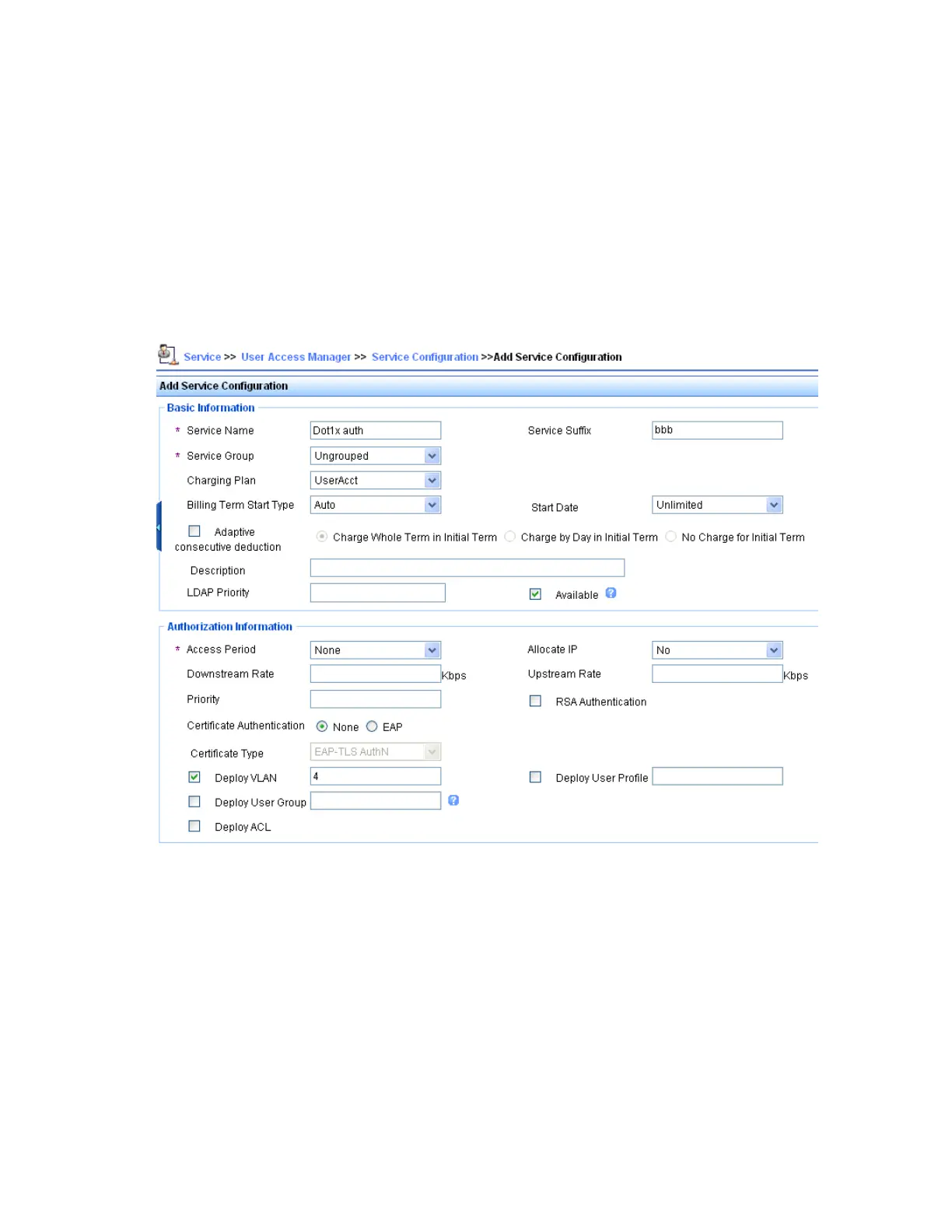

Figure 18 Add a service
# Add a user. See Figure 19.
Click the User tab, and select All Access Users from the navigation tree to enter the All Access Users
page. Then, click Add to enter the Add Access User page, and perform the following configurations:
a. Select the user or add a user named test.
b. Specify the account name as dot1x and configure the password.
c. Select the access service Dot1x auth.
d. Configure other parameters accordingly, and click OK to finish the operation.
