356 Optimizing fabric behavior
To display information about all TI zones in the defined configuration:
switch:admin> zone --show
Defined TI zone configuration:
TI Zone Name: greenzone:
Port List: 2,2; 3,3; 5,3; 4,11;
Configured Status: Activated / Failover-Enabled
Enabled Status: Activated / Failover-Enabled
TI Zone Name: purplezone:
Port List: 1,2; 1,3; 3,3; 4,5;
Configured Status: Activated / Failover-Enabled
Enabled Status: Deactivated / Failover-Enabled
TI Zone Name: bluezone:
Port List: 9,2; 9,3; 8,3; 8,5;
Configured Status: Deactivated / Failover-Disabled
Enabled Status: Activated / Failover-Enabled
Setting up TI over FCR (sample procedure)
The following example shows how to set up TI zones over FCR to provide a dedicated path shown in
Figure 55. In this example, three TI zones are created: one in each of the edge fabrics and one in the
backbone fabric. The combination of these three TI zones creates a dedicated path for traffic between Host
1 in edge fabric 1 and Targets 1 and 2 in edge fabric 2.
Host 1 has port WWN 10:00:00:00:00:08:00:00
Target 1 has port WWN 10:00:00:00:00:02:00:00
Target 2 has port WWN 10:00:00:00:00:03:00:00

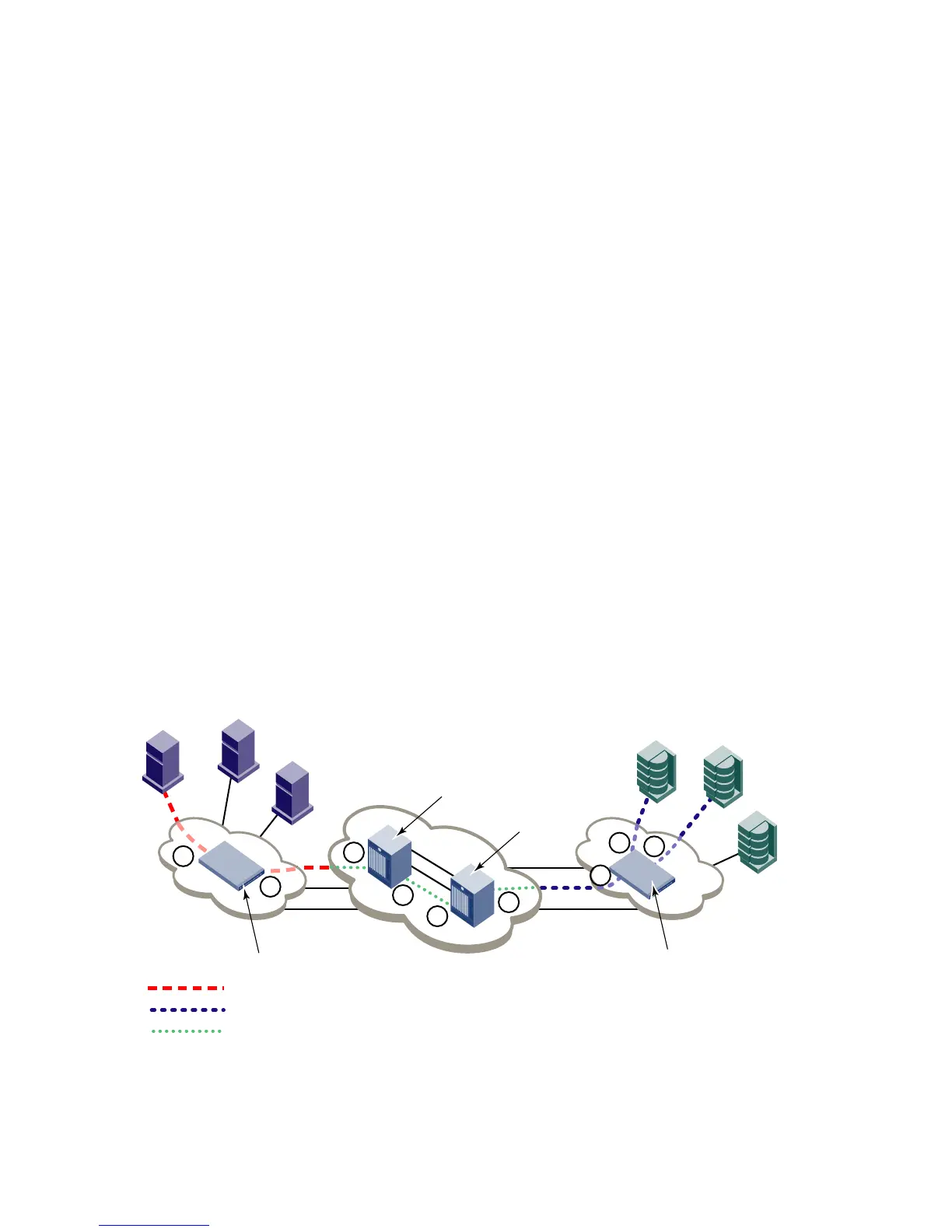

Figure 55 TI over FCR example
Edge fabric 1
Edge fabric 2
Backbone
fabric
= Dedicated path set up by TI zone in edge fabric 1
= Dedicated path set up by TI zone in edge fabric 2
= Dedicated path set up by TI zone in backbone fabric
2
5
9
8
3
7
6
Host 1
Target 1
Target 2
1
4
Domain ID = 4
Domain ID = 9
Domain ID = 2
Domain ID = 1
