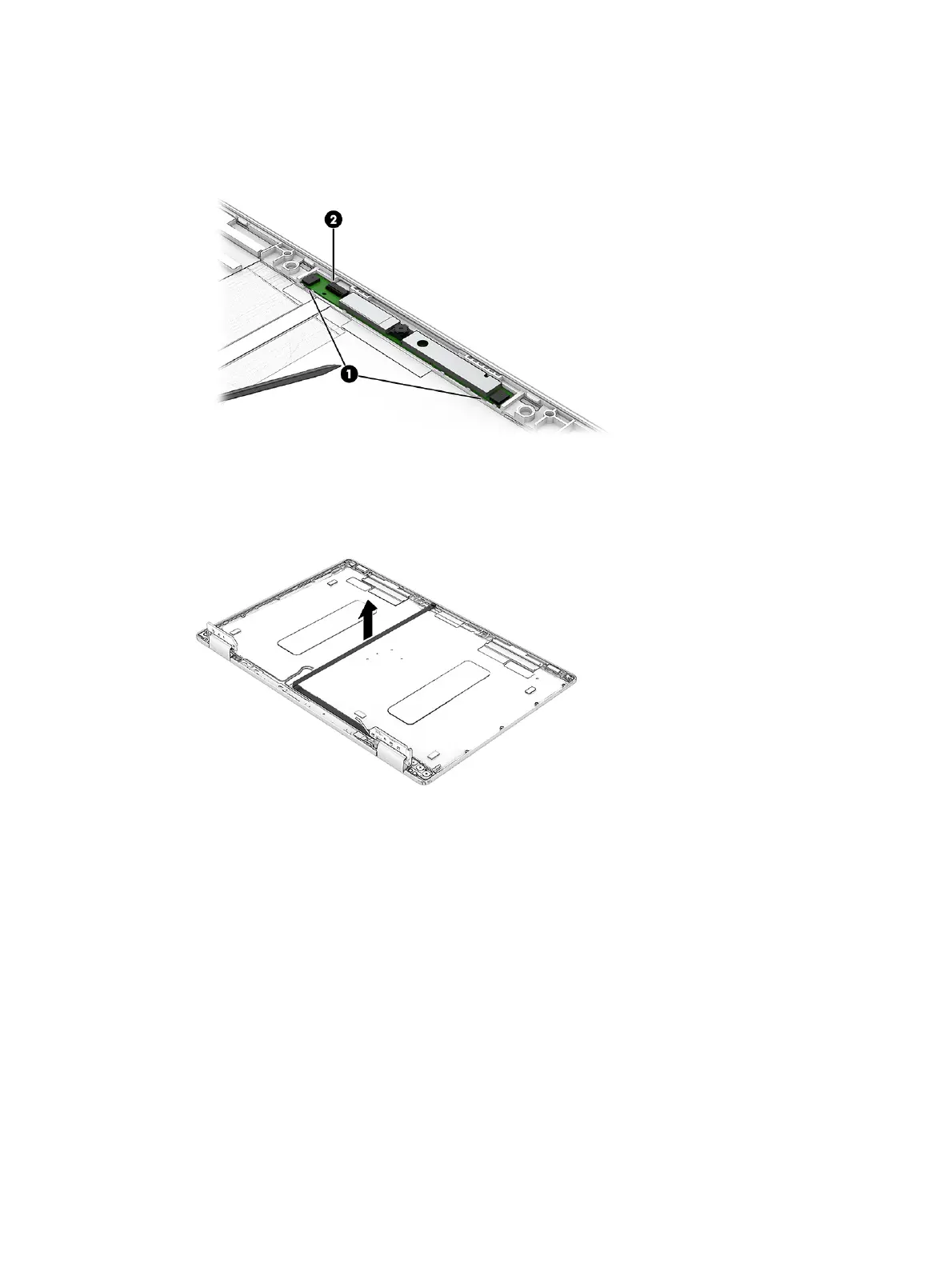

b. Disconnect the cable from the module (2). Note that the camera cable routes under the camera.
The camera module is available as spare part number N24437-001.
12. To remove the camera cable, peel the cable o the inside of the display back cover.
The camera cable is available as spare part number N24423-001.
13. To remove the display cable, remove the rubber insert from the hinge (1), and then remove the cable
from the hinge (2).
The display cable is available as spare part number N24420-001.
42 Chapter 5Removal and replacement procedures for authorized service provider parts
