System Board Drive Connections

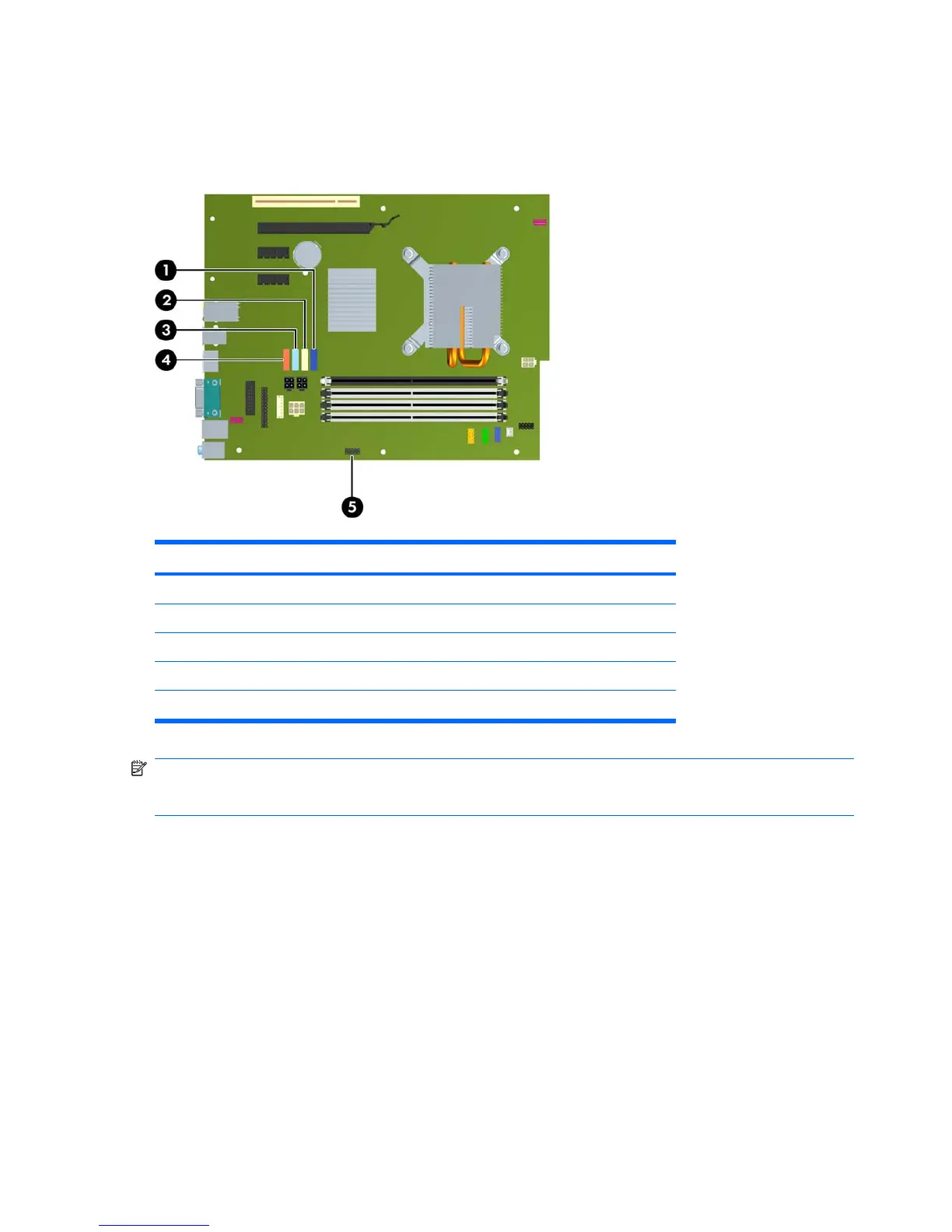

Refer to the following illustration and table to identify the system board drive connectors.
Figure 8-15 System Board Drive Connections
Table 8-3 System Board Drive Connections
No. System Board Connector System Board Label Color
1 SATA0 SATA0 dark blue
2 SATA1 SATA1 white
3 SATA2 SATA2 light blue
4 SATA3 SATA3 orange
5 Media Card Reader MEDIA black
NOTE: The orange SATA3 connector can be reconfigured as eSATA in the Computer Setup utility if
you are installing an eSATA adapter. Select Storage > Storage Options > eSATA Port to reconfigure
the SATA3 connector. Refer to the Computer Setup (F10) Utility Guide for more information.
92 Chapter 8 Removal and Replacement Procedures Microtower (MT) Chassis
