Fan/Baffle Assembly
1. Prepare the computer for disassembly (Preparation for Disassembly on page 76).
2. Remove the access panel (
Access Panel on page 77).
3. Unplug the fan cable from the system board (CHFAN1, P9).

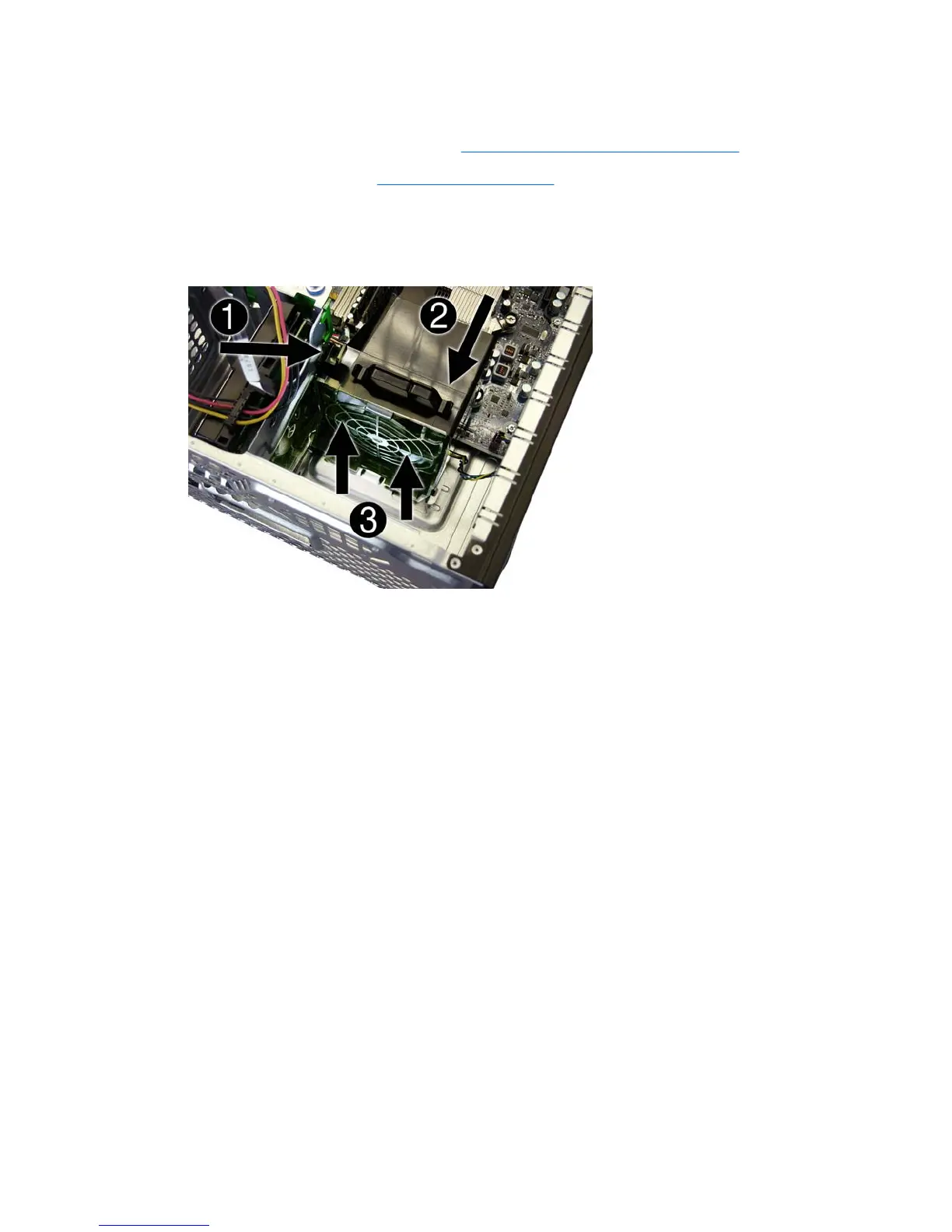

4. Press the lever that secures the assembly to the chassis (1), pivot the assembly forward toward
the front of the computer (2), and then lift the assembly straight up and out of the computer (3).
To reinstall the fan/baffle, reverse the removal procedure.
106 Chapter 8 Removal and Replacement Procedures Microtower (MT) Chassis
