Front I/O Assembly
1. Prepare the computer for disassembly (Preparation for Disassembly on page 76).
2. Remove the computer access panel (
Access Panel on page 77).
3. Remove the front bezel (
Front Bezel on page 78).
4. Remove the cables from the clip on top of the baffle.
5. Disconnect the three front I/O cables (yellow, green, and blue) from the system board connectors
(FRNT_USB1, FRNT_USB2, and FRNT_AUD).

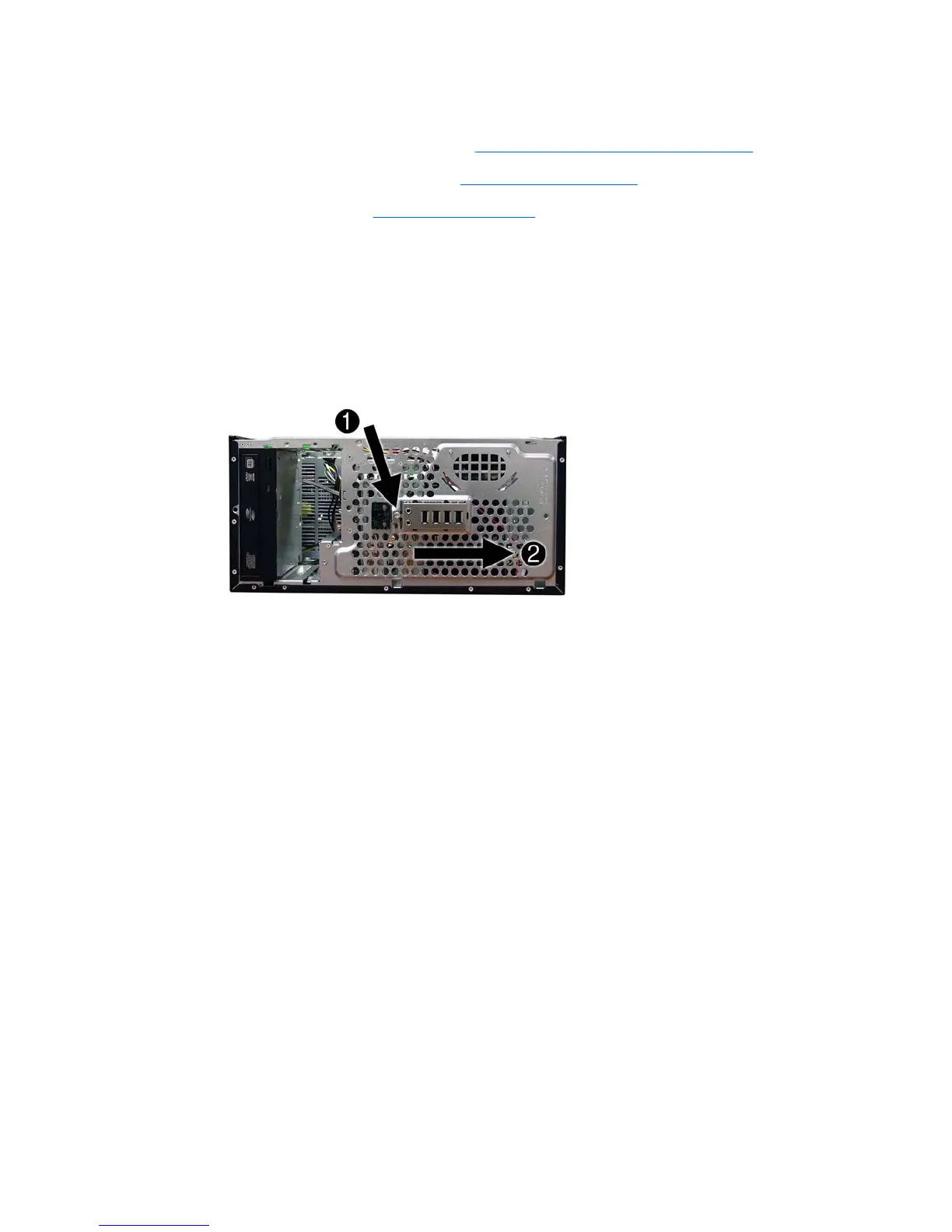

6. Remove the silver T15 screw (1) that secures the assembly to the chassis.
7. Rotate the assembly to the right (2), and then lift the assembly away from the computer while
threading the wires through the hole in the front of the chassis.
To reinstall the panel, reverse the removal procedure.
Front I/O Assembly 107
