External Security Devices
The following secu
rity devices are used
to preven
t unauthori
zed access to the intern
al components of
the computer and/or se
cure the computer to a fixed obj
ect.
Cable Lock

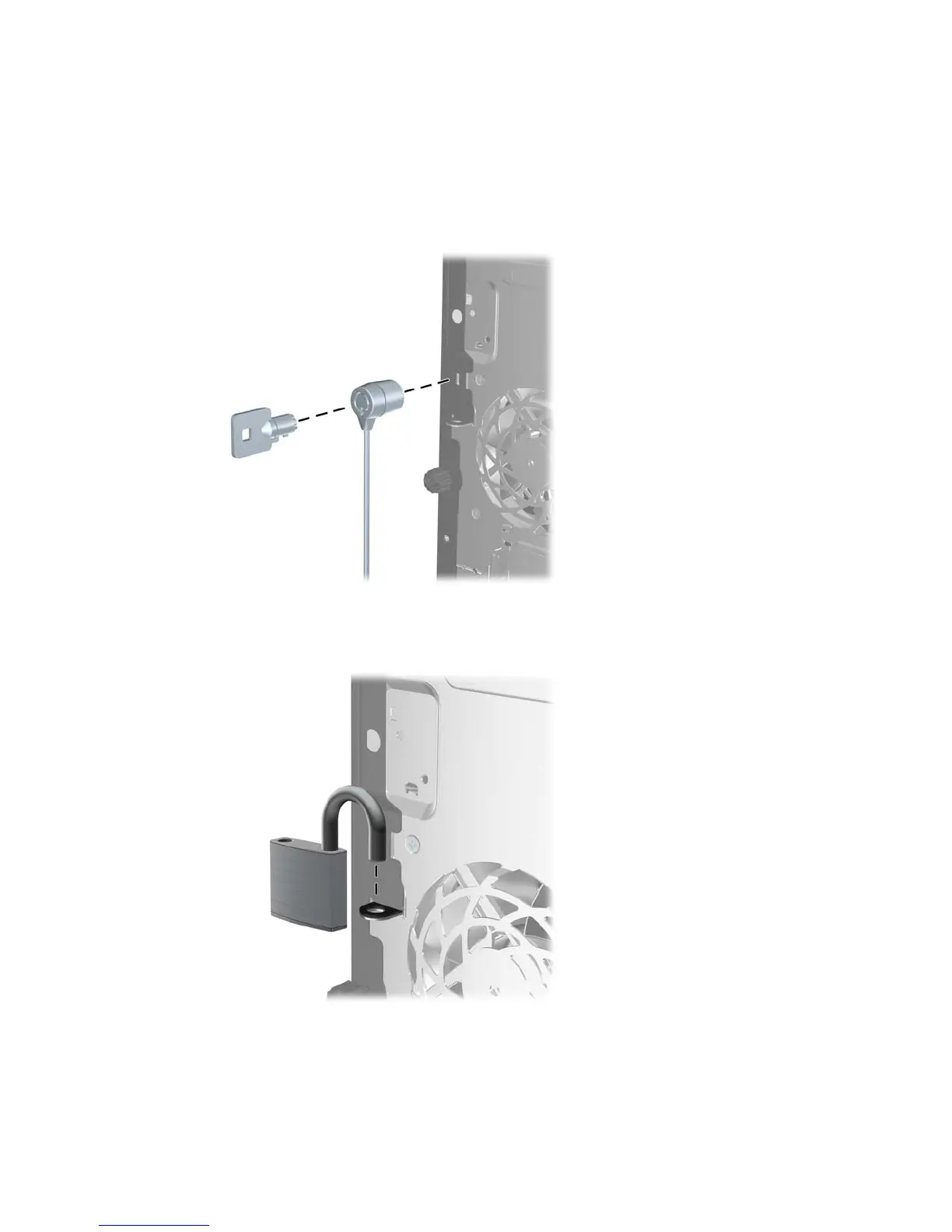

Figure 8-38
Installing a Cable Lock
Padlock
Figure 8-39
Installing a Padlock
118
Chapter 8 Removal
and Replacement
Procedures Microtower (MT) Chassis
129
131
Table of Contents
Default Chapter
3
About this Book
3
Table of Contents
5
1 Product Features
13
Microtower Chassis
13
Standard Configuration Features
13
Front Panel Components
14
Media Card Reader Components
15
Rear Panel Components
16
Serial Number Location
17
Small Form Factor
18
Standard Configuration Features
18
Front Panel Components
19
Media Card Reader Components
20
Rear Panel Components
21
Serial Number Location
22
2 Installing and Customizing the Software
23
Installing the Operating System
23
Downloading Microsoft Windows Updates
24
Installing or Upgrading Device Drivers (Windows Systems)
24
Accessing Disk Image (ISO) Files
24
Protecting the Software
25
3 Computer Setup (F10) Utility
26
Computer Setup (F10) Utilities
26
Using Computer Setup (F10) Utilities
27
Computer Setup-File
28
Computer Setup-Storage
29
Computer Setup-Security
31
Computer Setup-Power
35
Computer Setup-Advanced
36
Recovering the Configuration Settings
40
Drive Protection System (DPS)
40
Accessing DPS through Computer Setup
40
4 Computer Diagnostic Features
42
Hewlett-Packard Vision Diagnostics
42
Accessing HP Vision Diagnostics
42
Survey Tab
43
Test Tab
43
Status Tab
44
History Tab
45
Errors Tab
45
Help Tab
45
Saving and Printing Information in HP Vision Diagnostics
46
Downloading the Latest Version of HP Vision Diagnostics
46
Protecting the Software
46
5 Desktop Management
47
Initial Configuration and Deployment
47
HP Client Automation Agent
48
HP Client Manager
48
Remote System Installation
49
Software Updating and Management
49
HP Client Management Interface
50
HP Softpaq Download Manager
50
HP System Software Manager
50
HP Protecttools Security Manager
51
HP Client Automation Starter and Standard Editions
52
HP Client Automation Enterprise Edition
52
HP Client Manager from Symantec
52
Altiris Client Management Suite
53
HP Client Catalog for Microsoft System Center & SMS Products
53
Remote Management Technology
54
Configuring the Intel Management Engine
54
Verdiem Surveyor
56
HP Proactive Change Notification
56
Subscriber's Choice
56
Retired Solutions
57
ROM Flash
57
Remote ROM Flash
57
Hpqflash
57
Boot Block Emergency Recovery Mode
58
Replicating the Setup
59
Copying to Single Computer
59
Copying to Multiple Computers
59
Creating a Bootable Device
60
Supported USB Flash Media Device
60
Unsupported USB Flash Media Device
62
Dual-State Power Button
63
HP Web Site Support
64
Industry Standards
64
Asset Tracking and Security
64
Password Security
68
Establishing a Setup Password Using Computer Setup
68
Establishing a Power-On Password Using Computer Setup
68
Entering a Power-On Password
69
Entering a Setup Password
69
Changing a Power-On or Setup Password
69
Deleting a Power-On or Setup Password
70
National Keyboard Delimiter Characters
70
Clearing Passwords
71
Drivelock
71
Using Drivelock
71
Drivelock Applications
72
Smart Cover Sensor
72
Setting the Smart Cover Sensor Protection Level
72
Smart Cover Lock
73
Locking the Smart Cover Lock
73
Unlocking the Smart Cover Lock
73
Using the Smart Cover Failsafe Key
73
Cable Lock Provision
74
Fingerprint Identification Technology
74
Fault Notification and Recovery
74
Drive Protection System
74
Surge-Tolerant Power Supply
74
Thermal Sensor
75
6 Serial ATA Drive Guidelines and Features
76
SATA Hard Drives
76
SATA Hard Drive Cables
77
SATA Data Cable
77
SATA Power Cable
77
ATA SMART Drives
78
Hard Drive Capacities
78
7 Identifying the Chassis, Routine Care, and Disassembly Preparation
79
Chassis Designations
79
Small Form Factor (SFF)
79
Microtower (MT)
80
Electrostatic Discharge Information
80
Generating Static
80
Preventing Electrostatic Damage to Equipment
81
Personal Grounding Methods and Equipment
81
Grounding the Work Area
82
Recommended Materials and Equipment
82
Operating Guidelines
83
Routine Care
83
General Cleaning Safety Precautions
83
Cleaning the Computer Case
83
Cleaning the Keyboard
84
Cleaning the Monitor
84
Cleaning the Mouse
85
Service Considerations
85
Power Supply Fan
85
Tools and Software Requirements
85
Screws
85
Cables and Connectors
86
Hard Drives
86
Lithium Coin Cell Battery
86
8 Removal and Replacement Procedures Microtower (MT) Chassis
87
Serial Number Location
87
Preparation for Disassembly
88
Access Panel
89
Front Bezel
90
Removing Bezel Blanks
91
Cable Management
92
Cable Connections
93
Memory
94
Expansion Cards
98
Installing and Removing Drives
102
System Board Drive Connections
104
Removing an External 5.25-Inch or 3.5-Inch Drive
105
Installing an External 5.25-Inch or 3.5-Inch Drive
108
Removing an Internal 3.5-Inch Hard Drive
111
Installing an Internal 3.5-Inch Hard Drive
112
Removing and Replacing a Removable 3.5-Inch SATA Hard Drive
113
Fan/Baffle Assembly
118
Front I/O Assembly
119
Power Switch/Led Assembly
120
Heat Sink
121
Processor
122
Speaker
123
Rear Chassis Fan
124
Power Supply
125
System Board
126
Battery
127
Type 1 Battery Holder
128
Type 2 Battery Holder
128
Type 3 Battery Holder
129
External Security Devices
130
Cable Lock
130
Padlock
130
HP Business PC Security Lock
131
Front Bezel Security
132
9 Removal and Replacement Procedures Small Form Factor (SFF) Chassis
134
Preparation for Disassembly
134
Access Panel
135
Front Bezel
136
Bezel Blanks
137
Installing Additional Memory
138
Dimms
138
DDR3-SDRAM Dimms
138
Populating DIMM Sockets
139
Installing Dimms
140
Expansion Cards
142
Cable Management
147
Cable Connections
148
Drive Positions
149
Installing and Removing Drives
150
System Board Drive Connections
152
Removing an External 5.25-Inch Drive
153
Installing an Optical Drive into the 5.25-Inch Drive Bay
154
Removing an External 3.5-Inch Drive
157
Installing a Drive into the 3.5-Inch External Drive Bay
159
Removing and Replacing the Primary 3.5-Inch Internal SATA Hard Drive
161
Removing and Replacing a Removable 3.5-Inch SATA Hard Drive
165
Baffle
169
Front Fan Assembly
170
Front I/O and Power Switch Assembly
171
Speaker
173
Heat Sink
174
Processor
175
Power Supply
176
System Board
177
Battery
178
Type 1 Battery Holder
179
Type 2 Battery Holder
179
Type 3 Battery Holder
180
External Security Devices
181
Installing a Security Lock
181
Cable Lock
181
Padlock
182
HP Business PC Security Lock
182
Front Bezel Security
184
Using the Small Form Factor Computer in a Tower Orientation
186
Appendix A Connector Pin Assignments
187
Keyboard
187
Mouse
187
Ethernet RJ-45
188
Serial Interface, Powered and Non-Powered
188
Usb
188
Microphone
189
Headphone
189
Line-In Audio
189
Line-Out Audio
189
Monitor
190
4-Pin Power (for CPU)
190
PCI Express
191
PCI Express
192
DVI Connector
193
Displayport Connector
194
Appendix B Power Cord Set Requirements
195
General Requirements
195
Japanese Power Cord Requirements
195
Country-Specific Requirements
196
Appendix C POST Error Messages
197
POST Numeric Codes and Text Messages
198
Interpreting POST Diagnostic Front Panel Leds and Audible Codes
204
Appendix D Troubleshooting Without Diagnostics
208
Safety and Comfort
208
Before You Call for Technical Support
208
Helpful Hints
209
Solving General Problems
211
Solving Power Problems
215
Solving Hard Drive Problems
216
Solving Media Card Reader Problems
219
Solving Display Problems
220
Solving Audio Problems
224
Solving Printer Problems
227
Solving Keyboard and Mouse Problems
228
Solving Hardware Installation Problems
229
Solving Network Problems
232
Solving Memory Problems
235
Solving Processor Problems
236
Solving CD-ROM and DVD Problems
237
Solving USB Flash Drive Problems
239
Solving Front Panel Component Problems
240
Solving Internet Access Problems
240
Solving Software Problems
243
Contacting Customer Support
244
Appendix E Password Security and Resetting CMOS
245
Resetting the Password Jumper
246
Clearing and Resetting the CMOS
247
Appendix F Specifications
249
Microtower Chassis
249
Small Form Factor Chassis
251
Index
253
