HP Compaq 6000 Pro MT User Manual

Monitor

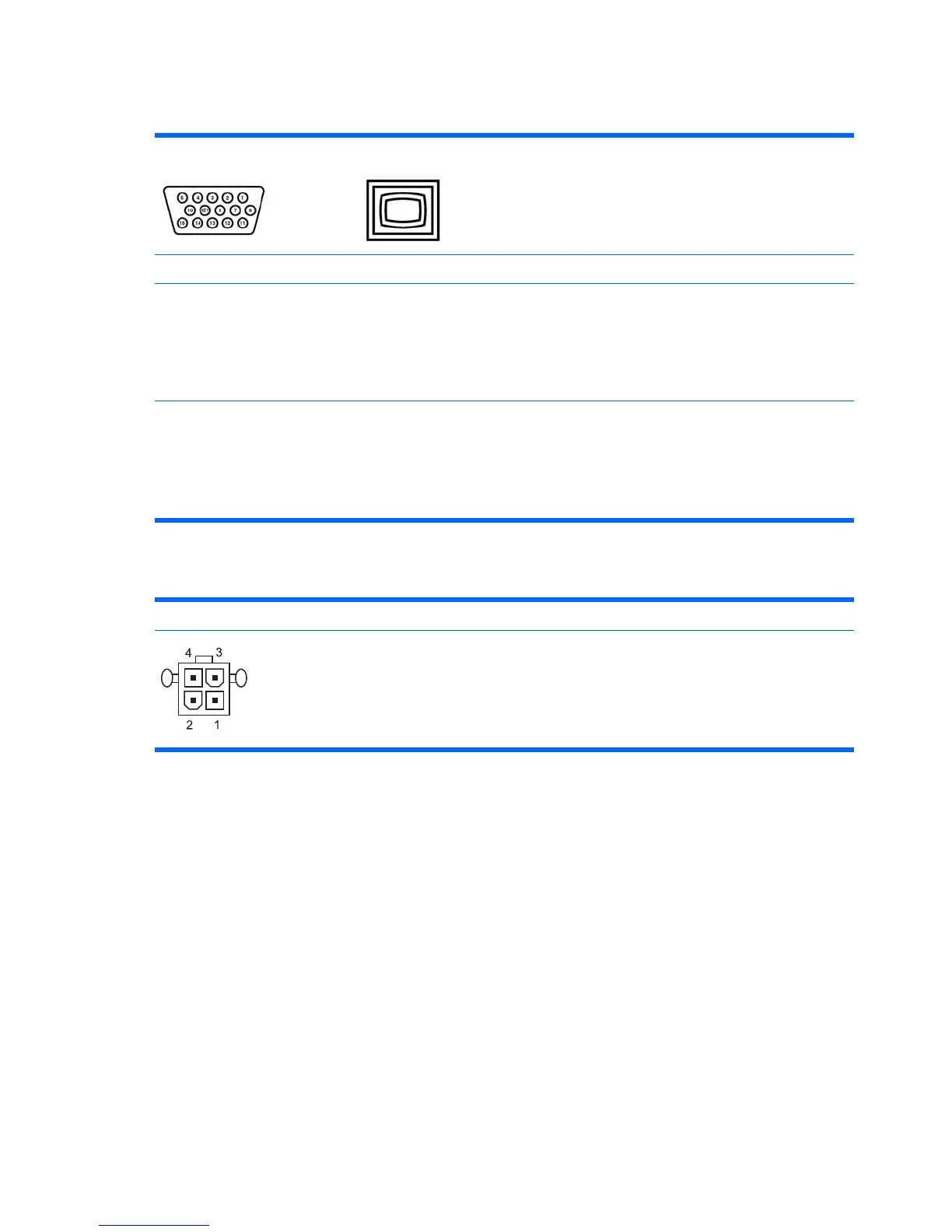

Connector and Icon
Pin Signal Pin Signal
1
2
3
4
Red Analog
Green Analog
Blue Analog
Not used
9
10
11
12
+5V (fused)
Ground
Not used
DDC Serial Data
5
6
7
8
Ground
Ground
Ground
Ground
13
14
15
Horizontal Sync
Vertical Sync
DDC Serial Clock
4-Pin Power (for CPU)
Connector and Icon Pin Signal
1
2
3
4
GND
GND
+12V CPU
-12V CPU
178 Appendix A Connector Pin Assignments

HP Compaq 6000 Pro MT Specifications

General

Brand	HP
Model	Compaq 6000 Pro MT
Category	Desktop
Language	English
