Speaker
1. Prepare the computer for disassembly (Preparation for Disassembly on page 122).
2. Remove the access panel (
Access Panel on page 123).
3. Remove the front bezel (
Front Bezel on page 124).
4. Rotate the drive cage to its upright position.
5. Disconnect the speaker wire from the system board (SPKR, P5).
6. Remove the two black T15 screws that secure the speaker to the chassis.

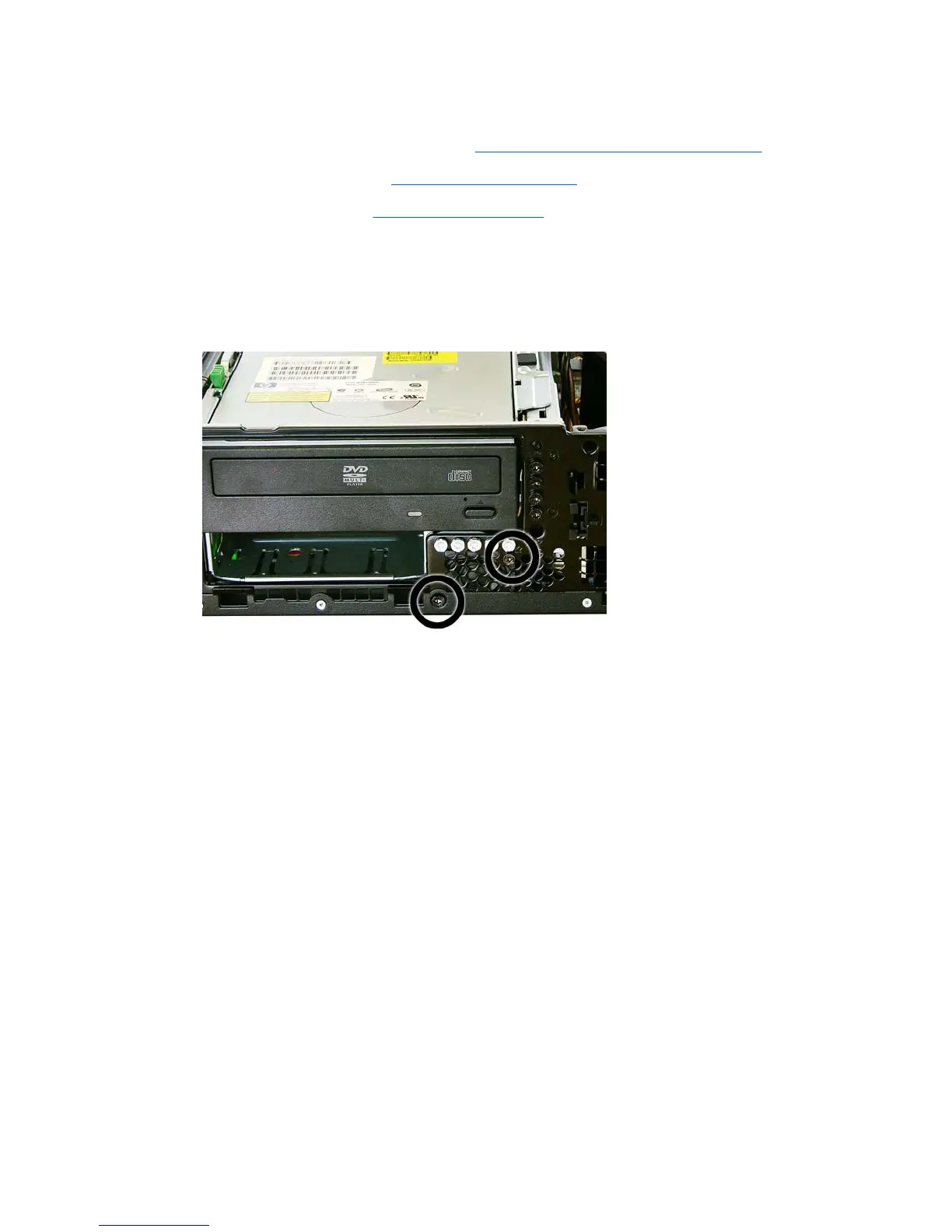

Figure 9-50 Removing the speaker
7. Lift the speaker from the inside of the chassis to remove it.
To install the speaker, reverse the removal procedures.
