Front Panel Components
Drive configuration may vary by model.

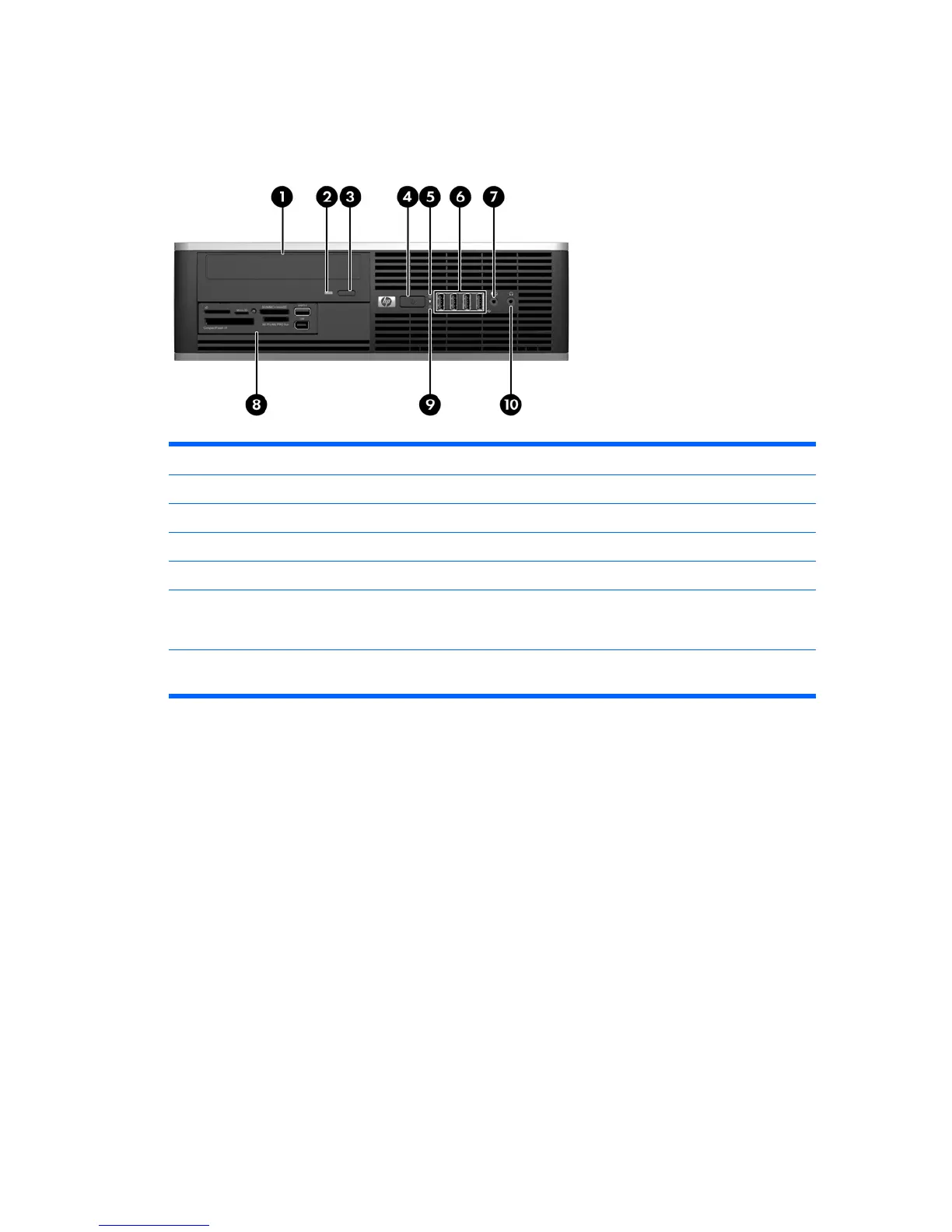

Figure 1-5 Front Panel Components
Table 1-4 Front Panel Components
1 5.25-inch Optical Drive
1
6 USB (Universal Serial Bus) Ports
2 Optical Drive Activity Light 7 Microphone/Headphone Connector
3 Optical Drive Eject Button 8 3.5-inch Media Card Reader (optional)
2
4 Dual-State Power Button 9 Hard Drive Activity Light
5 Power On Light 10 Headphone Connector
NOTE: When a device is plugged into the Microphone/Headphone Connector, a dialog box will pop up asking if you
want to use the connector for a microphone line Line-In device or a headphone. You can reconfigure the connector
at any time by double-clicking the Realtek HD Audio Manager icon in the Windows taskbar.
NOTE: The Power On Light is normally green when the power is on. If it is flashing red, there is a problem with the
computer and it is displaying a diagnostic code. Refer to the Troubleshooting Guide to interpret the code.
1
Some models are configured with a 5.25-inch bezel blank covering this bay.
2
Some models are configured with a 3.5-inch bezel blank covering this bay.
Small Form Factor 7
