Front Bezel
1. Prepare the computer for disassembly (Preparation for Disassembly on page 122).
2. Remove the access panel (
Access Panel on page 123).
3. Lift up the three tabs on the side of the bezel (1), then rotate the bezel off the chassis (2).

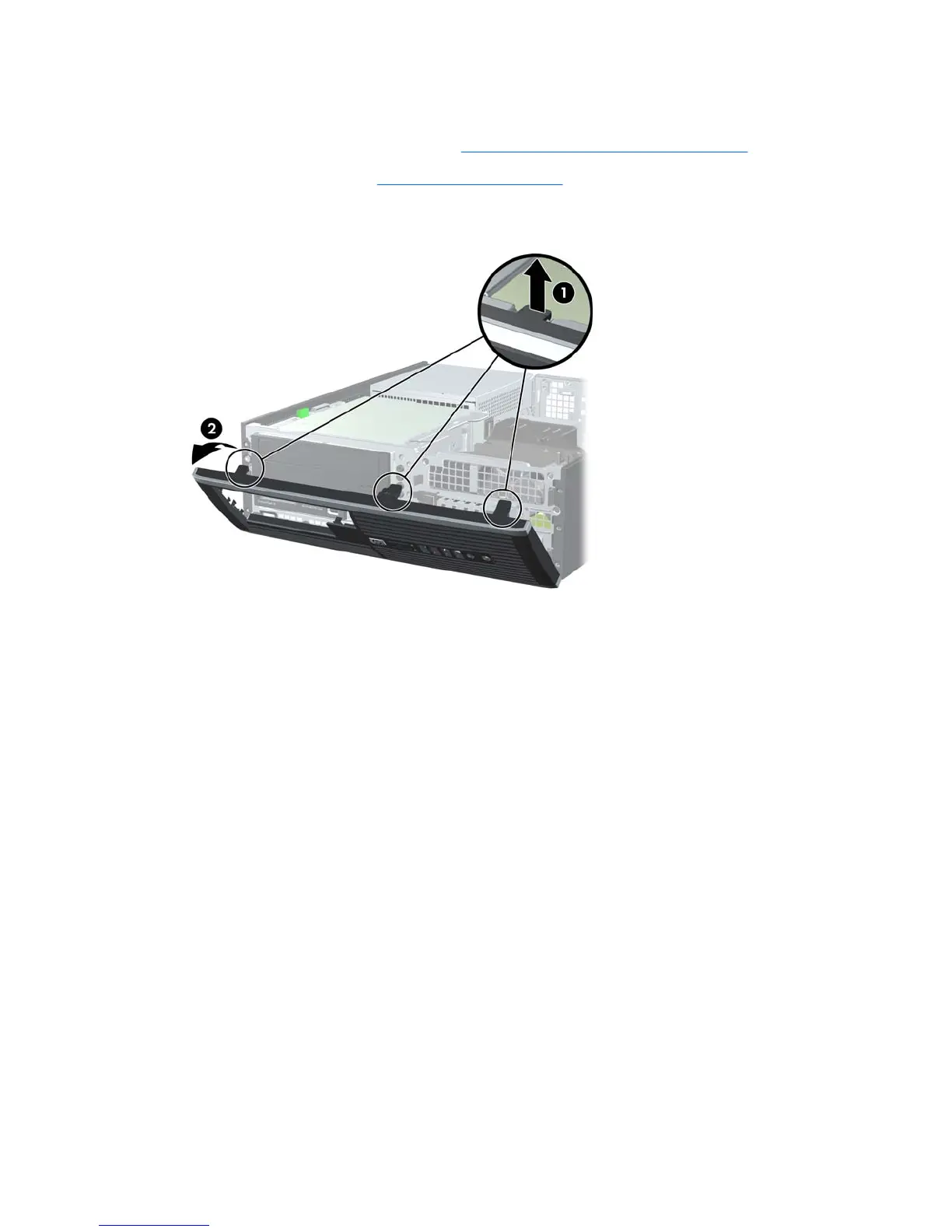

Figure 9-2 Removing the Front Bezel
To install the front bezel, reverse the removal procedure.
124 Chapter 9 Removal and Replacement Procedures Small Form Factor (SFF) Chassis
