Rear Panel Components

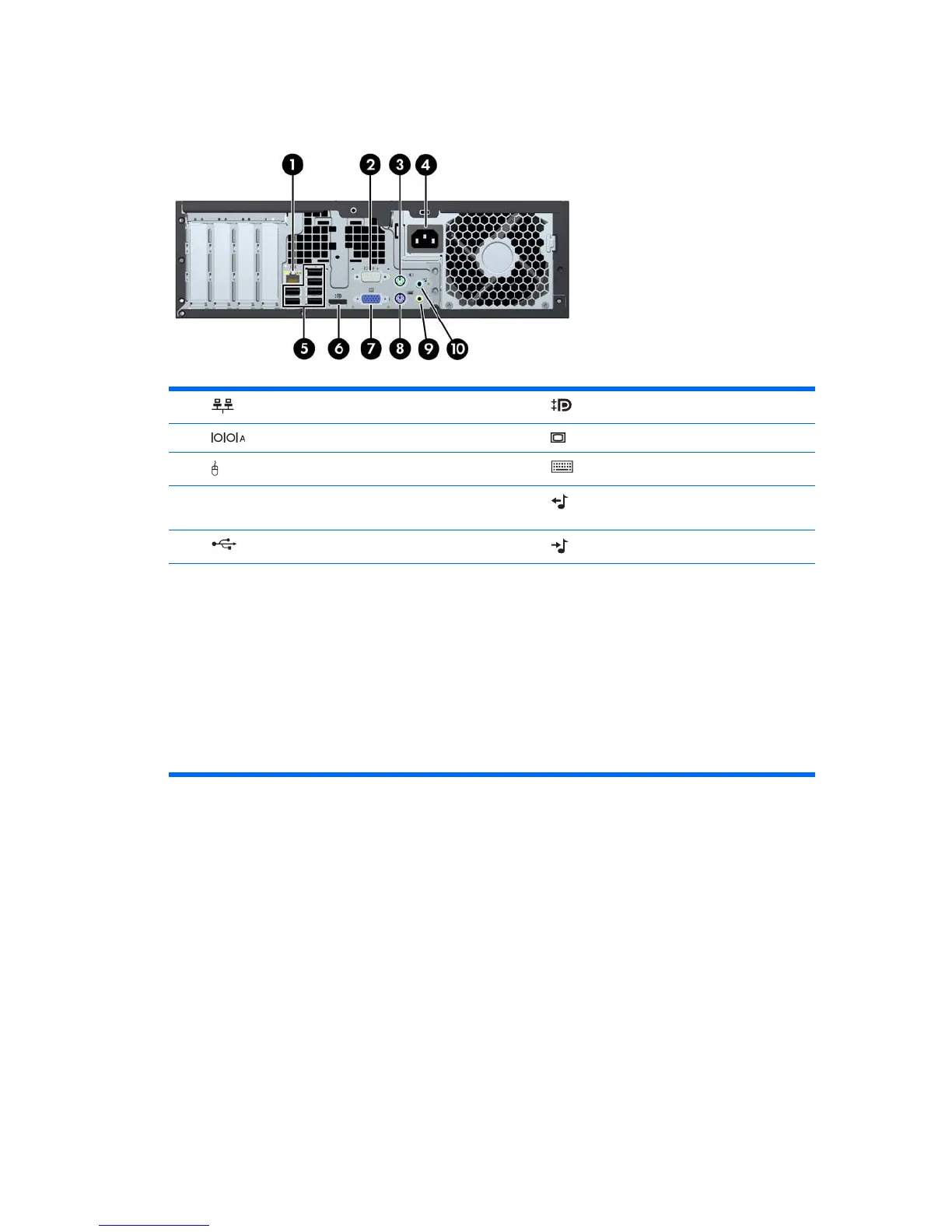

Figure 1-7 Rear Panel Components
Table 1-6 Rear Panel Components
1 RJ-45 Network Connector 6 DisplayPort Monitor Connector
2 Serial Connector 7 VGA Monitor Connector
3 PS/2 Mouse Connector (green) 8 PS/2 Keyboard Connector (purple)
4 Power Cord Connector 9 Line-Out Connector for powered audio
devices (green)
5 Universal Serial Bus (USB) 10 Line-In Audio Connector (blue)
NOTE: Arrangement and number of connectors may vary by model.
An optional second serial port and an optional parallel port are available from HP.
When a device is plugged into the blue Line-In Audio Connector, a dialog box will pop up asking if you want to use
the connector for a line-in device or a microphone. You can reconfigure the connector at any time by double-clicking
the Realtek HD Audio Manager icon in the Windows taskbar.
The monitor connectors on the system board are inactive when a graphics card is installed in the computer.
If a graphics card is installed into the PCI or PCI Express x1 slot, the connectors on the graphics card and the system
board may be used at the same time. Some settings may need to be changed in Computer Setup to use both
connectors. For information about setting the boot VGA controller, refer to the Computer Setup (F10) Utility Guide.
