Baffle
1. Prepare the computer for disassembly (Preparation for Disassembly on page 122).
2. Remove the access panel (
Access Panel on page 123).
3. Remove the cable from the arm that extends from the side of the baffle (1).
4. Lift the baffle straight up out of the chassis (2).

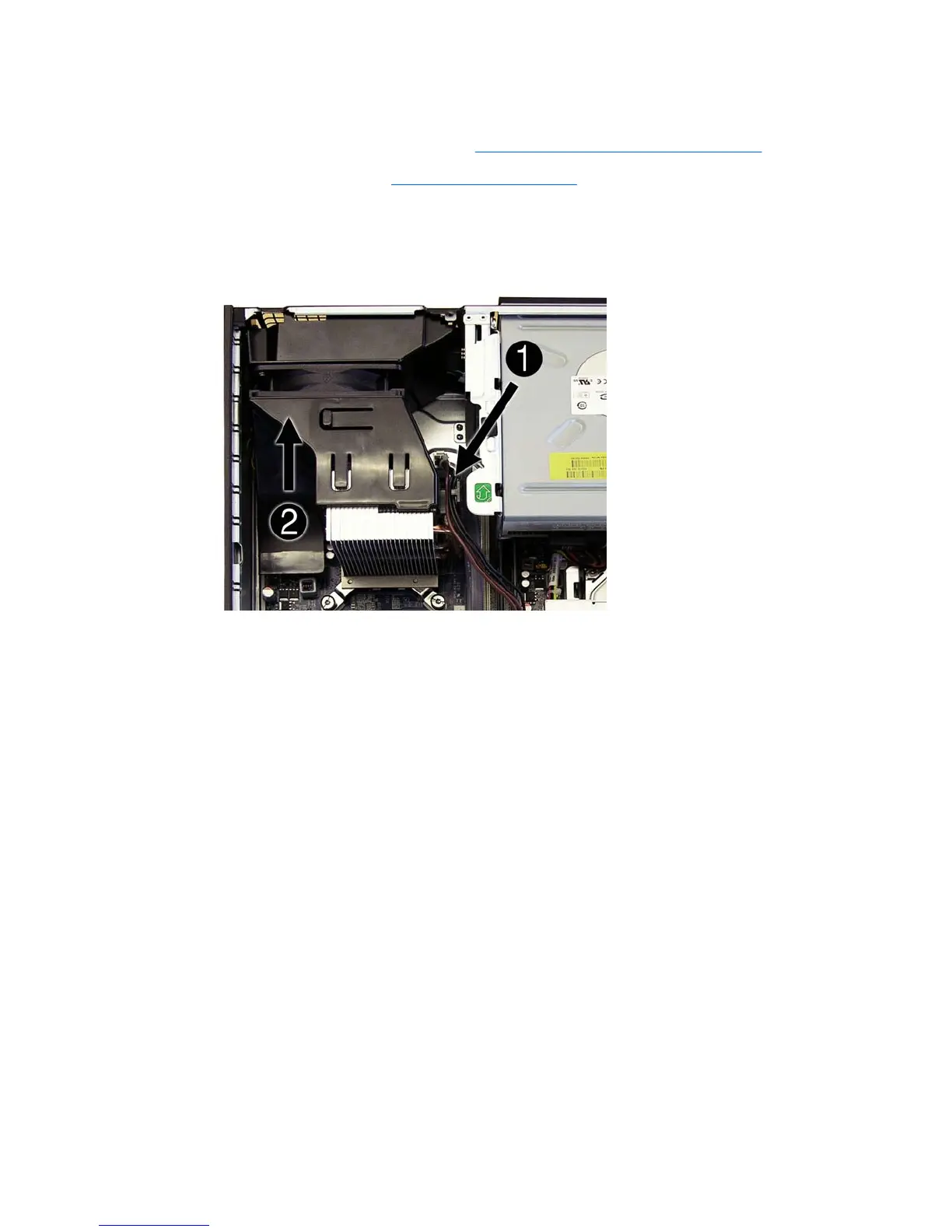

Figure 9-45 Removing the baffle
To install the baffle, reverse the removal procedure.
Baffle 157
