Power Switch/LED Assembly
1. Prepare the computer for disassembly (Preparation for Disassembly on page 76).
2. Remove the access panel (
Access Panel on page 77).
3. Remove the front bezel (
Front Bezel on page 78).
4. Disconnect the cable from the system board (P5, PB/LED).

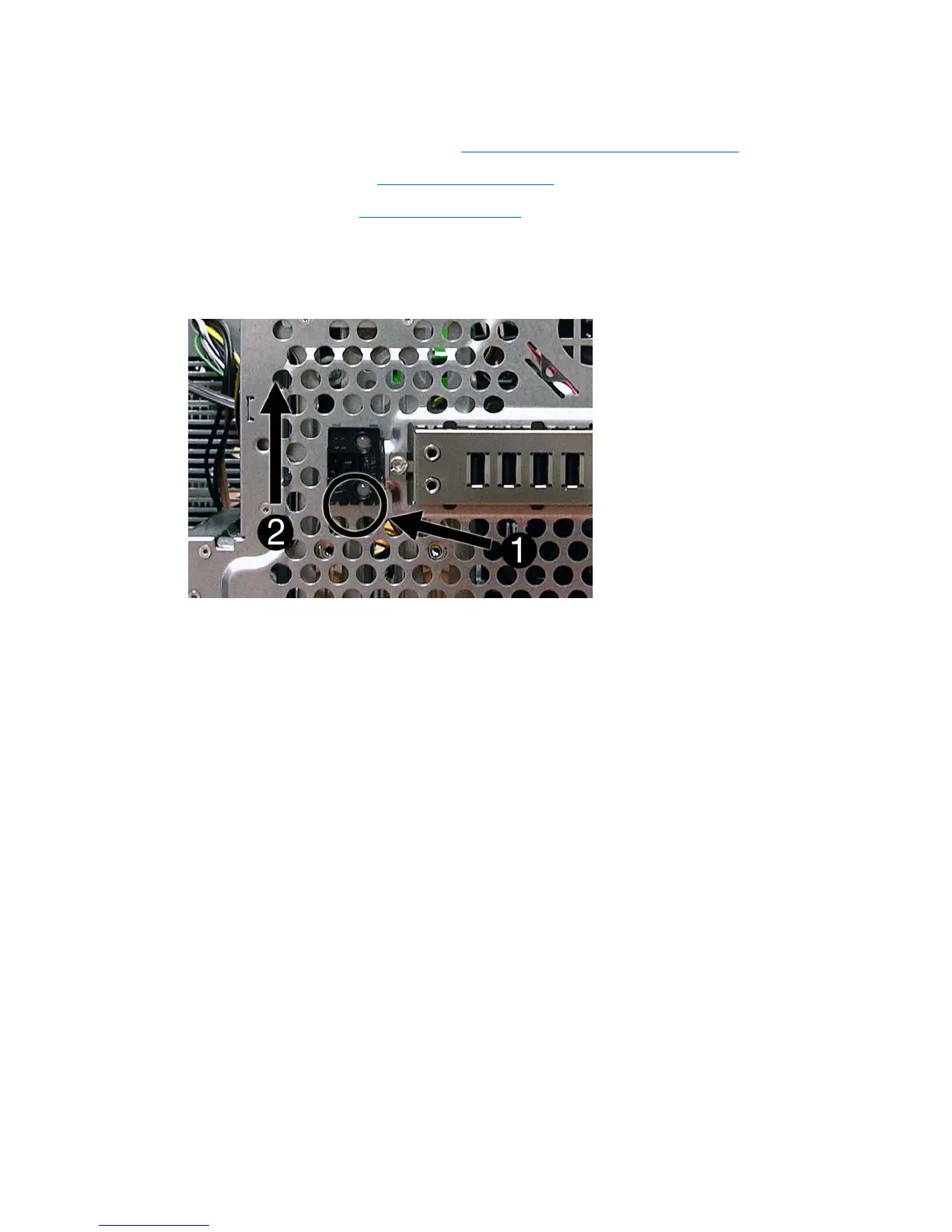

5. With the computer on its side, press on the bottom of the assembly (1) and rotate upward (2) to
disengage it from the chassis.
6. Pull the assembly away from the chassis while threading the cable through the hole in front of the
chassis.
To reinstall the assembly, insert the tabs on the right side of the assembly into the slots in the chassis,
and then rotate the left side of the assembly down until it snaps into place.
108 Chapter 8 Removal and Replacement Procedures Microtower (MT) Chassis
