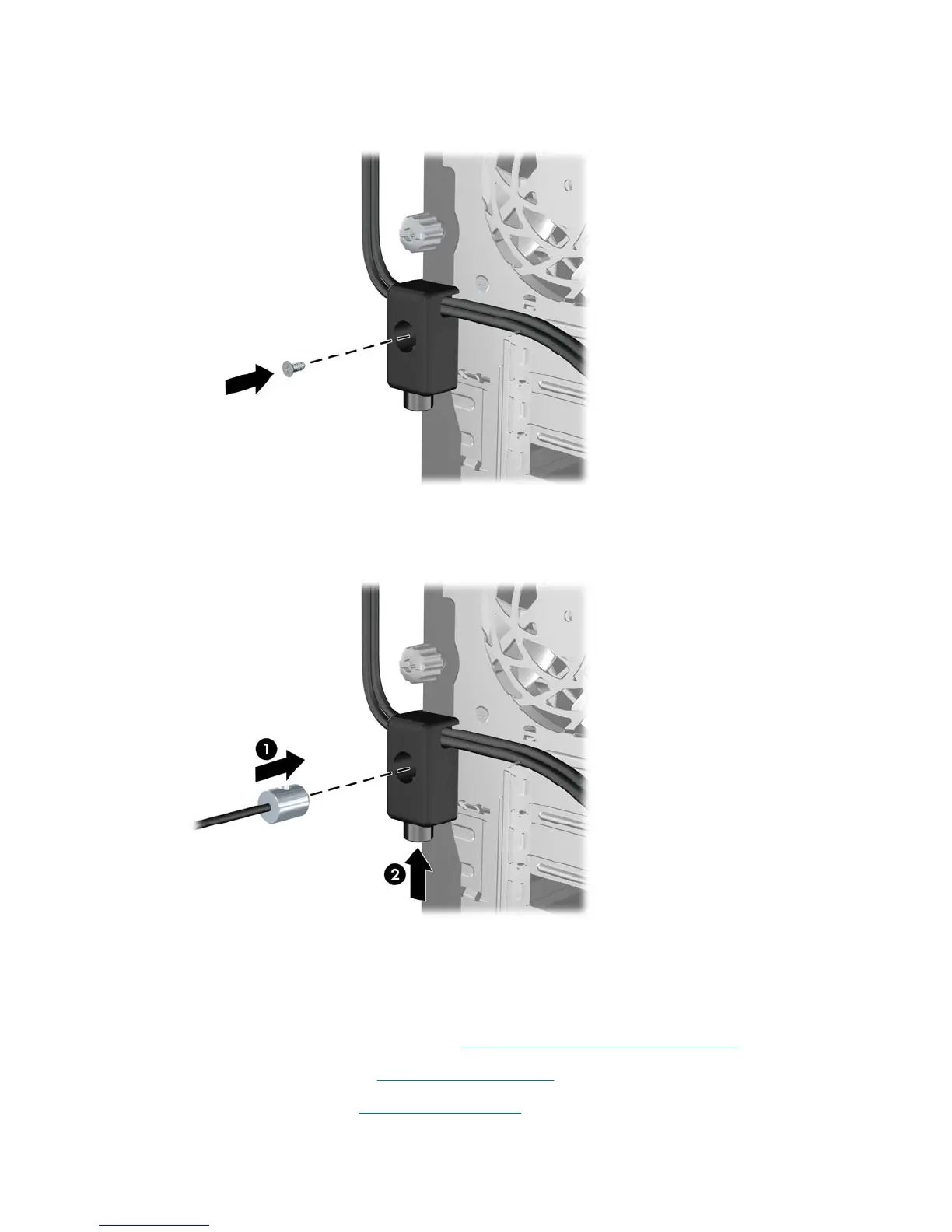

3. Screw the lock to the chassis using the screw provided.
Figure 8-42 Attaching the Lock to the Chassis
4. Insert the plug end of the security cable into the lock (1) and push the button in (2) to engage the
lock. Use the key provided to disengage the lock.
Figure 8-43 Engaging the Lock
Front Bezel Security
The front bezel can be locked in place by installing a security screw provided by HP. To install the
security screw:
1. Prepare the computer for disassembly (
Preparation for Disassembly on page 76).
2. Remove the access panel (
Access Panel on page 77).
3. Remove the front bezel (
Front Bezel on page 78).
120 Chapter 8 Removal and Replacement Procedures Microtower (MT) Chassis
