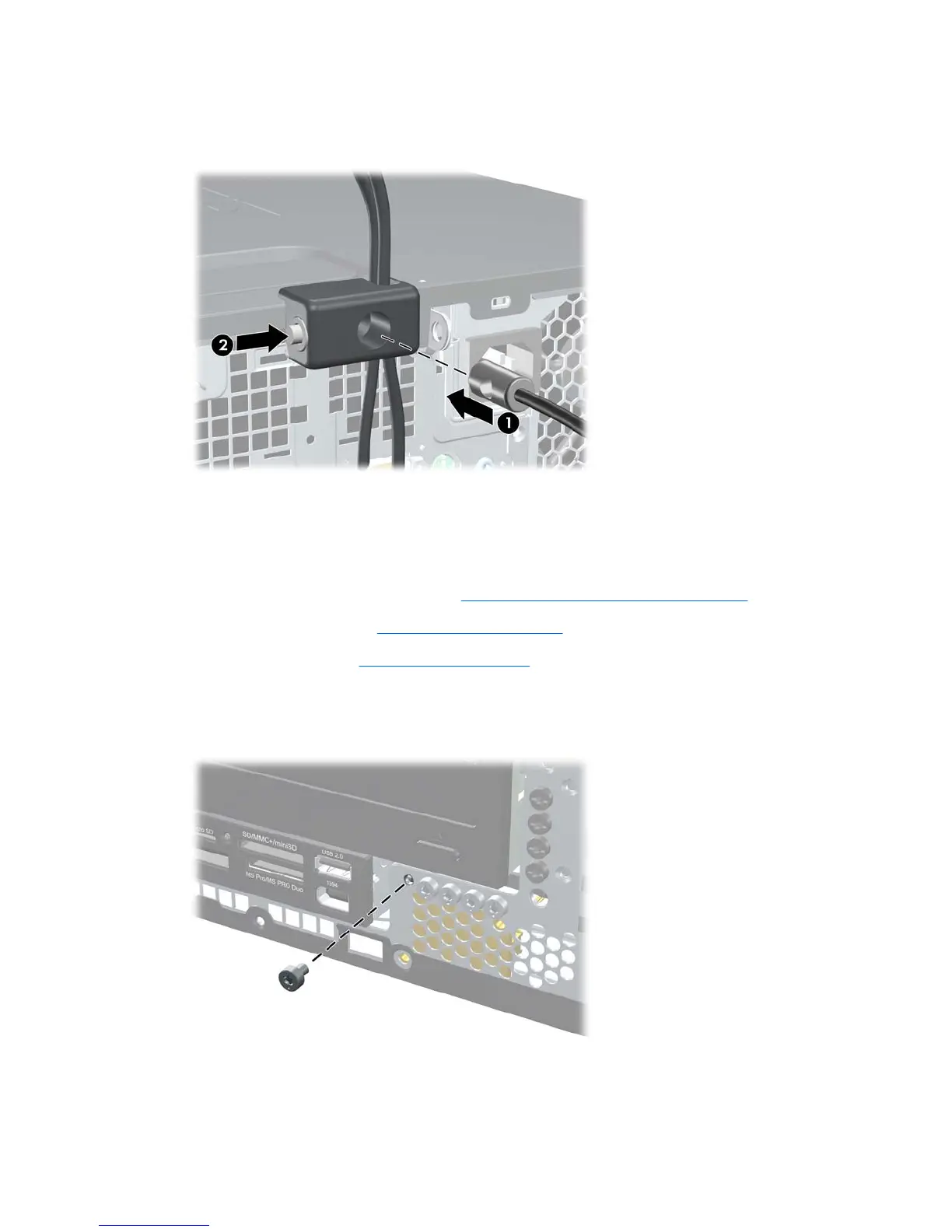

4. Insert the plug end of the security cable into the lock (1) and push the button in (2) to engage the
lock. Use the key provided to disengage the lock.
Figure 9-63 Engaging the Lock
Front Bezel Security
The front bezel can be locked in place by installing a security screw provided by HP. To install the
security screw:
1. Prepare the computer for disassembly (
Preparation for Disassembly on page 122).
2. Remove the access panel (
Access Panel on page 123).
3. Remove the front bezel (
Front Bezel on page 124).
4. Remove one of the five silver 6-32 standard screws located on the front of the chassis behind the
bezel.
Figure 9-64 Retrieving the Front Bezel Security Screw
5. Replace the front bezel.
172 Chapter 9 Removal and Replacement Procedures Small Form Factor (SFF) Chassis
