b. If you are removing a media card reader, disconnect the USB cable from the system board.
If the media card reader has a 1394 port, disconnect the 1394 cable from the PCI card.

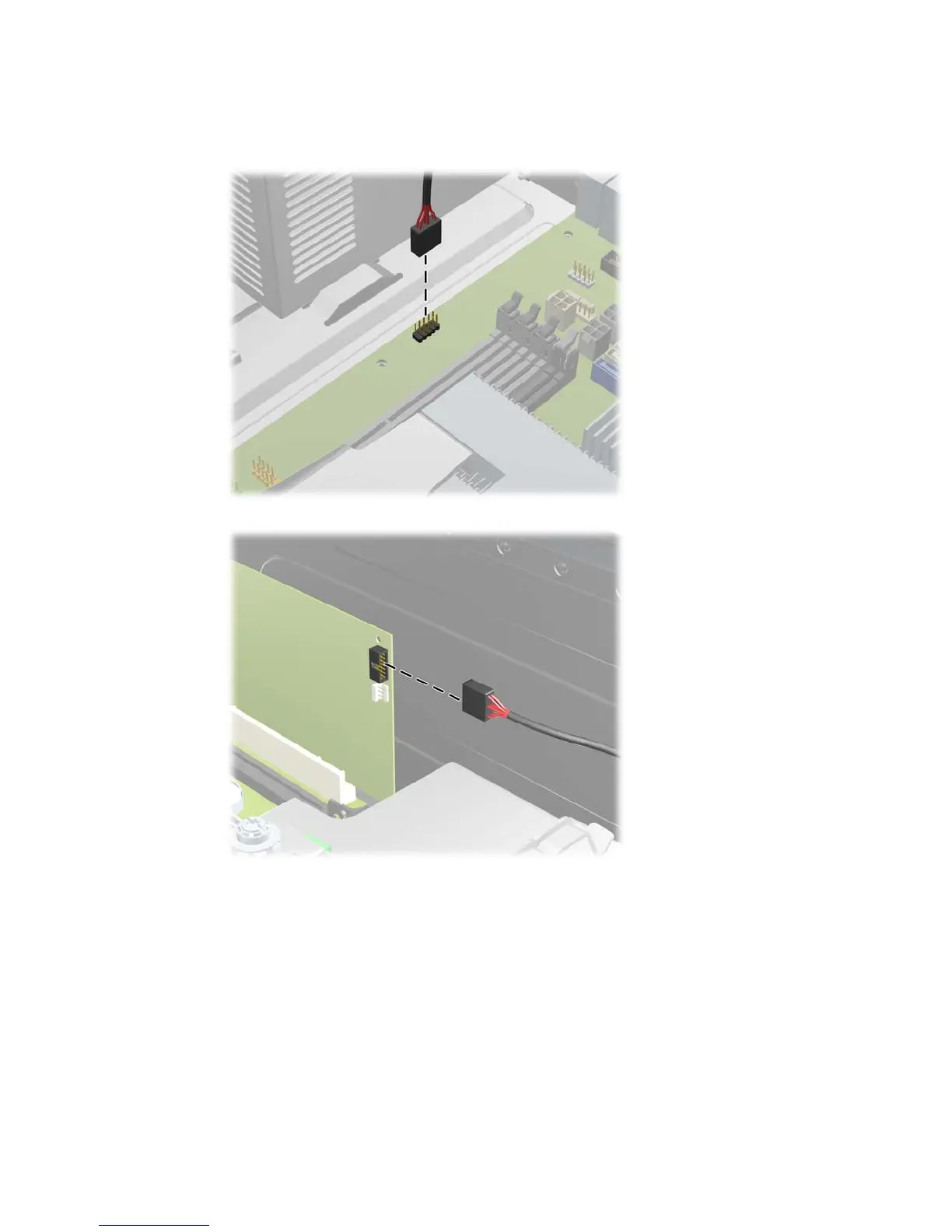

Figure 8-17 Disconnecting the Media Card Reader USB Cable
Figure 8-18 Disconnecting the Media Card Reader 1394 Cable
94 Chapter 8 Removal and Replacement Procedures Microtower (MT) Chassis
