2. Remove the screw from the rear of the carrier (1) and slide the top cover off the carrier (2).

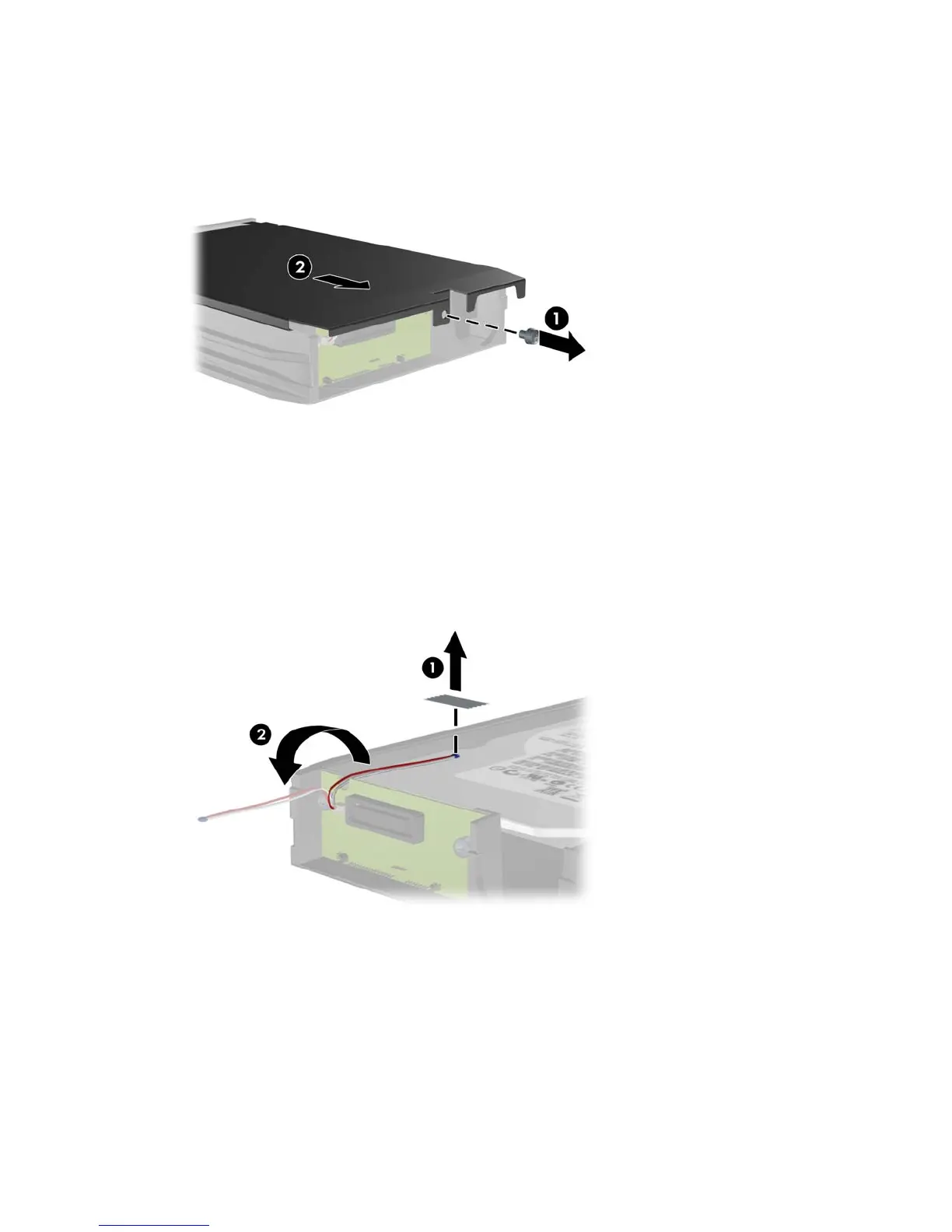

Figure 8-30 Removing the Carrier Cover
3. Remove the adhesive strip that secures the thermal sensor to the top of the hard drive (1) and
move the thermal sensor away from the carrier (2).
Figure 8-31 Removing the Thermal Sensor
102 Chapter 8 Removal and Replacement Procedures Microtower (MT) Chassis
