HP Compaq 6000 Pro MT

4. Rotate the power supply to its upright position. The hard drive is located beneath the power supply.

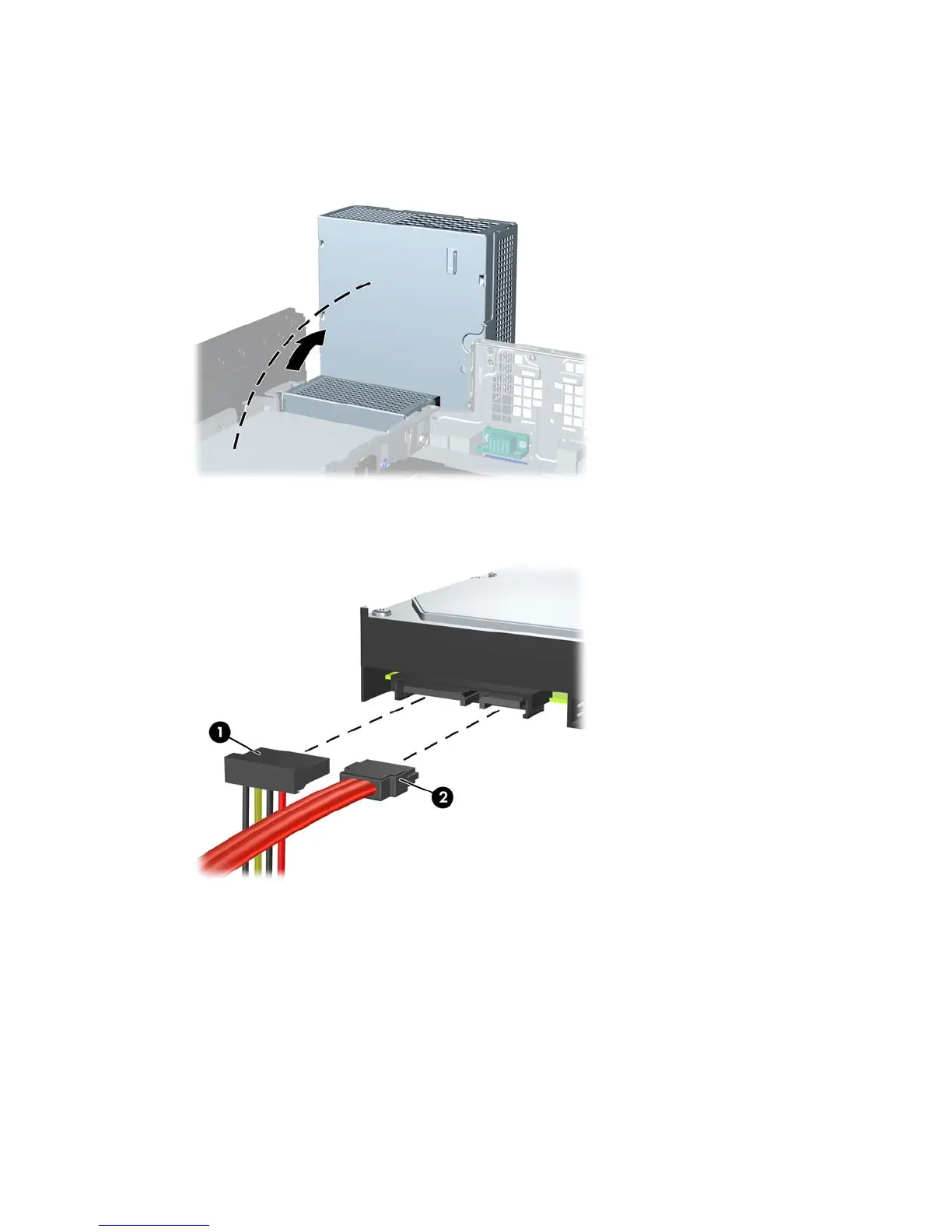

Figure 9-32 Raising the Power Supply
5. Disconnect the power cable (1) and data cable (2) from the back of the hard drive.
Figure 9-33 Disconnecting the Hard Drive Power Cable and Data Cable
150 Chapter 9 Removal and Replacement Procedures Small Form Factor (SFF) Chassis
