Fan Shroud
1. Prepare the computer for disassembly (Preparation for Disassembly on page 60).

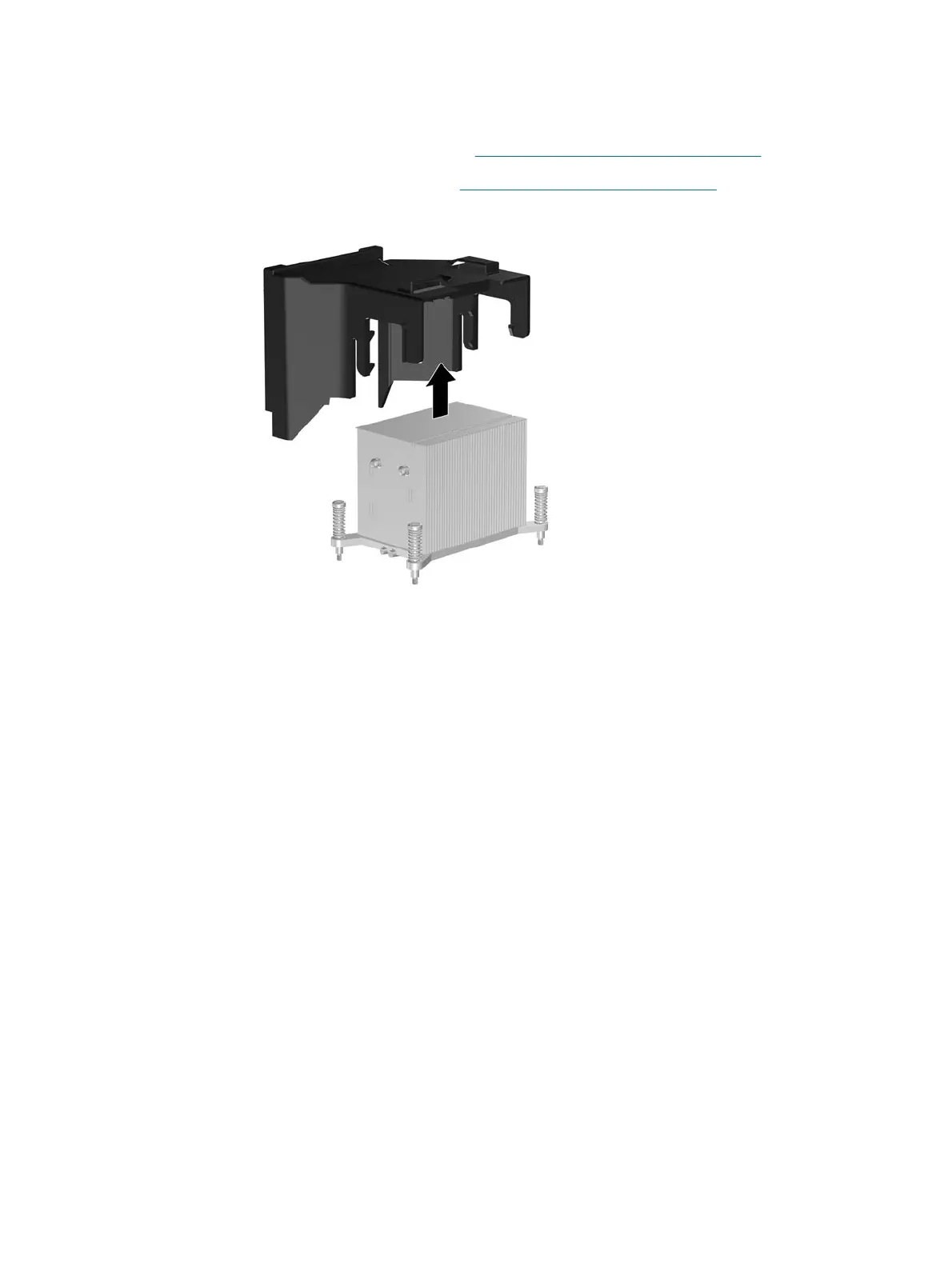

2. Remove the computer access panel (
Computer Access Panel on page 64).
3. Pull up on all four shroud tabs simultaneously and slide the shroud from the heatsink.
To reinstall the fan shroud, reverse the removal procedure.
Fan Shroud 91
