Front Bezel
1. Prepare the computer for disassembly (Preparation for Disassembly on page 107).
2. Remove the access panel (
Computer Access Panel on page 113).

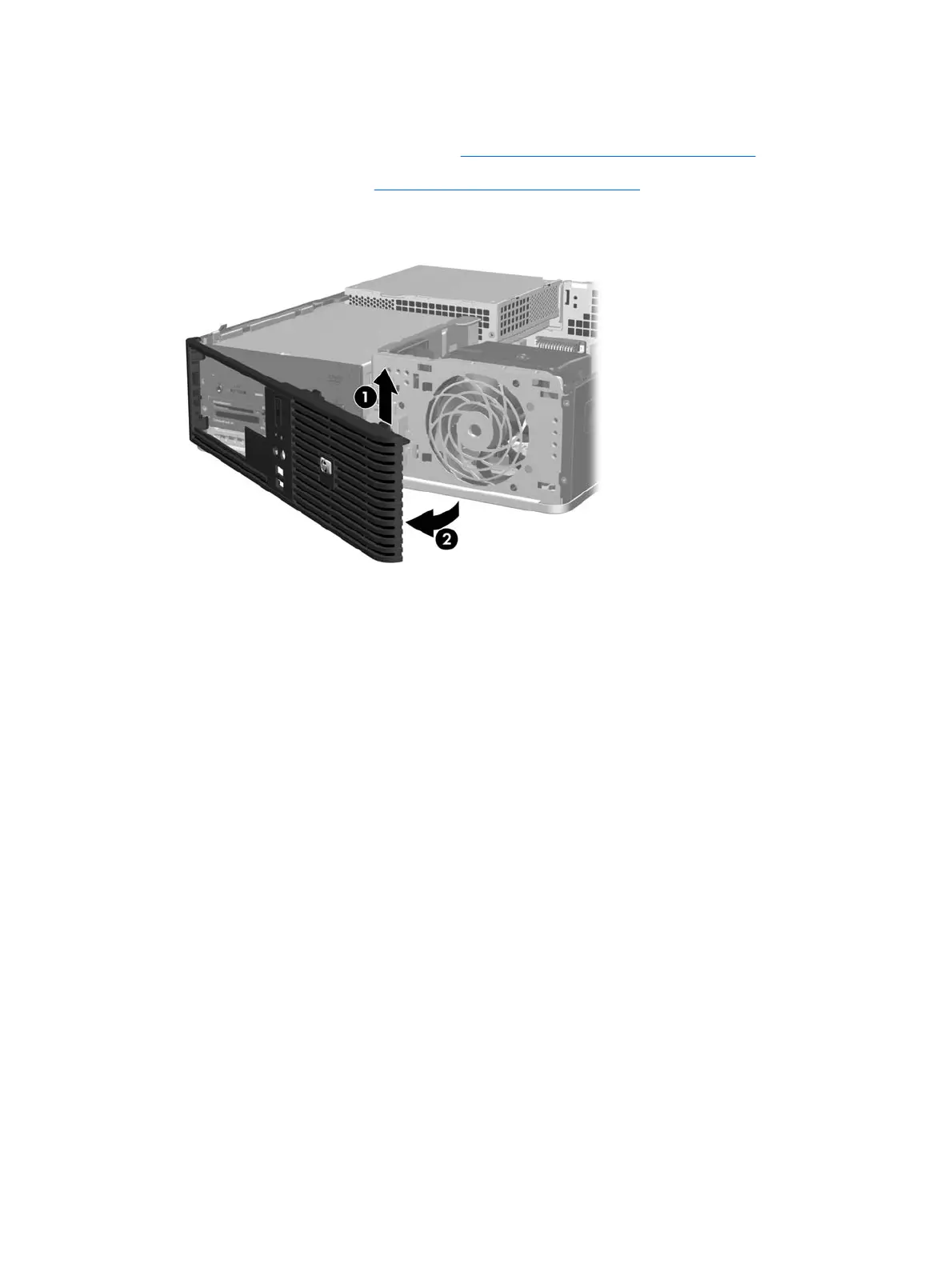

3. Lift up the green latch behind the upper right side of the bezel (1), pull the right side of the bezel
off the chassis (2), and then remove the bezel from the chassis.
To replace the front bezel, reverse the removal procedures.
114 Chapter 8 Removal and Replacement Procedures Small Form Factor (SFF) Chassis
