Hood Sensor
1. Prepare the computer for disassembly (Preparation for Disassembly on page 60).
2. Remove the access panel (
Computer Access Panel on page 64).
3. Disconnect the hood sensor cable from the system board.

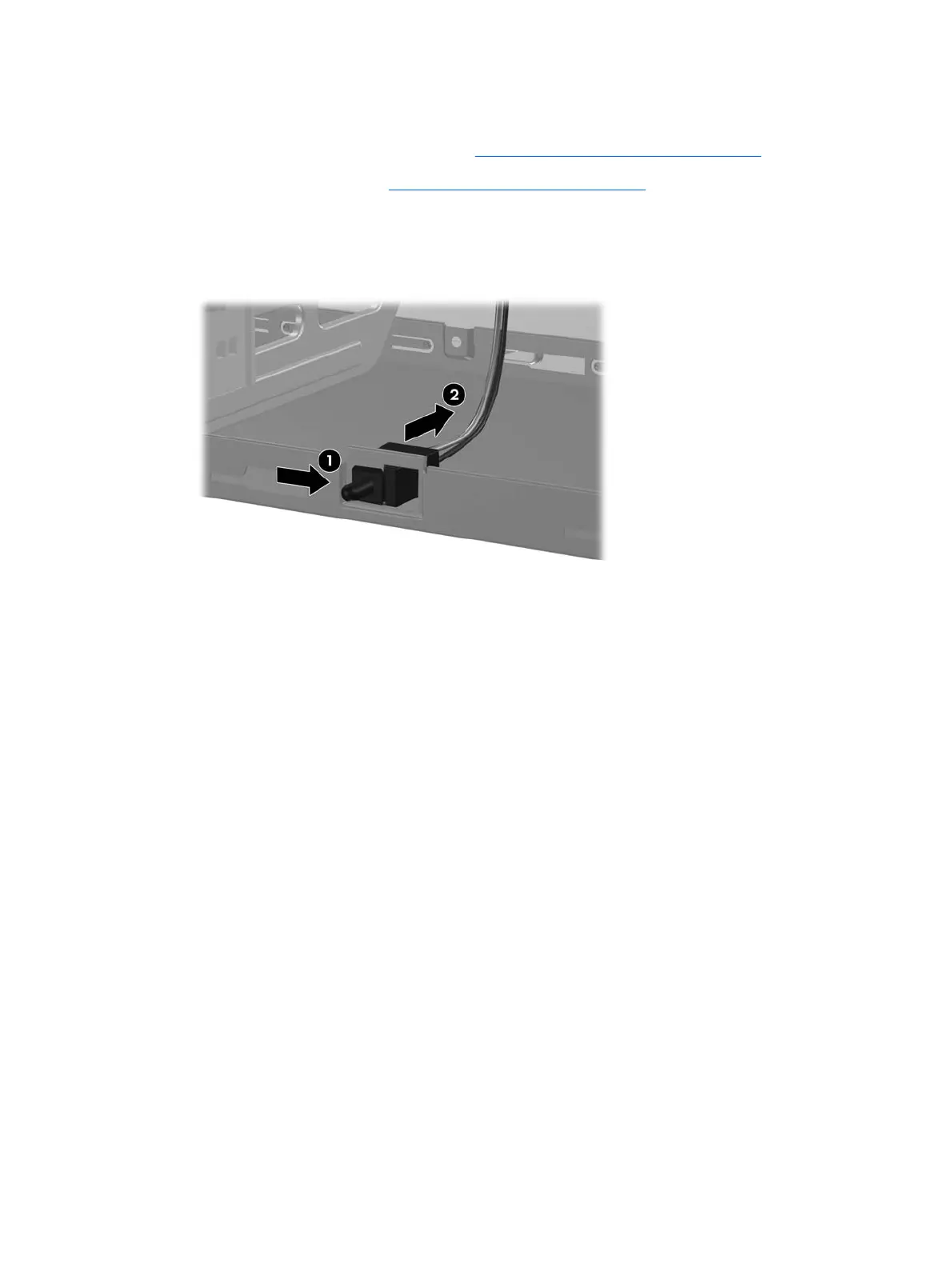

4. Slide the hood sensor switch toward the front of the computer (1), and then pull it back through the
slot (2).
To install the hood sensor, reverse the removal procedure.
Hood Sensor 63
