Computer Access Panel
1. Prepare the computer for disassembly (Preparation for Disassembly on page 107).

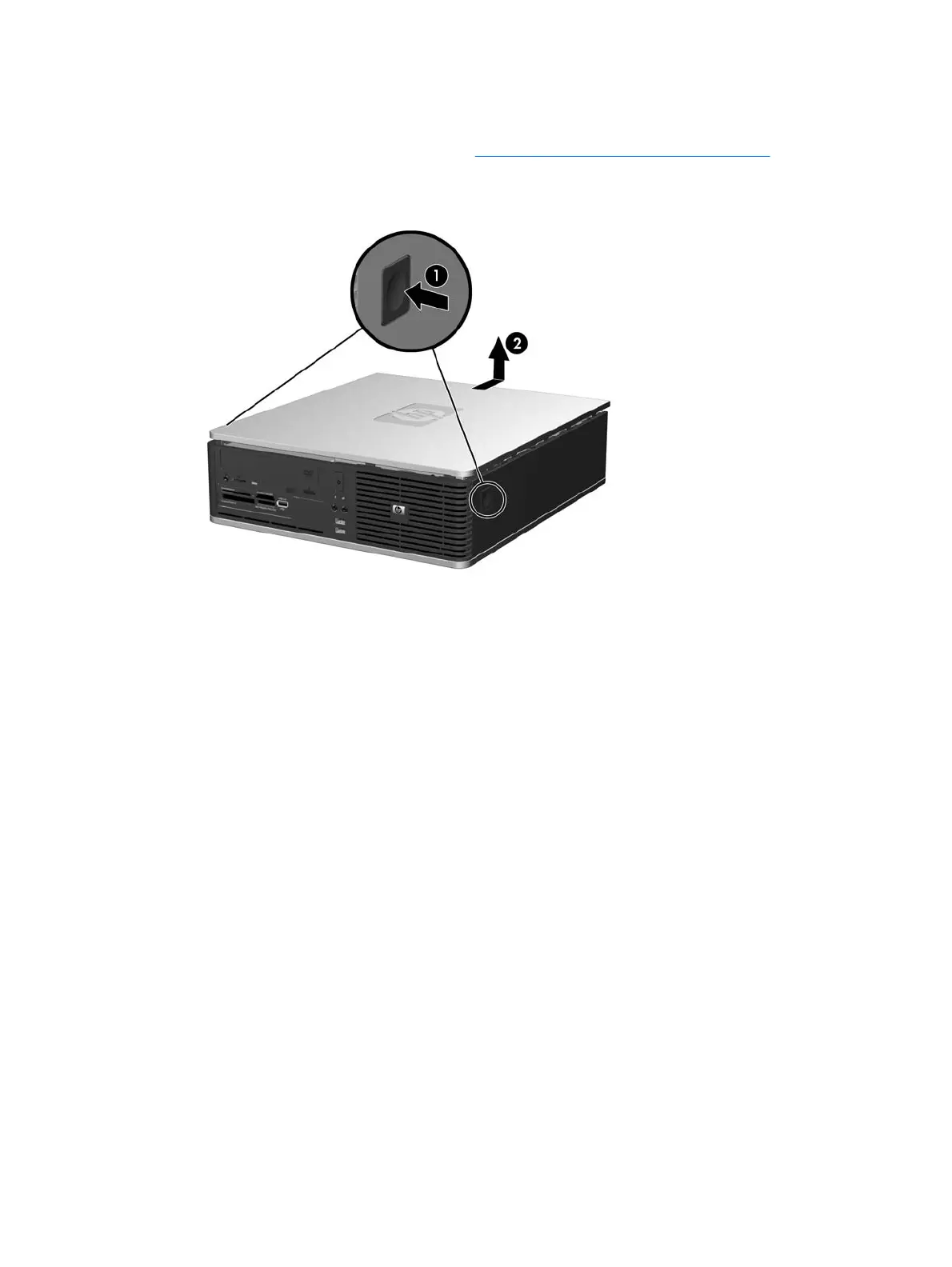

2. Press the buttons on the left and right sides of the computer (1), slide the access panel back until
it stops, and then lift it up and off the chassis (2).
To install the access panel, reverse the removal procedure.
Computer Access Panel 113
