Computer Access Panel
1. Prepare the computer for disassembly (Preparation for Disassembly on page 60).
CAUTION: Before removing the computer access panel, ensure that the computer is turned off
and that the power cord is disconnected from the electrical outlet.

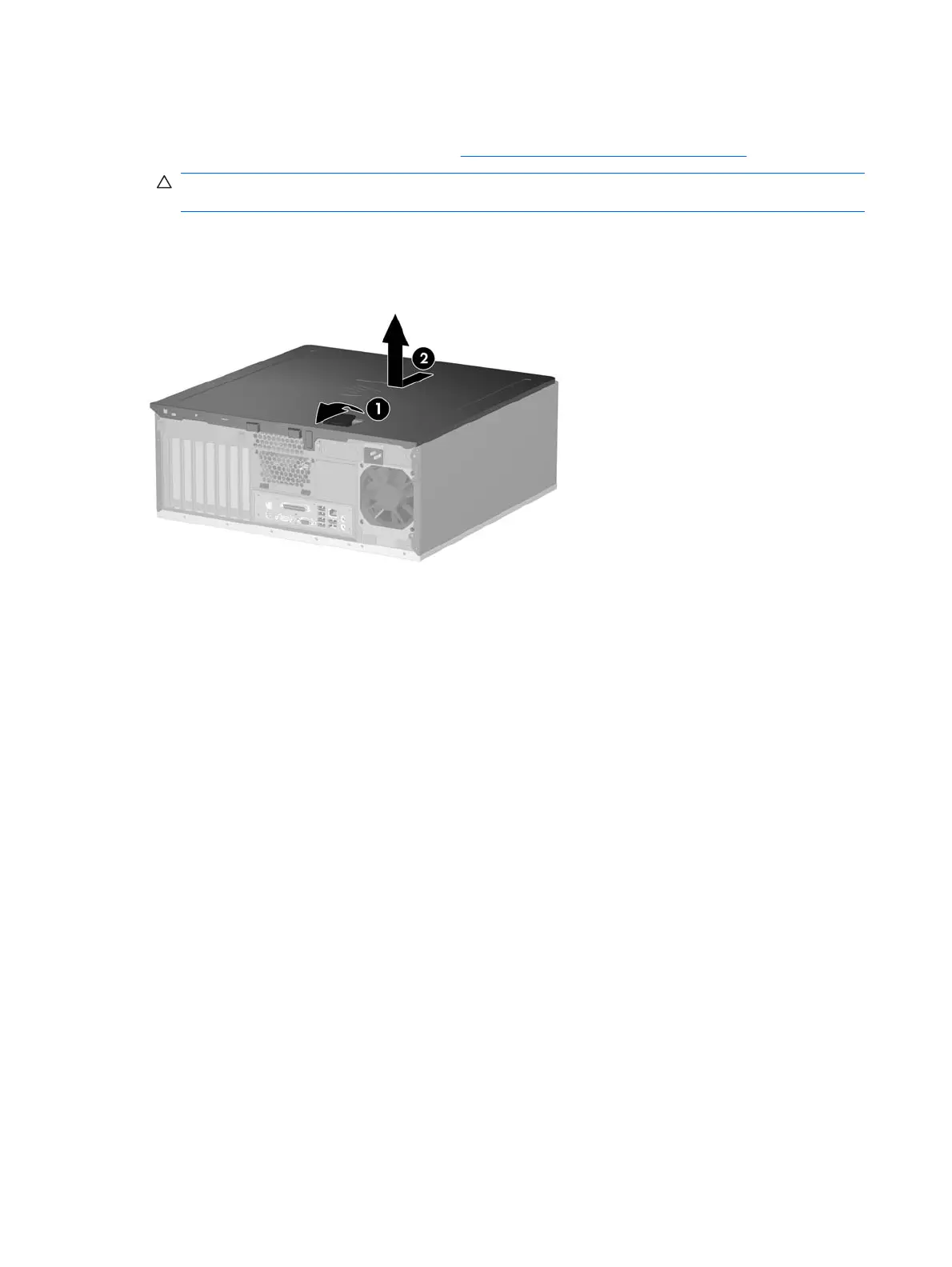

2. Lift up on the access panel handle (1), slide the access panel back about 1.25 cm (1/2 inch), and
then lift it up and off the unit (2).
To install the access panel, reverse the removal procedure.
64 Chapter 7 Removal and Replacement Procedures Convertible Minitower (CMT) Chassis
