Front Bezel
1. Prepare the computer for disassembly (Preparation for Disassembly on page 60).
2. Remove the computer access panel (
Computer Access Panel on page 64).

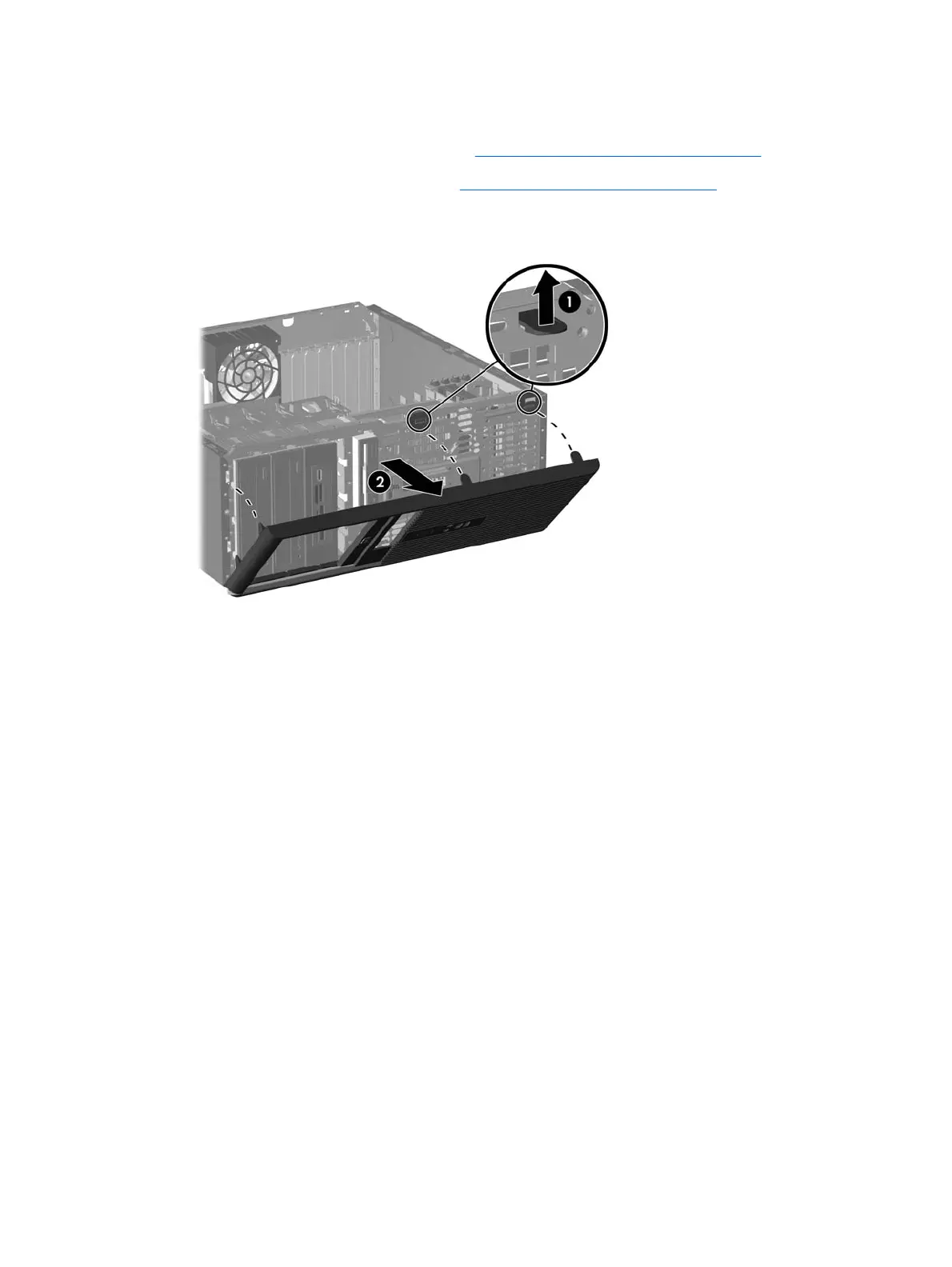

3. Push up on the two release tabs (1), and then rotate the front bezel away from the chassis to release
it (2).
To reinstall the front bezel, reverse the removal procedure.
Front Bezel 65
