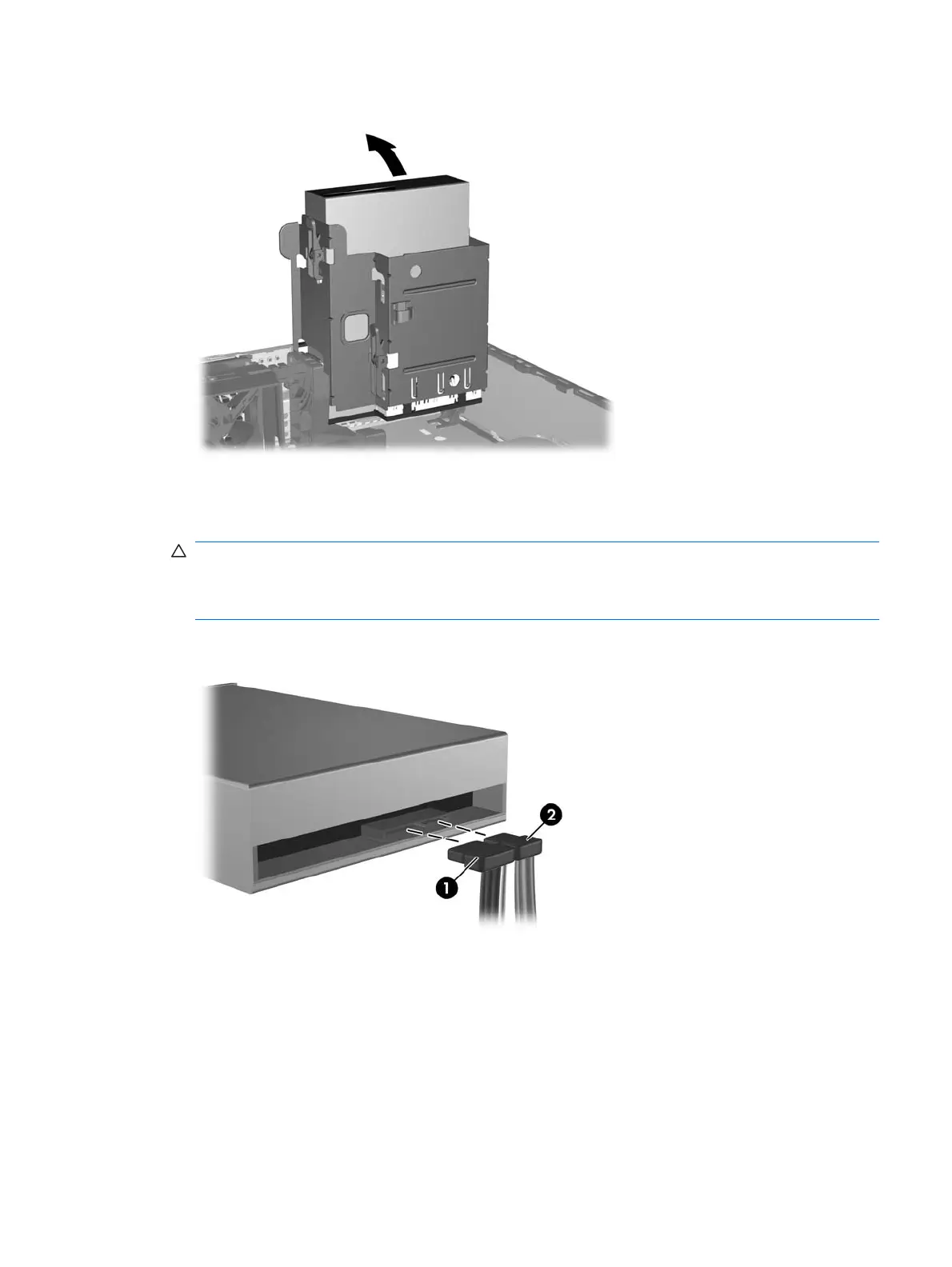

6. Rotate the drive cage to its upright position.
7. Connect the SATA data cable to the white system board connector labeled SATA1.
8. Route the data cable through the cable guides.
CAUTION: There are two cable guides that keep the data cable from being pinched by the drive
cage when raising or lowering it. One is located on the bottom side of the drive cage. The other is
located on the chassis frame under the drive cage. Route the data cable through these guides
before connecting it to the optical drive.
9. Connect the power cable (1) and data cable (2) to the rear of the optical drive.
Drives 133
