12. Remove the cables from the metal clips built into the computer.
13. Disconnect the hard drive cables or the optical drive cables from the system board.
NOTE: Be careful not to damage the cable when disconnecting it from the board. Do not pull on
the wires.
14. Remove the connector from the computer.

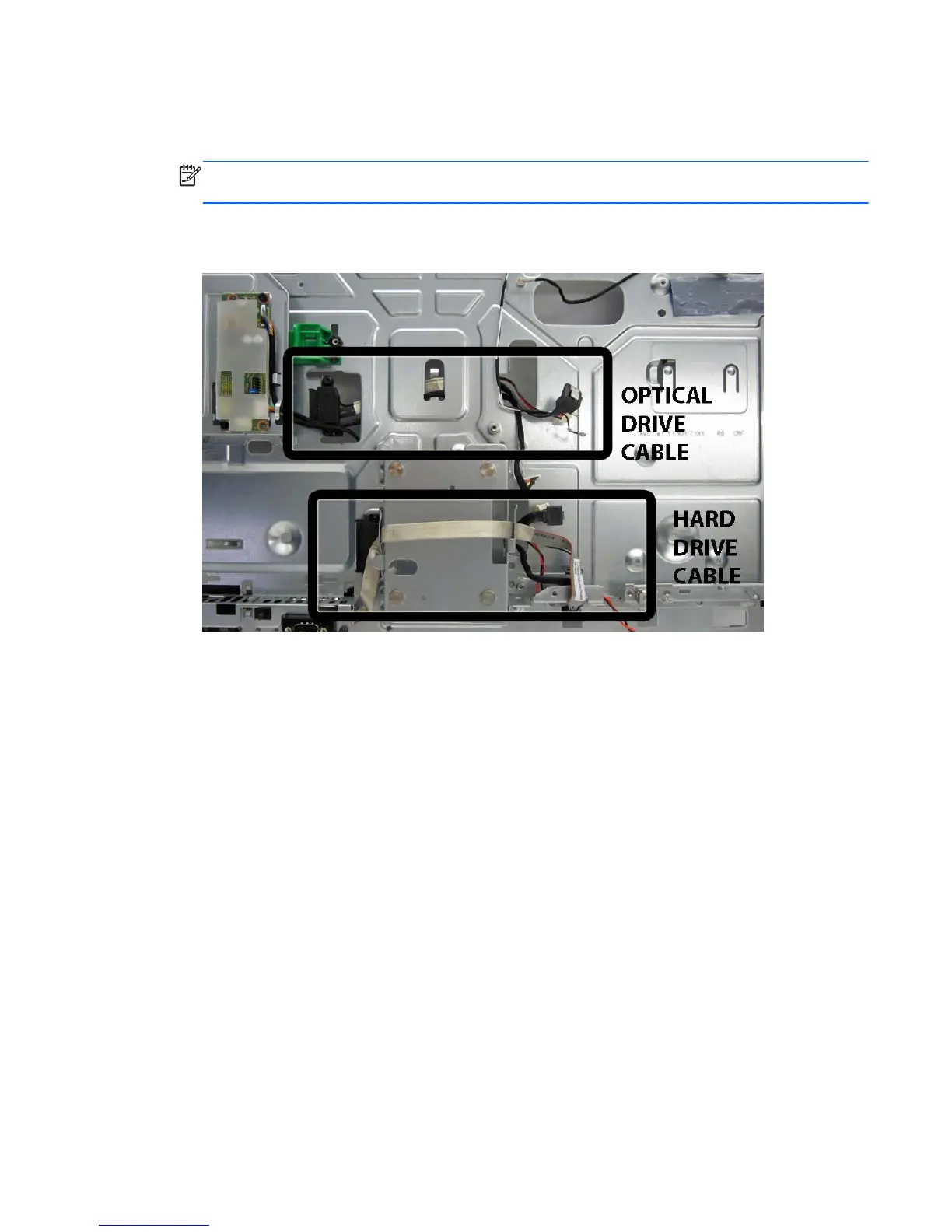

Figure 7-89 Removing the hard drive or optical drive connectors
To install the hard drive or optical drive connector, reverse the removal procedures.
Hard drive and optical drive cables and connectors
121
