Webcam module
On products that ship with a webcam module, the module is located at the top of the computer beneath
the top panel. It is secured with two silver Phillips screws and has one connector.
The webcam module is optional.

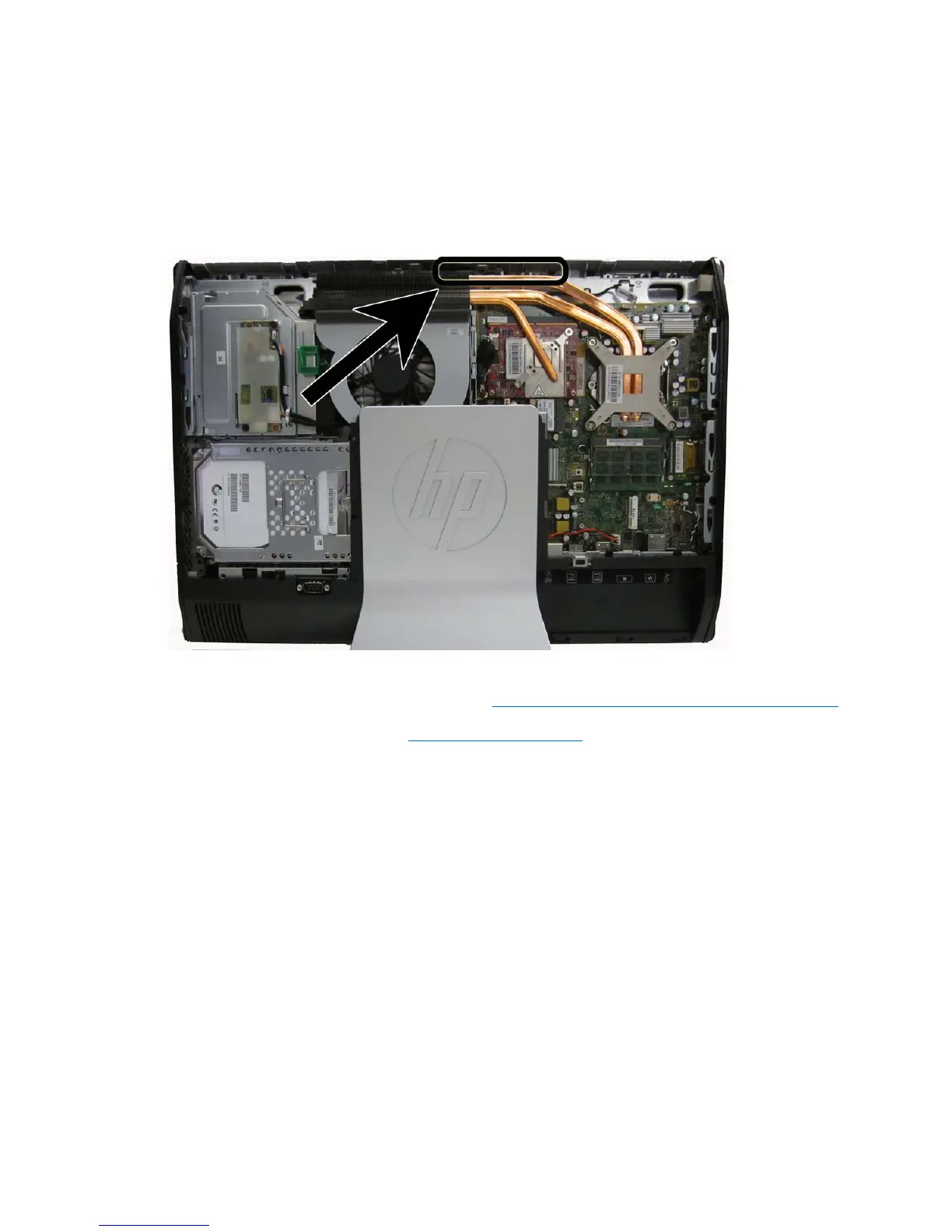

Figure 7-36 Webcam module location
To remove the webcam module:
1. Prepare the computer for disassembly (see
Preparing to disassemble the computer on page 40).
2. Remove the access panel (see
Access panel on page 45).
Webcam module
67
