Processor
1. Prepare the computer for disassembly (see Preparing to disassemble the computer on page 40).
2. Remove the access panel (see
Access panel on page 45).
3. Remove the graphics heat sink (see
Graphics heat sink on page 75).
4. Remove the processor heat sink (see
Processor heat sink – model 6300 on page 76).
5. Rotate the locking lever to its full open position (1).
6. Raise and rotate the microprocessor retainer to its fully open position (2).
7. Carefully lift the processor from the socket (3).
CAUTION: Do NOT handle the pins in the processor socket. These pins are very fragile and
handling them could cause irreparable damage. Once pins are damaged it may be necessary to
replace the system board.
The heat sink must be installed within 24 hours of installing the processor to prevent damage to
the processor’s solder connections.

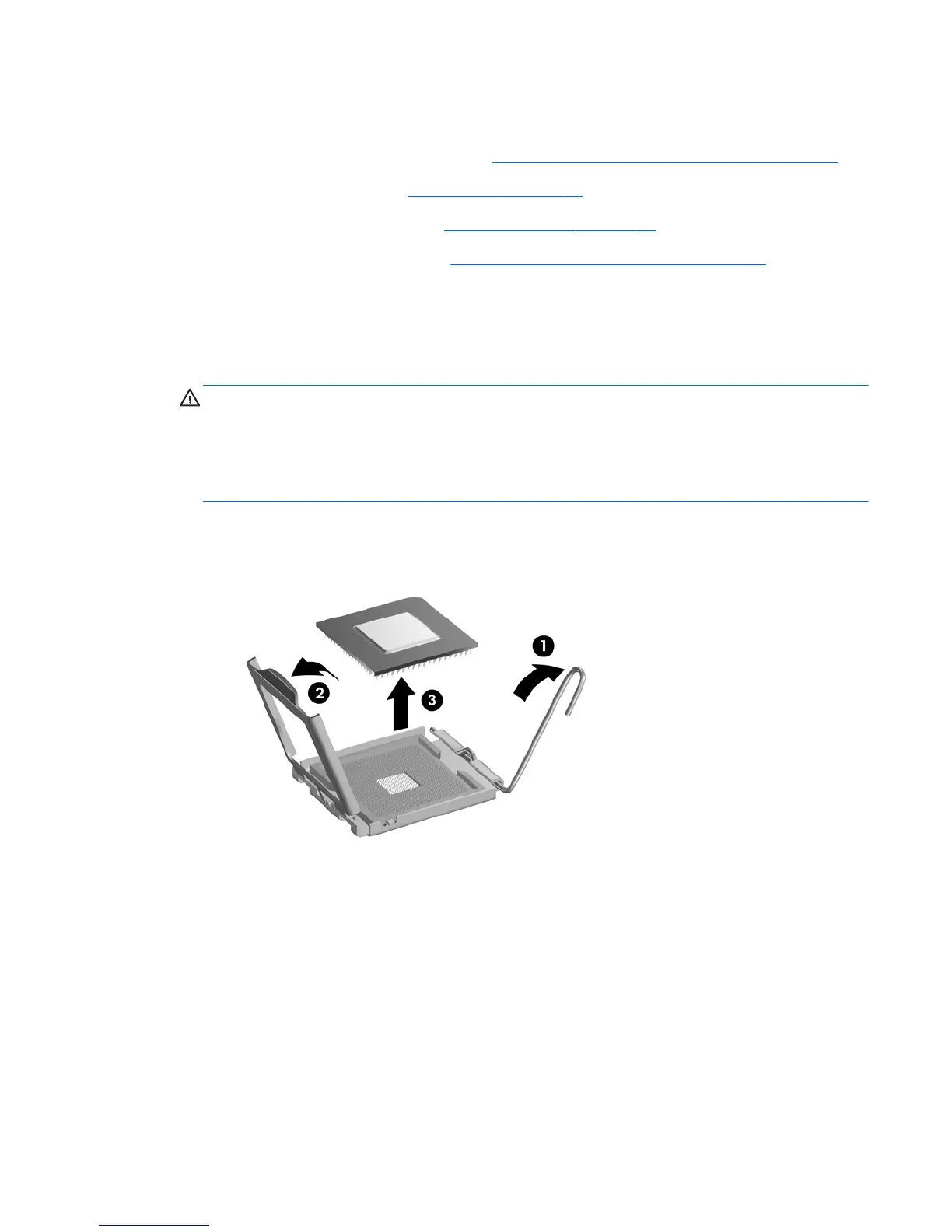

Figure 7-49 Removing the processor
To install a new processor:
1. Place the processor in its socket and close the retainer. Make sure the slot in the processor fits into
the post on the socket.
2. Secure the locking lever. If reusing the existing heat sink, go to step 3. If using a new heat sink, go
to step 6.
Processor
79
