Metal plate
The metal plate is located under the stand.

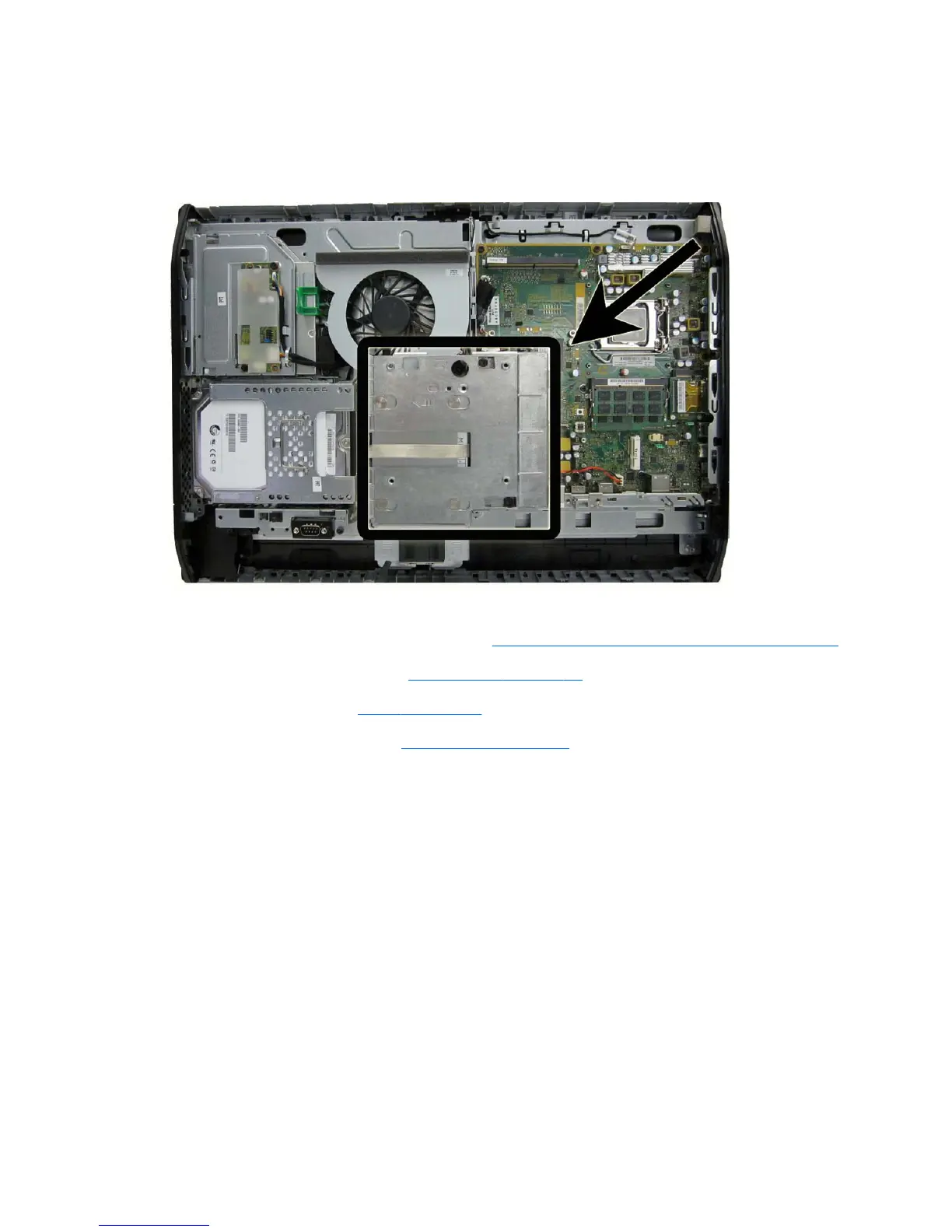

Figure 7-14 Metal plate location
To remove the metal plate:
1. Prepare the computer for disassembly (see
Preparing to disassemble the computer on page 40).
2. Remove the access panel (see
Access panel on page 45).
3. Remove the stand (see
Stand on page 48).
4. Remove the lower panel (see
Lower panel on page 50).
5. Remove the two Torx screws (1) securing the metal plate to the chassis.
Metal plate
