Hard drive and optical drive cables and connectors
The hard drive and optical drive connectors are located near the middle of the computer, partially
under the main display bracket. Each connector is secured with two Torx screws and has two cables
that connect to the system board.
The optical drive connector cables are longer than the hard drive connector cables.

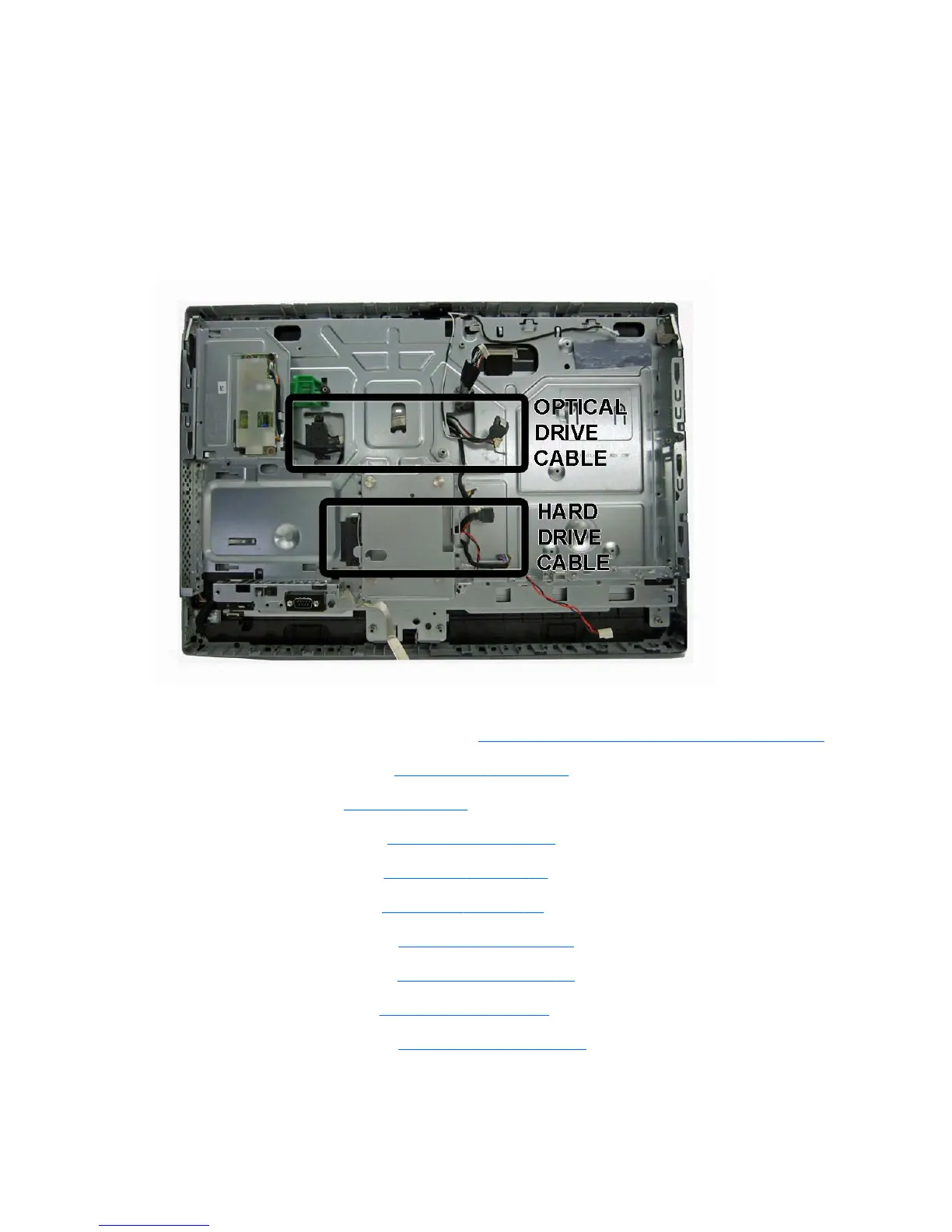

Figure 7-88 Hard drive cable and optical drive cable location
To remove the hard drive or optical drive connector:
1. Prepare the computer for disassembly (see
Preparing to disassemble the computer on page 40).
2. Remove the access panel (see
Access panel on page 45).
3. Remove the stand (see
Stand on page 48).
4. Remove the lower panel (see
Lower panel on page 50).
5. Remove the side panels (see
Side panels on page 88).
6. Remove the metal plate (see
Metal plate on page 51).
7. Remove the power supply (see
Power supply on page 90).
8. Remove the system board (see
System board on page 93).
9. Remove the front bezel (see
Front bezel on page 105).
10. Remove the display panel (see
Display panel on page 111).
11. Remove two Torx screws that secure the hard drive connector or the optical drive connector to the
computer.
120 Chapter 7 Removal and Replacement Procedures All-in One (AIO) Chassis
